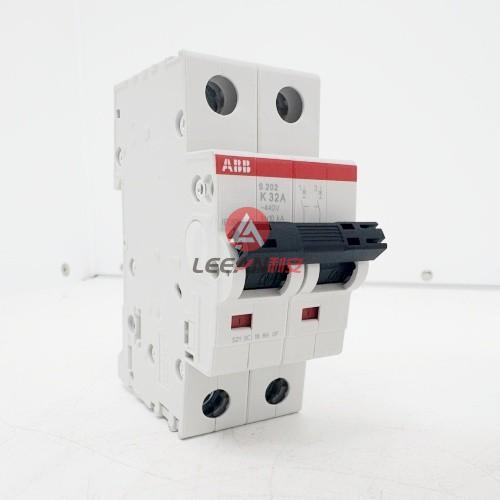

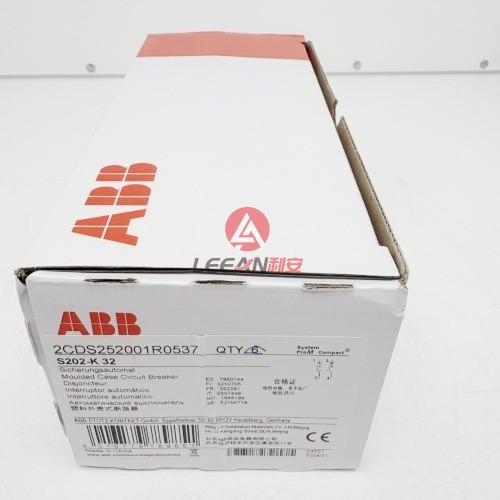

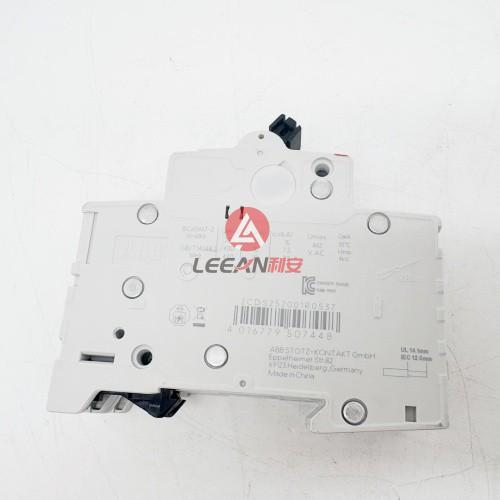

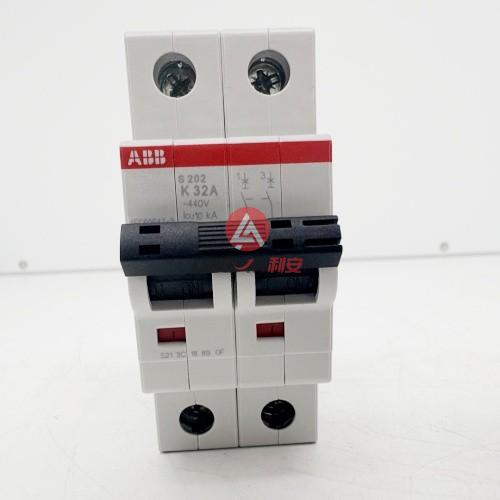

ABB Moulded Case Circuit Breakers S202-K32 Miniature Circuit Breaker 2CDS252001R0537 New
  1. ABB Moulded Case Circuit Breakers S202-K32 Miniature Circuit Breaker 2CDS252001R0537 New
  2. ABB Moulded Case Circuit Breakers S202-K32 Miniature Circuit Breaker 2CDS252001R0537 New
  3. ABB Moulded Case Circuit Breakers S202-K32 Miniature Circuit Breaker 2CDS252001R0537 New
  4. ABB Moulded Case Circuit Breakers S202-K32 Miniature Circuit Breaker 2CDS252001R0537 New
  5. ABB Moulded Case Circuit Breakers S202-K32 Miniature Circuit Breaker 2CDS252001R0537 New

ABB Moulded Case Circuit Breakers S202-K32 Miniature Circuit Breaker 2CDS252001R0537 New

ABB Miniature Circuit Breaker  , Moulded Case Circuit Breakers  , 2P Breakers
Send Inquiry Live chat

Description

ABB Moulded Case Circuit Breakers S202-K32 Miniature Circuit Breaker 2CDS252001R0537 New

Overview


System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.

Specifications


Range of product
 Miniature Circuit Breaker
Product Model No.
 S202-K32

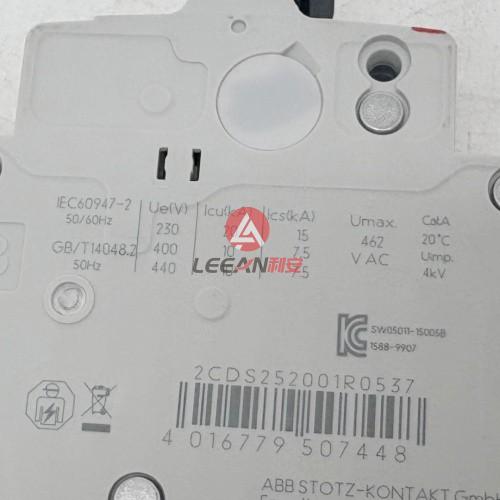

Product Id 2CDS252001R0537
Dielectric Test Voltage
 50 / 60 Hz - 1 min 2 kV
Rated Ultimate Short-Circuit Breaking Capacity (Icu)
(125 V DC) 10 kA
(230 V AC) 20 kA
(400 V AC) 10 kA
(440 V AC) 10 kA
(48 V DC) 20 kA
(230 V) 20 kA
(400 V) 10 kA
Rated Service Short-Circuit Breaking Capacity (Ics)
 (230 V AC) 15 kA
(400 V AC) 7.5 kA
(440 V AC) 7.5 kA
Power Loss
7.2 W at Rated Operating Conditions per Pole 3.6 W
Condition
 New Original
Poles
 2P
Current
 32A
Weight 0.3KG
Miniature Circuit Breakers S201/S202/S203/S204-C10-C16-C25-C32-C40-C63
Poles 1P,2P,3P,4P
Rating Current

1A,2A,3A,4A,6A,10A,16A,20A,25A,32A,40A,50A,63A,80A,100A

If you have any inquiries on ABB products, pls feel free to contact us.
