Honeywell Flame UV Switch R4343E1014 Flame Detector Relay 230VAC 50/60Hz New

Description

Honeywell Flame UV Switch R4343E1014 Flame Detector Relay 230VAC 50/60Hz New

---

Overview

R4343 Flame Switch
The R4343D/E series is a flame switch for intermittent operation to indicate presence or absence of a flame and to be applied in commercial or industrial burner installations.

The Honeywell R4343E1014 flame switch has been designed for intermittent operation when indicating the presence or absence of a flame within commercial and industrial oil/gas burner installations, using an open or closed relay contact. The front mounted jack socket permits the monitoring of flame signal strength by using an appropriate microampere meter (0-10uA minimum scale). Designed for operation with Honeywell C7027, C7035 and C7044 UV flame sensors.

---

Features

Plug in mounts onto included sub base for surface mounting
IP40 rated protection
CE approved according to EN298 (intermittent operation)
Ambient temperature range -10 to 60 degrees C
Maximum humidity 90% RH
Outputs 1xDPDT
For use with Honeywell UV Flame Sensor models C7027, C7035 and C7044

Details

Brand	Honeywell
Model	R4343E1014
Specifications	230 VAC 50/60H T:1 sec Max 2A 230VAC cos:0.65
Similar Flame Switch	R4343E1009 R4343E1014 R4343E1041 R4343D1017 R4343E1048 R4343E1006 R4343D1019
Flame Sensors	C7027A1023 C7027A1049 C7027A1072 C7035A1023 C7035A1064 C7027A1031 C7027A1023 C7027A1072 C7027A1064 C7027A1056 C7027A1114 C7035A1064 C7035A1023 C7035A1031 C7035A1080 C7035A1049
Condition	New Original
Honeywell Flame Detectors	R7861A1034 R7847B1064 R7861A1026 R7849A1015 R7847A1025 R7861A1026 R7849A1023 R7847A1033 R7861A1034 R7847A1074 R7847A1025 R7847A1082 R7852A1001 R7849A1098 R7845A1023 R7847B1064 R7852A1001 R7861A1034 R7851C1008 R784231042 R7886A1001 R7852B1009 R7847A1025/U

---

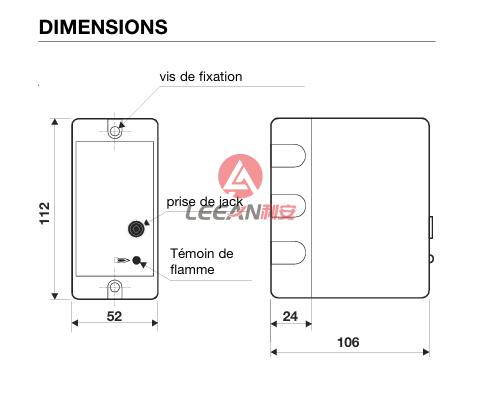

Dimensions

---
