Description

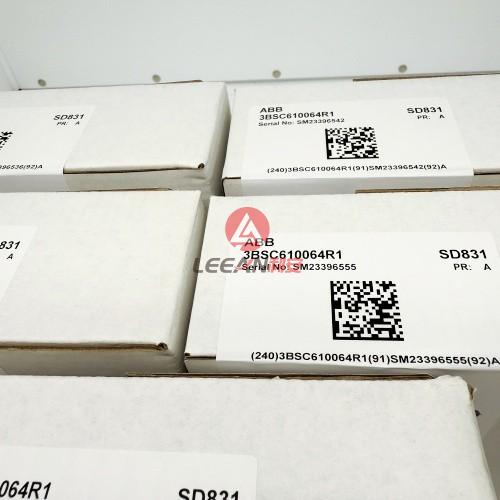

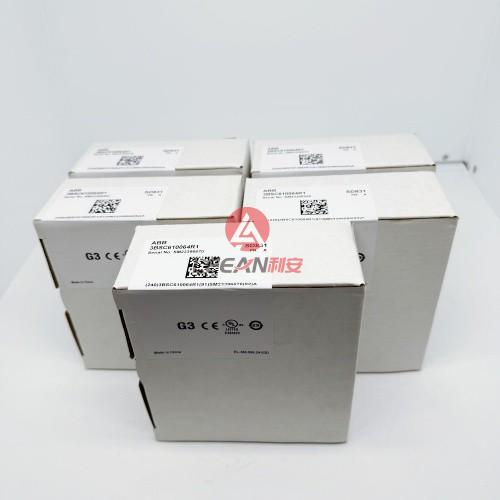

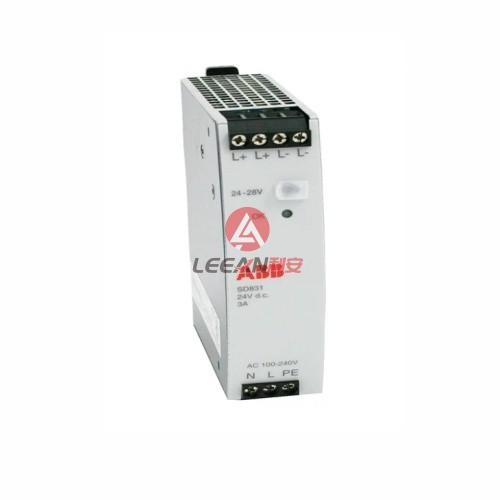

ABB AC800M S800 I/O Power Supply Module SD831 Voter 3BSC610064R1 3A 72W 24VDC New Original
Overview
SD822Z, SD83x, SD85x, SS822Z, SS823 and SS832 is a range of space saving power supplies intended for the AC 800M and S800 I/O product lines. Output current can be selected in the range of 3-20 A and the input range is wide. Relevant voters for redundant configurations are available.
The SD83x Power Supply Units are designed to meet all the applicable electrical safety data stated by the EN 50178 harmonized European Standard Publication and the additional safety and function data required by EN 61131-2 and UL 508.
The secondary output circuitry is accepted for SELV or PELV applications. They are switch-mode Power Supply Units that convert the mains voltage to 24 volts d.c. These power supplies can be utilized for non-redundant and redundant applications.
Redundant applications require diode voting units SS823 or SS832. With the type SD83x series Power Supply Units, there is no requirement for the installation of a mains filter. They provide a soft start feature; power-on of an SD83x will not trip fuses or earth-fault circuit breakers.
Features and benefits
Simple DIN-rail mounting
Class I Equipment, (when connected to Protective Earth, (PE))
Over-voltage Category III for connection to primary main
TN network
Protective separation of secondary circuit from primary circuit
Accepted for SELV and PELV applications
The output of the units is protected against over current
(current limit) and over-voltage (OVP)
Both a.c. and d.c. input at SD831 and SD834
Specifications
| Brand | ABB |
|
Type |
Power Supply Unit |
| Model |
SD831 |
|
Article number |
3BSC610064R1 |
| Specifications |
Rated output current:3 A Rated output power:72 W Rated output voltage:d.c. 24 V Rated input power:134/143 VA Mains/input voltage, nominal:100-240 V a.c. 110-300 V d.c. Applications:SELV and PELV Efficiency:88/89.8 % |
| Condition | New Original |
| Weight | 1KG |
| Power Supply Unit |
SD822Z 3BSC610054R1 SD831 3BSC610064R1 SD832 3BSC610065R1 SD833 3BSC610066R1 SD834 3BSC610067R1 |
| Similar Modules |
CI853K01 CI854K01 CI873K01 CI873AK01 CI854BK01 CI858K01 CI867K01 CI868K01 CI854AK01 CI867Ak01 CI871K01 PM851AK01 PM856AK01 PM864AK01 PM866AK01 PM865K01 PM865K02 PM861AK01 PM802F PM803F AI830 AI835 DO801 PM632 AI810 AO810V2 DI810 DO810 FI830F FI820F TU847 TU818 TU810V1 TU831V1 TU830V1 TB820V2 AI801 AO801 SA811F EI813F FI820F SD832 SD833 SS822 CI840A CI830 CI845 CI801 CI810B AI880A DI880 DO880 DO820 AI835 AI830A DI524 DI561 DI562 DI571 DI821 DI801 DI572 DX561 DO571 PM554-RP AI561 AO561 CM574 DI561 SB822 TB807 If you need other modules, pls feel free to contact us. |
| I/O Modules |
AI810, AI815, AI820, AI830, AI830A, AI835, AI835A, AI843, AI845, AO810, AO810V2, AO815, AO820, AO845, AO845A, DI810, DI811, DI814, DI818, DI830, DI831, DI840, DI880, DI885, DO810, DO814, DO815, DO818, DO840, DO880, DP820 and DP840 |
|
Other Terminal Blocks |
TU810V1, TU812V1, TU814V1, TU830V1, TU833 |
S800 I/O Module
S800 I/O is a comprehensive, distributed and modular process I/O system that communicates with parent controllers over industry-standard fieldbus technology and therefore can be used with a wide range of process controllers from ABB and other vendors.
|
Model |
Mechanics |
Type |
|
AI801 |
S800L |
Analog Input |
|
AI810 |
S800 |
Analog Input |
|
AI815 |
S800 |
Analog Input |
|
AI820 |
S800 |
Analog Input |
|
AI825 |
S800 |
Analog Input |
|
AI830A |
S800 |
Analog Input |
|
AI835A |
S800 |
Analog Input |
|
AI843 |
S800 |
Analog Input |
|
AI845 |
S800 |
Analog Input |
|
AI880A |
S800 |
Analog Input |
|
AI890 |
S800 |
Analog Input |
|
AI893 |
S800 |
Analog Input |
|
AI895 |
S800 |
Analog Input |
|
AO801 |
S800L |
Analog Input |
|
AO810V2 |
S800 |
Analog Output |
|
AO815 |
S800 |
Analog Output |
|
AO820 |
S800 |
Analog Output |
|
AO845A |
S800 |
Analog Output |
|
AO890 |
S800 |
Analog Output |
|
AO895 |
S800 |
Analog Output |

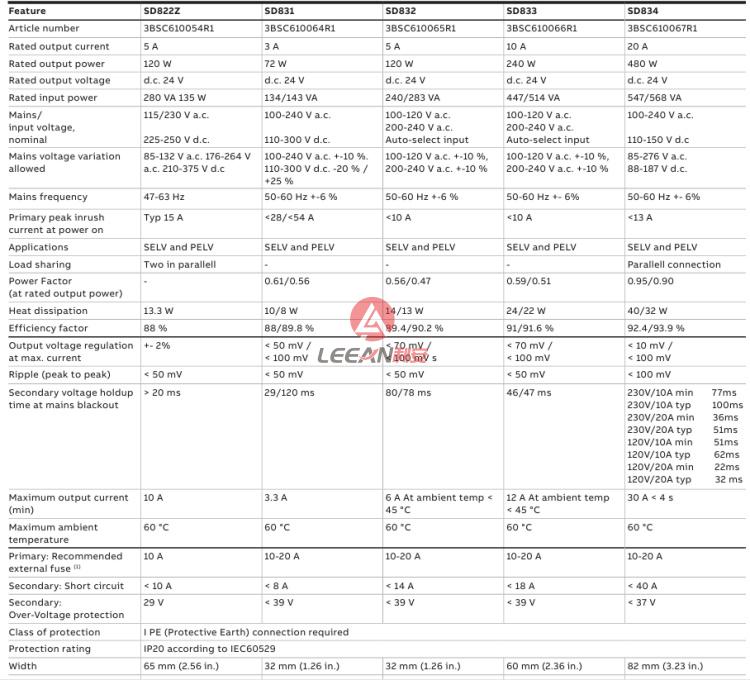

Specifications of Power Supply Unit SD822Z SD831 SD832 SD833 SD834
