100W Industrial Mitsubishi Servo Drive Unit MDS-B-SVJ2-01 Servomotor Driver Amolifier New

Description

100W Industrial Mitsubishi Servo Drive Unit MDS-B-SVJ2-01 Servomotor Driver Amolifier New

---

Overview

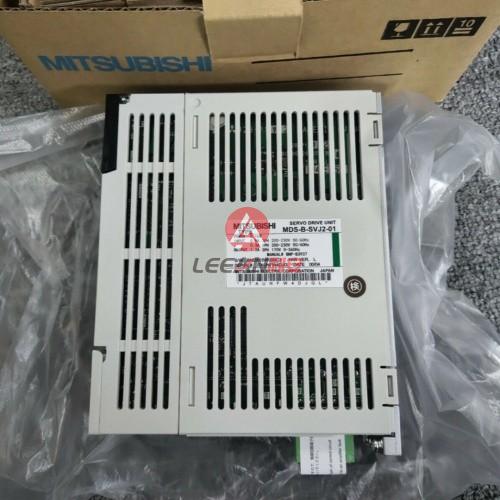

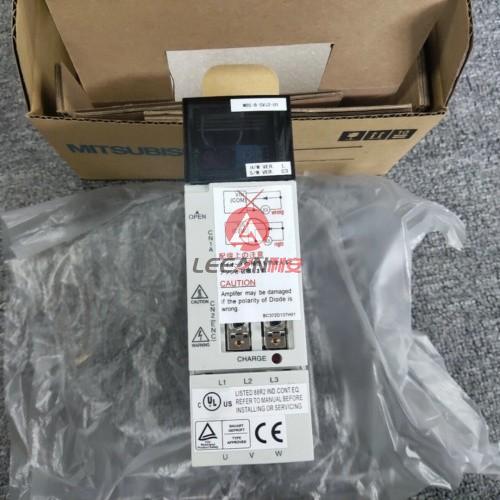

The Mitsubishi MDS-B-SVJ2-01 (MDSBSVJ201) is a MDS series servo drive with an output wattage of 0.1kW. This servo drive has an input 3 phase voltage frequency of 200-230VAC and 50/60Hz with a current of 0.9 Amp. This servo drive also has a 1-phase voltage frequency of 200-230VAC and 50/60Hz with a current of 0.3 Amp. The MDS-B-SVJ2-01 servo drive has a tolerable frequency fluctuation, being within ±5%, makes its permissible voltage range be between 170 and 253 with the normal frequency of 50/60Hz. The output however has a current of 1.2 Amp, and it is 3-phases with a voltage 170V and a frequency range of 0-360Hz.

The MDS-B-SVJ2-01 servo drive and 0.1kW that measures as 168mm in length, 50mm wide and 135mm high (6.61in by 1.97in by 5.31in). The wiring spacing required by the wires attached to the screw terminals and the CN2 connector is acknowledged, an extra 70mm in height and 40mm in length must be added. The weight of the MDS-B-SVJ2-01 is 1.54lbs (0.7kg)

There are a few motors that the MDS-B-SVJ2-01 servo drive can connect to: the HA053N, the HA13N, the HA-FF053, the HA-FF13, the HA-FF053C-UE, the HA-FF13C-UE, the HC-MF053(-UE), the HC-MF23(-UE), and lastly the HC-MF13-S15. The servo drive connects with the powers supply cable by the U, V, W screw terminals and with the option cable by the CN2 port, and some of the motors may connect to one of the MDS-B-SVJ2-01’s external screw terminals.

The MDS-B-SVJ2-01 servo drive with 3 Phase voltage frequency has an IP enclosure rating of IP20. The IP20 protective structure protects the motor from undue finger contact or other accidental contacts from other substances.

---

Product details

Brand	Mitsubishi Electric
Type	SERVO DRIVE UNIT
Model	MDS-B-SVJ2-01
Power	0.1KW
Input	0.9A 3PH 200-230V 50/60Hz 0.3A 1PH 200-230V 50/60Hz
Output	1.2A 3PH 170V 0-360Hz
Condition	New Original
Warranty	One Year
Country of Origin	Japan
Similiar Servo Amplifiers	MDS-B-SVJ2-01 MDS-B-SVJ2-03 MDS-B-SVJ2-04 MDS-B-SVJ2-06 MDS-B-SVJ2-07 MDS-B-SVJ2-10 MDS-B-SVJ2-20 MDS-B-SPJ2-02 MDS-B-SPJ2-04 MDS-B-SPJ2-075 MDS-B-SPJ2-15 MDS-B-SPJ2-22 MDS-B-SPJ2-37 MDS-B-SPJ2-55 MDS-B-SPJ2-75 MDS-B-SPJ2-110 MDS-B-SP-55 MDS-B-SP-75 MDS-B-SP-110 MDS-B-SP-150 MDS-B-SP-220 MDS-B-SP-260 MDS-B-SP-300 MDS-B-SP-370 MDS-B-SP-450 MDS-B-CV-37 MDS-B-CV-75 MDS-B-CV-55 MDS-B-CV-110 MDS-B-CV-185 MDS-B-CVE-450 MDS-B-SP-110 MDS-B-SPH-110 MDS-B-SPM-110 MDS-B-SPX-110 MDS-B-SP-185 MDS-B-SPH-185 MDS-B-SPM-185 MDS-B-SPX-185 MDS-B-SP-220 MDS-B-SPH-220 MDS-B-SPM-220 MDS-B-SPX-220 MDS-B-SP-300 MDS-B-SP-75 MDS-D-SP-160 MDS-D-SP-220 MDS-DH-SP-200 MDS-B-SP-110 MDS-C1-SP-300U MDS-C1-SP-185-N MDS-C1-SP-185 MDS-C1-SPM-185 MDS-C1-SP-55 MDS-C1-SP-37 MDS-C1-SP-220 MDS-B-SPJ2-04 MDS-B-SPJ2-075 MDS-B-SPJ2-15 MDS-B-SPJ2-22 MDS-B-SPJ2-37 MDS-B-SPJ2-55 MDS-B-SPJ2-75 MDS-B-SPJ2-110 MDS-R-V1-40 MDS-R-V1-20 MDS-R-V1-60 MDS-R-V1-80 MDS-R-V2-2020 MDS-R-V2-4020 MDS-R-V2-4040 MDS-R-V2-6040 MDS-R-V2-6060 MDS-R-V2-8060 MDS-R-V2-8080

---
