Description
LS Electric Starvert iG5A Variable Frequency Drive SV150iG5A-4 Industrial Inverter 15KW AC380-400V 20HP 44A New
Overview
Inverter STARVERT iG5A
LS Starvert iG5A is very competitive in its price and shows an upgraded functional strength. User-friendly interface, extended inverter ranges up to 22kW,superb torque competence and small size of iG5A provides an optimum use environment.
iG5A provides sensorless vector control, PID control,and ground-fault protection through powerful built-in functions.
LS Industrial Systems Starvert iG5A AC Frequency Inverter for 15kW (20HP) 400V 3 Ph motor in VxF or Sensorless Vector Control control to 30A. Simple to set-up for a standard AC Induction motor.
The LS iG5A SV150iG5A-4 is a 15 kW, 380-480V inverter designed for versatile applications including pumps, fans, and general-purpose machinery. It features sensorless vector and V/f control, integrated braking, a built-in PID controller, and supports multiple communication protocols for easy system integration.
Features
Sensorless vector control
The built-in sensorless vector control provides the superb speed control and powerful high torque.
Ground-fault protection during running
The ground-fault protection of output terminal is possible during running.
Analog control from -10V to 10V
Inputting analog signals from -10V to 10V provides user-friendly operation.
Built-in PID control
The built-in PID function enables to control flow-rate, oil-pressure, temperature, etc without any extra controller.
Built-in dynamic braking circuit
The built-in dynamic braking circuit minimizes deceleration time via braking resistors.
Built-in 485 communication
The built-in RS-485 communication supports remote control and monitoring between iG5A and other equipment.
Wide product range
iG5A consists of the product range from 0.4 to 22KW.
Product Details
Wiring configuration: 2-wire

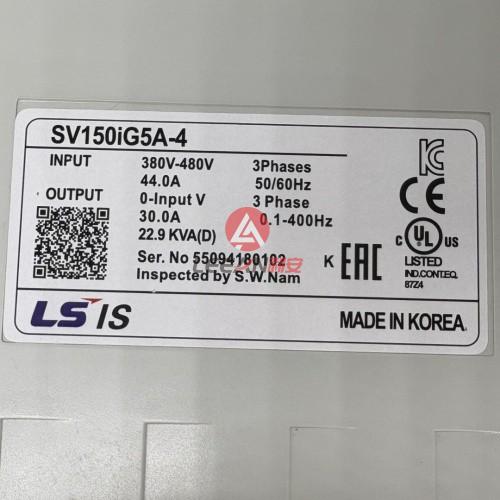

INPUT: 380V-480V 3 Phases 44.0A 50/60Hz
OUTPUT:0-Input V 3 Phase 30.0A 0.1-400Hz 22.9 KVA(D)
Ambient: Rated at 40℃
Ventilation space above and below: 100mm
Ventilation space at sides: 50mm
Control Modes:V/f & Sensorless Vector Control
Overload Capacity:150% for 1 minute
Braking Unit:Integrated
Communication:RS485 (Modbus RTU, CANopen, BACnet, EtherNet/IP)
Dimensions (W x H x D):235 x 320 x 189.5 mm
SV004iG5A-1
SV008iG5A-1
SV015iG5A-1
SV004iG5A-2
SV008iG5A-2
SV015iG5A-2
SV022iG5A-2
SV037iG5A-2
SV040iG5A-2
SV004iG5A-4
SV008iG5A-4
SV055iG5A-2
SV075iG5A-2
SV110iG5A-2
SV150iG5A-2
SV185iG5A-2
SV220iG5A-2
SV015iG5A-4
SV022iG5A-4
SV037iG5A-4
SV040iG5A-4
SV055iG5A-4
SV075iG5A-4
SV110iG5A-4
SV150iG5A-4
SV185iG5A-4
SV220iG5A-4
If you need other models, pls feel free to contact us.
Brand:
LS
Type:
Variable Frequency Drive
Model
SV150iG5A-4
Specifications
Country of Origin
Korea
Weight
9 KG
Similar Products

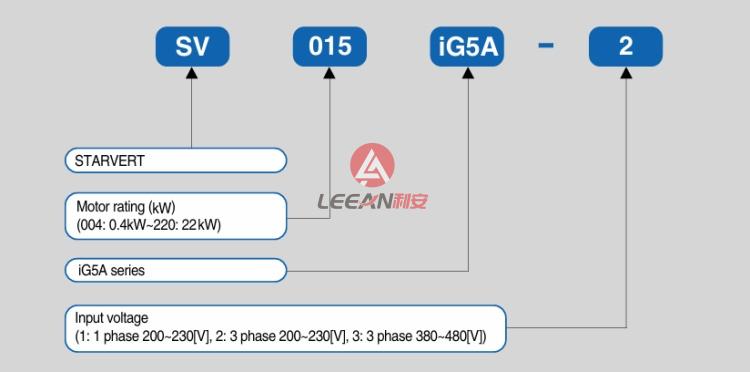

Model Choosing

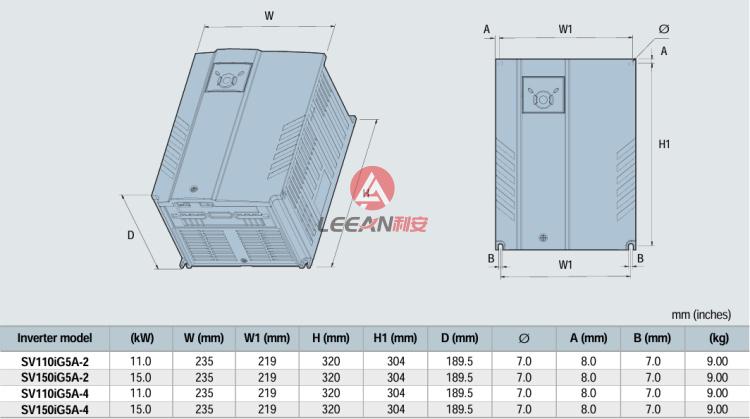

Dimensions
