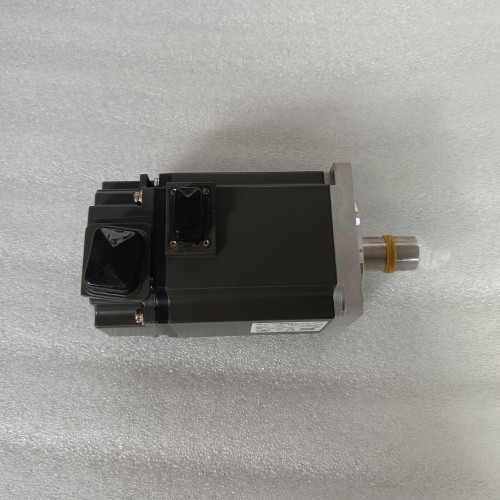

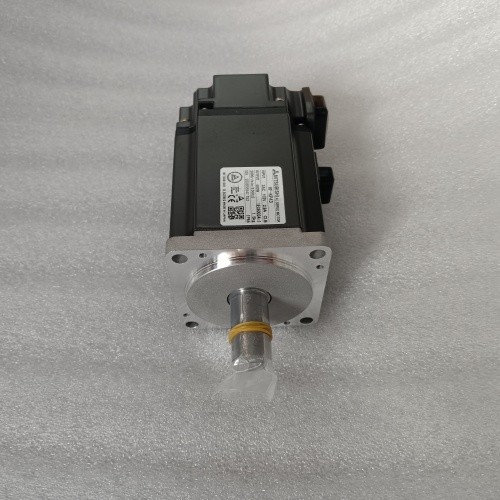

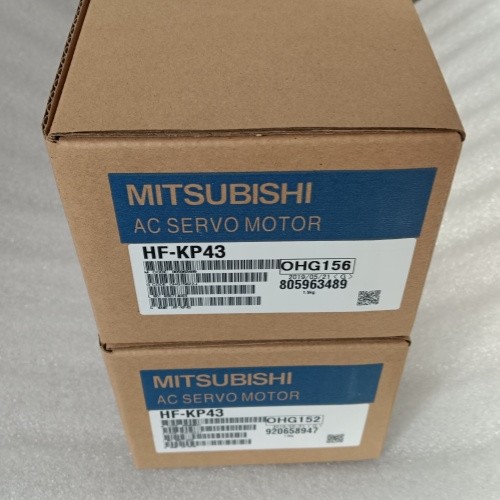

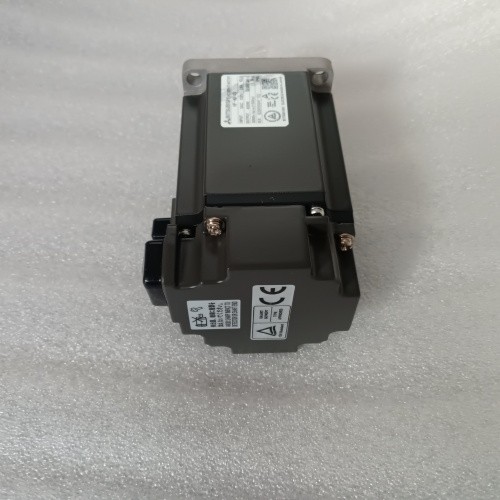

Mitsubishi Industrial 400W AC Servo Motor HF-KF43 Input 3AC 102V 2.9A New
Product Description of servo motor HF-KF43
The maximum rotation speed is 6,000 r/min against the rated rotation speed of 3,000 r/min.
The maximum torque is applicable with 350% of the rated torque, and high torque is realized in the high rotation range.
[Features]
・ High resolution absolute position encoder (4,194,304 pulses/rev (22 bit)) is standard equipment. It achieves higher accuracy positioning.
・ IP65 is adopted as standard. No problem with water and dust
・ The power cable, encoder cable, and electromagnetic brake cable can be pulled out from the servo motor either on the load side or the non-load side by selecting the cable.
・ Torque ripple is greatly reduced by optimizing the combination of motor poles and slots.
・ It operates smoothly even at low speed operation, which is easily affected by torque ripple, and improves stability.
Specifications of servo motor HG-KR23BK-S000997
Manufacture
Mitsubishi from Japan
Model no.
HF-KP43
Condition
New Original
Power
400W
Input
3AC,102V,2.9A
Speed
3000rpm/min
Net Weight
1.5KG
Warranty
One Year
Servo motor HF-KP43 Match Servo Amplifier
MR-J4-20B(-RJ), MR-J4-20B1(-RJ), MR-J4-20B-RJ010, MR-J4-20A(-RJ), MR-J4-20A1(-RJ)
MR-J4W2-22B, MR-J4W2-44B,MR-J4W3-222B, MR-J4W3-444B
Related servo motors
HG-KR053 ,HG-KR053B ,HG-KR053D ,HG-KR053BD ,HG-KR13D,HG-KR13BD,HG-KR23K,HG-KR23BK\,
HG-KR43K,HG-KR43BK,HG-KR73K,HG-KR73BK,HG-MR053,HG-MR053B,HG-MR053D,HG-MR053BD,
HG-MR13D,HG-MR13BD,HG-MR23K,HG-MR23BK,HG-MR43K,HG-MR43BK,HG-MR73K,HG-MR73BK
Servo Motor Selection 200V/100V (Example Part No. = HG-KR053BG1)
Not all options available for every motor.
