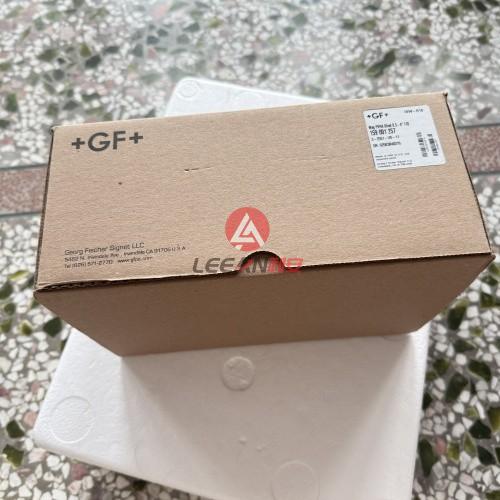

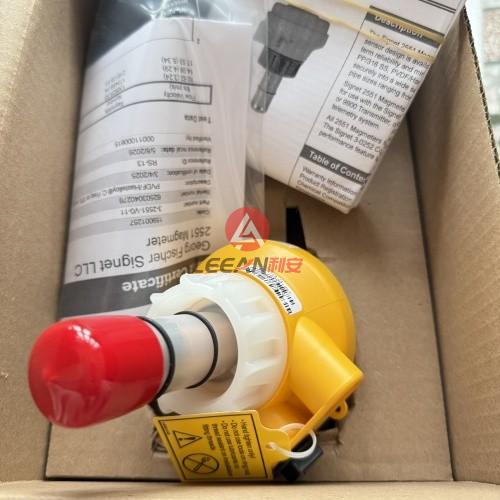

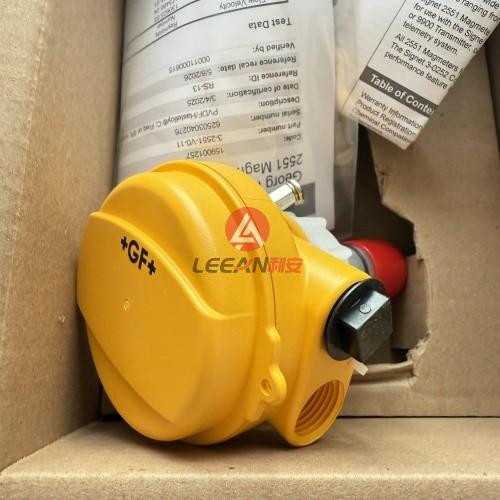

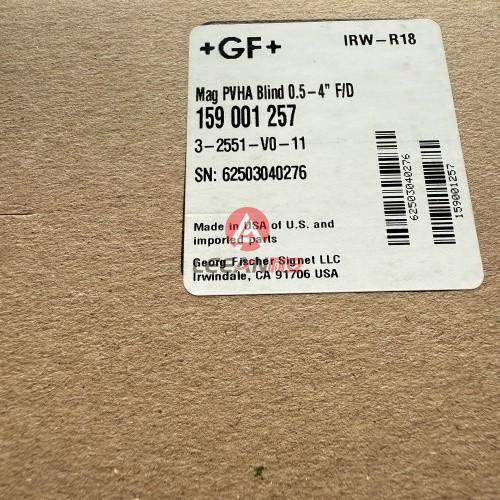

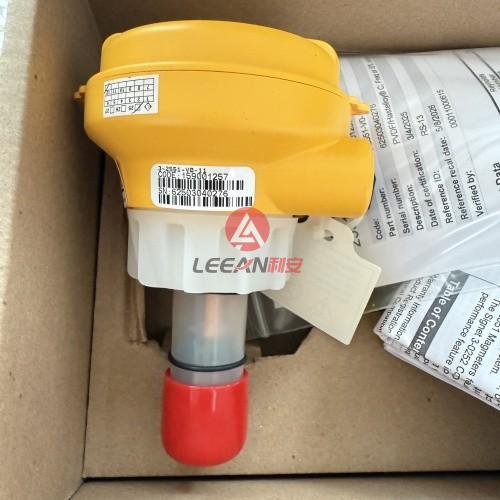

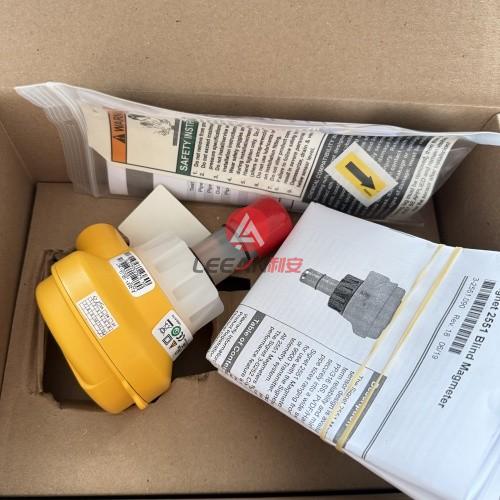

GF GEORG FISCHER Signet 2551 Magmeter Flow Sensor 3-2551-V0-11 Industrial Sensors 159001257 New

Description

GF GEORG FISCHER Signet 2551 Magmeter Flow Sensor 3-2551-V0-11 Industrial Sensors 159001257 New

Overview

The type 2551 Magmeter is an insertion style magnetic flow sensor that features no moving parts. The patented* sensor design is available in corrosionresistant materials to provide long-term reliability with minimal maintenance costs. Material options include PP with stainless steel, PVDF with Hastelloy-C, or PVDF with Titanium. Utilizing the comprehensive line of GF installation fittings, sensor alignment and insertion depth is automatic. These versatile, simple-to-install sensors deliver accurate flow measurement over a wide dynamic range in pipe sizes ranging from DN15 to DN900 (½ to 36 in.), satisfying the requirements of many diverse applications. Type 2551 Magmeters offer many output options of frequency/digital (S3L) or 4 to 20 mA which are available on both the blind and display versions. The frequency or digital (S3L) sensor output can be used with GF ’s extensive line of flow instruments while the 4 to 20 mA output can be used for a direct input to PLCs, chart recorders, etc. Both the 4 to 20 mA output and digital (S3L) sensor interface is available for long distance signal transmission. An additional benefit is the empty pipe detection which features a zero flow output when the sensors are not completely wetted. Also, the frequency output is bi-directional while the 4 to 20 mA output can be set for uni- or bi-directional flow using the display or the 3-0252 Configuration Tool which connects to PCs for programming capabilities. In addition the display version of the 2551 Magmeter is available with relays and features permanent and resettable totalizer values which can be stored and seen on the display. Also, the display contains multilanguages with English, Spanish, German, French, Italian and Portuguese menu options.

• Test certifi cate included for -X0, -X1
• Patented Magmeter technology*
• No moving parts
• Bi-directional fl ow
• Empty pipe detection
• Installs into pipe sizes DN15 to DN900 (0.5 to 36 in.)
• Operating range 0.05 to 10 m/s (0.15 to 33 ft/s)
• Accurate measurement even in dirty liquids
• Polypropylene and PVDF retaining nuts standard, Valox optional
• 4 to 20 mA, digital (S3L), frequency, relay output (Display only)
• No pressure drop
• Corrosion resistant materials; PP or PVDF with SS, Hastelloy-C, or Titanium
• Multi-language display menu available

Details

Dimensions
