Description
New Gasket for Honeywell Eclipse ThermJet TJ Burners TJ0050 TJ0075 TJ0100 TJ0150 TJ0200
Overview:
Honeywell Eclipse ThermJet or TJ direct fire burners feature the highest flame velocities available.
The industry standard for velocity burners, the low NOx ThermJet represents a technological leap forward in every area of design and performance. Comparison tests show that ThermJet delivers the lowest emissions of any competitive model. Integrated gas and air orifices simplify burner piping, set-up and adjustment. Air and gas inlets are independently adjustable in 90-degree increments to suit a variety of piping alternatives.
The burners are available in 14 sizes with maximum capacities ranging from 150,000 to 20,000,000 Btu/hr. All models are also available for use with preheated combustion air. Installation, operation and maintenance are simple and cost effective. Eclipse ThermJet direct fire burners are made to last – with rugged Eclipse dependability and reliability built in.
Application
Typical applications include: tempering furnaces, hardening furnaces, reheating furnaces, fluidized bed driers, thermal oxidizers, non-ferrous melting, ladle/tundish, glass lehrs, environmental applications, and preheated air.
Specification:
Brand
Eclipse
Type
Gasget
Condition
New
Details

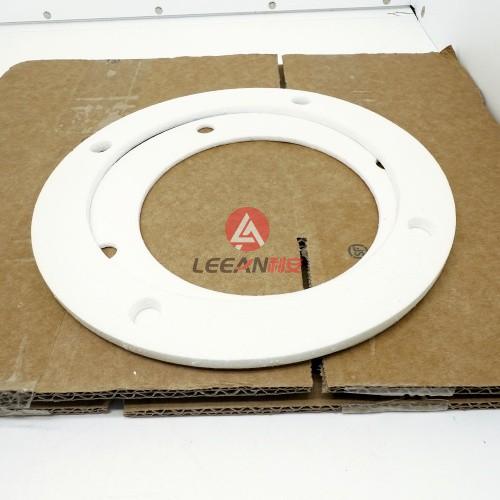

The Gasgets are used in Thermjet and other burners. This is an OEM part.
The following TJ burners use it: TJ0050, TJ0075, TJ0100, TJ0150, TJ0200
Eclipse ThermJet (TJ) and TJPCA (Pre Combustion Air) Burner sizes and capacity:
TJ0015 and TJPCA0015 Max Input, 150,000 Btu/hr. (40 kW)
TJ0025 and TJPCA0025 Max Input, 250,000 Btu/hr. (67 kW)
TJ0040 and TJPCA0040 Max Input, 400,000 Btu/hr. (107 kW)
TJ0050 and TJPCA0050 Max Input, 500,000 Btu/hr. (133 kW)
TJ0075 and TJPCA0075 Max Input, 750,000 Btu/hr. (200 kW)
TJ0100 and TJPCA0100 Max Input, 1,000,000 Btu/hr. (267 kW)
TJ0150 and TJPCA0150 Max Input, 1,500,000 Btu/hr. (400 kW)
TJ0200 and TJPCA0200 Max Input, 2,000,000 Btu/hr. (533 kW)
TJ0300 and TJPCA0300 Max Input, 3,000,000 Btu/hr. (800 kW)
TJ0500 and TJPCA0500 Max Input, 5,000,000 Btu/hr. (1333 kW)
TJ1000 and TJPCA1000 Max Input, 10,000,000 Btu/hr. (2666 kW)
TJ1500 and TJPCA1500 Max Input, 15,000,000 Btu/hr. (4000 kW)
TJ2000 and TJPCA2000 Max Input, 20,000,000 Btu/hr. (5333 kW)

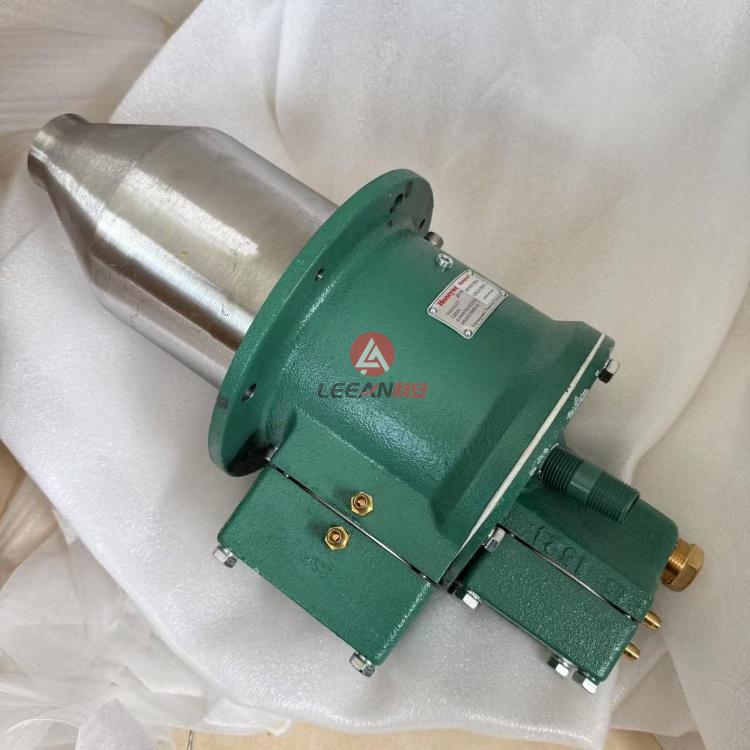

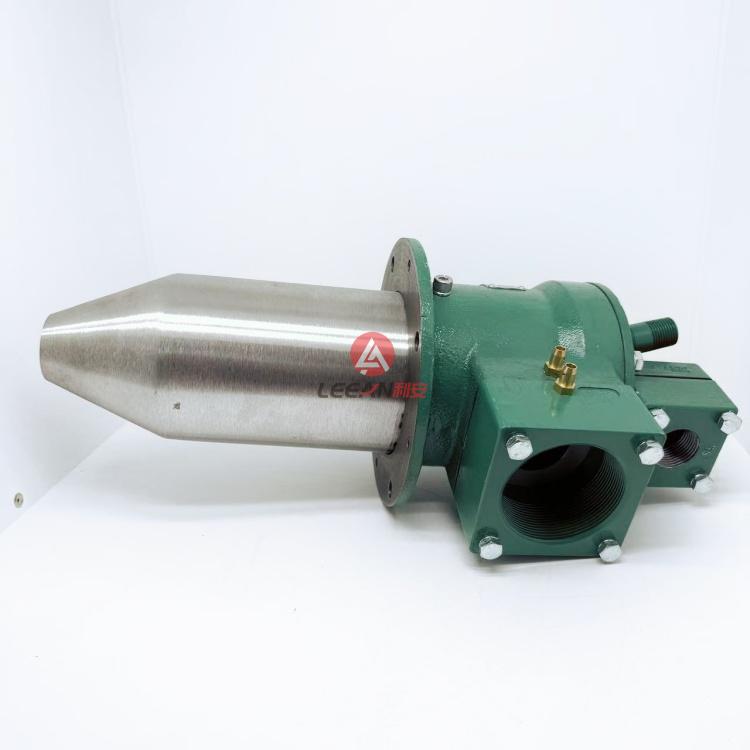

Honeywell Eclipse ThermJet TJ Burner TJ0050-A1AHATNF2D6XSBO
Honeywell Eclipse ThermJet TJ Burner TJ0100-A1AHATNC4E2XSBO
