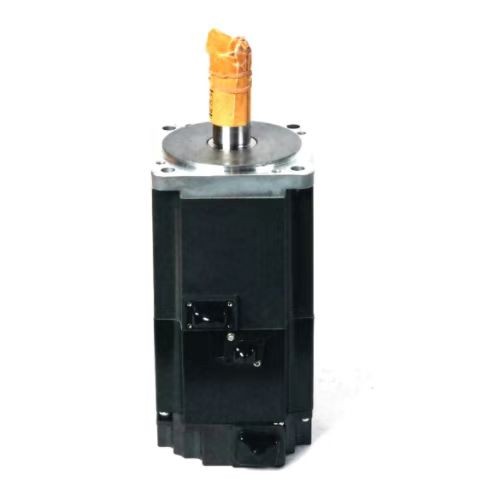

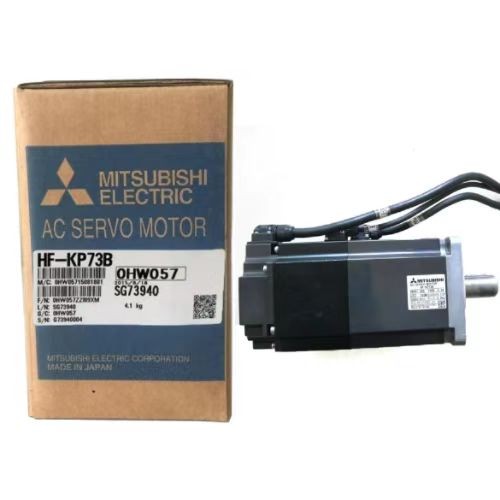

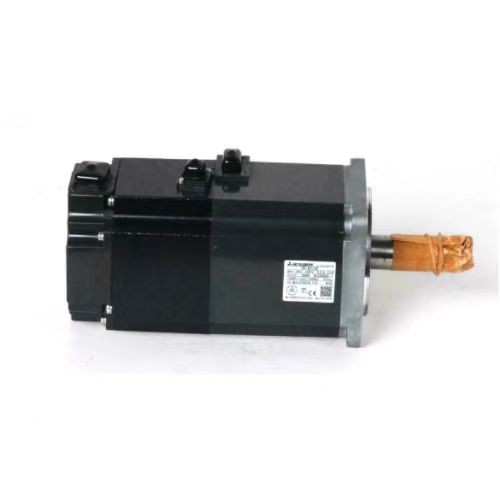

Mitsubishi High Speed HF-KP Series AC Servo Motor HF-KP73B 750W 3000RPM

Description

Mitsubishi High Speed HF-KP Series AC Servo Motor HF-KP73B 750W 3000RPM

Product Description of servo motor HF-KP73B

The maximum rotation speed is 6,000 r/min against the rated rotation speed of 3,000 r/min.
The maximum torque is applicable with 350% of the rated torque, and high torque is realized in the high rotation range.
[Features]
・ High resolution absolute position encoder (4,194,304 pulses/rev (22 bit)) is standard equipment. It achieves higher accuracy positioning.
・ IP65 is adopted as standard. No problem with water and dust
・ The power cable, encoder cable, and electromagnetic brake cable can be pulled out from the servo motor either on the load side or the non-load side by selecting the cable.
・ Torque ripple is greatly reduced by optimizing the combination of motor poles and slots.
・ It operates smoothly even at low speed operation, which is easily affected by torque ripple, and improves stability.

Specifications of servo motor HF-KP73B

Servo motor HF-KP73B Match Servo Amplifier

MR-J3-70A; MR-J3-70B ;MR-J3-70T

Related servo motors

HF-KP13 Motors-AC Servo
HF-KP23 Motors-AC Servo
HF-KP43 Motors-AC Servo
HF-KP43G5 Motors-AC Servo
HF-KP73B Motors-AC Servo
HF-KP73K Motors-AC Servo

HG-KR053 ,HG-KR053B ,HG-KR053D ,HG-KR053BD ,HG-KR13D,HG-KR13BD,HG-KR23K,HG-KR23BK,

HG-KR43K,HG-KR43BK,HG-KR73K,HG-KR73BK,HG-MR053,HG-MR053B,HG-MR053D,HG-MR053BD,

HG-MR13D,HG-MR13BD,HG-MR23K,HG-MR23BK,HG-MR43K,HG-MR43BK,HG-MR73K,HG-MR73BK

Servo Motor Selection 200V/100V (Example Part No. = HG-KR053BG1)

Not all options available for every motor.
