Description

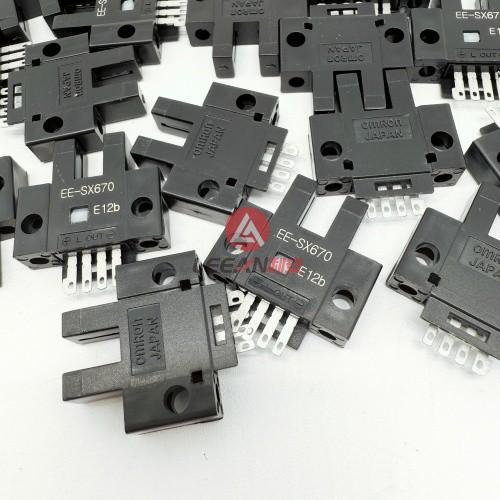

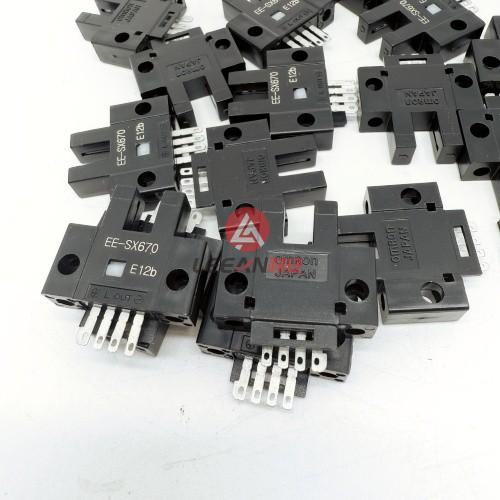

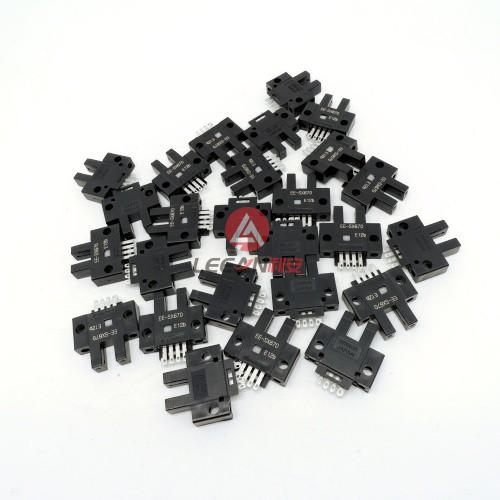

OMRON Photomicrosensor EE-SX670 Optical Sensor Switch Built-in Connector 5MM Slot Type New
Overview
Photomicrosensor, Slot type, Through-beam, Standard, Sensing distance: 5 mm (slot width), Dark-ON/Light-ON (selectable), Indicator: Incident light, NPN output, Connector model.
Omron EE-SX67 Slot-Type Photomicrosensors are non-modulated with a 50mA to 100mA direct switching capacity. The EE-SX67 series includes models that enable switching between dark-ON and light-ON operation. The EE-SX67 photomicrosensors feature a response frequency as high as 1kHz and a wide operating voltage range from 5VDC to 24VDC.
Global Standard Slot-type photomicrosensors with 50- to 100-mA direct switching capacity.
•Series includes models that enable switching between dark-ON and light-ON operation.
•Response frequency as high as 1 kHz.
•Easy operation monitoring with bright light indicator.
•Wide operating voltage range: 5 to 24 VDC
•Models in which the light indicator turns ON for dark-ON operation are also available.
•A wide range of variations in eight different shapes.
•Flexible robot cable is provided as a standard feature.
Description
EE-SX674-WR 1M EE-SX674P-WR 1M
EE-SX675-WR 1M EE-SX675P-WR 1M
Brand :
OMRON
Model :
EE-SX670
Product type :
Photomicrosensor
Specifications:
Sensing Distance:0.197" (5mm)
Sensing Method:Through-Beam
Output Configuration:NPN - Open Collector
Mounting Type:Chassis Mount
Current - Supply:12 mA
Voltage - Supply:5V ~ 24V
Response Time:1ms
Operating Temperature:-25°C ~ 55°C
Shipping weight:
0.1 Kg
Condition:
New Original
Similar Sensors:
IEE-SX670 EE-SX670P
EE-SX670A EE-SX670R
EE-SX470 EE-SX471
EE-SX671 EE-SX671P
EE-SX671A EE-SX671R
EE-SX672 EE-SX672P
EE-SX672A EE-SX672R
E-SX472 EE-SX473
EE-SX673 EE-SX673P
EE-SX673A EE-SX673R
EE-SX674 EE-SX674P
EE-SX674A EE-SX674R
EE-SX474--
EE-SX675 EE-SX675P
EE-SX676 EE-SX676P
EE-SX677 EE-SX677P
EE-SX670-WR 1M EE-SX670P-WR 1M
EE-SX671-WR 1M EE-SX671P-WR 1M
EE-SX672-WR 1M EE-SX672P-WR 1M
EE-SX673-WR 1M EE-SX673P-WR 1M
EE-SX677-WR 1M EE-SX677P-WR 1M
Cable:
EE-1001
EE-1001-1
EE-1009 *
EE-1010 1M *
EE-1006 2M
EE-1010 2M *
EE-1010-R 1M *
EE-1010-R 2M *
If you need other models,pls feel free to contact us.

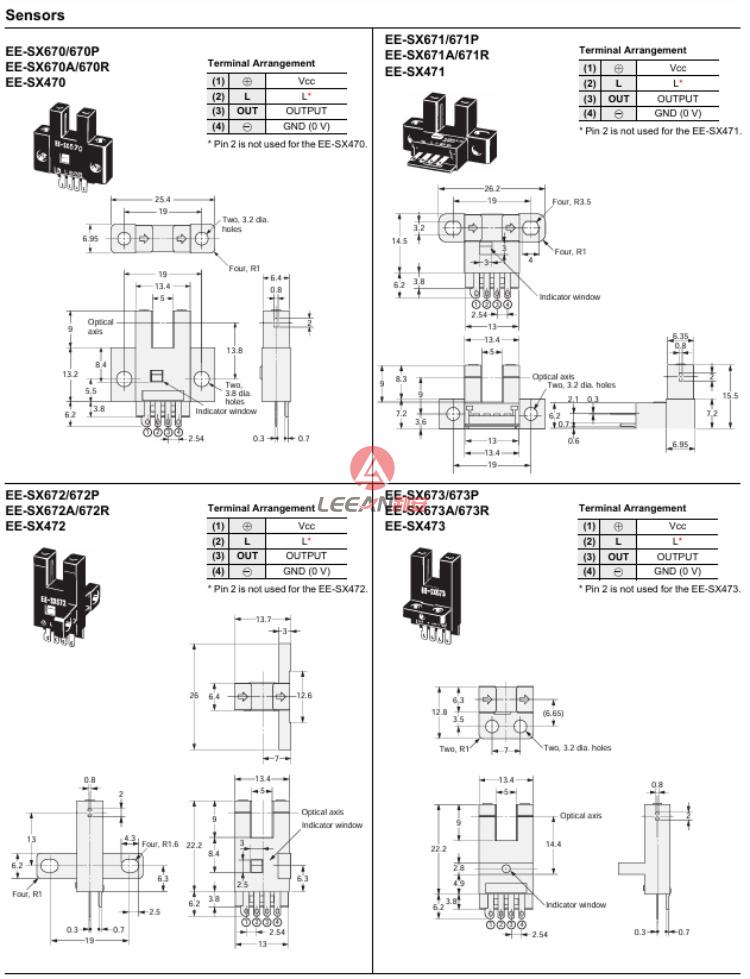

Dimensions
