Description

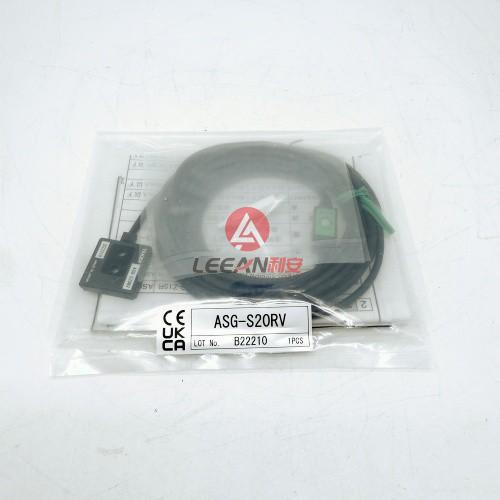

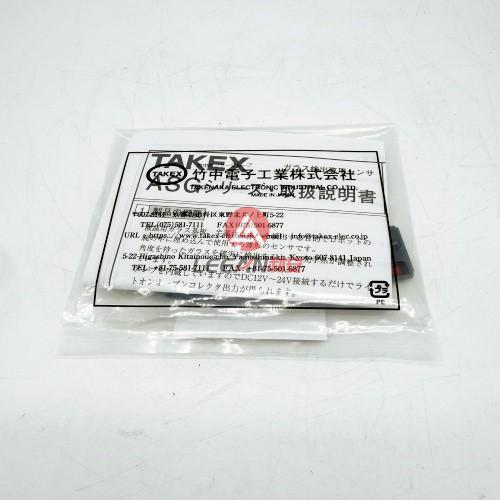

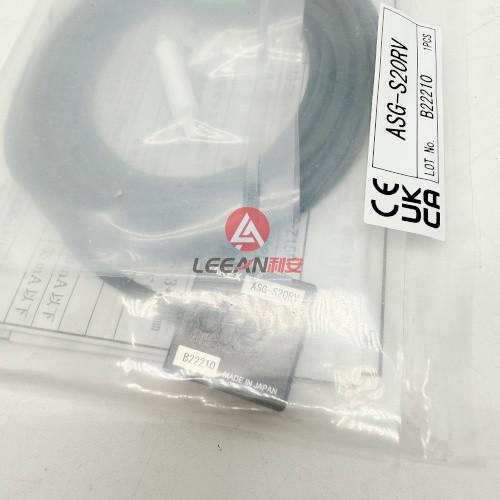

TAKEX ASG Series Embedded Amplifier Photo Sensor ASG-S20RV Industrial Sensors New Original
Overview
ASG Series
Embedded Amplifier Photo Sensors for Glass or Transparent Object Detection
Reliably detects inclined transparent glass
Ideal for flush-mounting in robot end-effecter.
Unique optical system allows stable detection regardless of warpage or inclination of glass
Unprecedented reliability in inclined object detection is realized by the use of two red LED light sources
Thin (4mm) embedded amplifier photo sensor
Counterbores for M3 countersunk screws convenient for flush-mounting in robot end-effecter.
Applications
Detection of liquid crystal glass
Mapping liquid crystal glass. A large PCB with a wide curve can be detected securely.
Detail
| Brand |
TAKEX |
| Product |
Embedded Amplifier Photo Sensor |
| Model |
ASG-S20RV |
| Specifications |
Type:Glass wafer detection Power Supply:12-24VDC Detection Method:Diffuse reflective Detecting distance (mm):20.00 Control output:NPN Light source:Red LCD Connection:Attached cable Use application:semiconductor / LCD paper / film |
| Condition | New |
| More Sensors |
ASG-S20R ASG-S15R ASG-Z15RV ASG-Z15R ASG-S20RV ASG-S50R ASG-Z15RPN ASG-Z15R+PN ASG-S50RPN If you need any other models, pls contact us. |
Features
Difference between ASG-S20R and ASG-Z15R
ASG-S20R is a diffuse reflective type sensor with a wide activation range.If the detected glass is warped, the detecting distance can be 25 mm at maximum.
ASG-Z15R is a convergent reflective sensor with a wide activation range.If the glass to detect is warped, the detecting distance can be 18 mm at maximum.
The sensor is not activated by transparent glass in contact with the sensor.

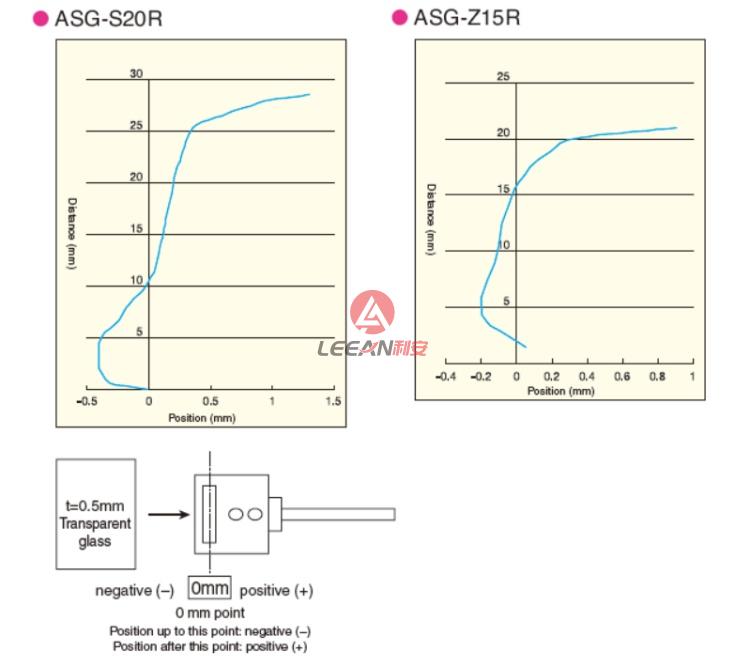

Response Curves: Activation Position (Typical)
Dimensions
Our advantage products:
AB: Input / Output Module / Touch Screen
ABB: Inverter/ I/O Module
GE: IC200/ 693 / 694 etc. series
SIEMENS: 6ES7 / 6EP / 6AV / 6SE etc.

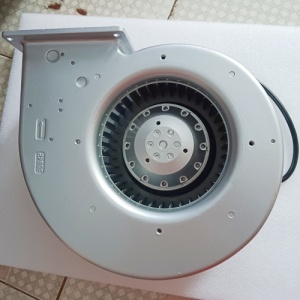

EBMPAPST / Zhiel Abegg : Centrifugal Cooling fan (Use for ABB/SIEMENS inverters)
