• OMRON CPU Central Processing Unit CQM1-CPU43-EV1 Programmable Logic Controller New

  ---

• Overview
•
  The CQM1 is a compact, high-speed PC made up of a CPU Unit, Power Supply Unit, and I/O Units that together provide up to 256 total I/O points. These components lock together at the sides, allowing simple changes in the size and capacity of the PC. There are six types of CPU Unit, shown in the table below. All of the CPU Units except for the CQM1-CPU11-E have a built-in RS-232C interface.
  The CQM1-CPU43-EV1 CPU Unit provides a built-in pulse input and output function. It has two dedicated ports for high-speed counting of up to 25-kHz two-phase pulse inputs from a device such as a rotary encoder and outputting up to 50-kHz pulses to a device such as a stepping motor.test PLCs in its class with an overhead processing speed of only 0.8 milliseconds. This fast processing speed reduces the CQM1’s scan time and increases its operation speed.

• ---

  Interrupts

  The CQM1 supports three types of interrupts:
  • Input Interrupts
  Input interrupts are used to process input signals from an external device that are shorter than the program execution time. Input signals with a pulse width as short as 0.1 ms can be used.
  • Scheduled Interrupts
• Scheduled interrupts can be performed using a high-speed interval timer.
  • High-speed Counter Interrupts
  Single-phase pulses up to 5 kHz and two-phase pulses up to 2.5 kHz can be input. High-speed counter interrupts can be combined with pulse outputs for applications such as motor control. The CQM1 CPU43-EV1 and CQM1-CPU44-EV1 can accept single-phase pulses up to 50 kHz and two phase pulses up to 25 kHz. The high-speed counter (absolute encoder input for the CPU44-EV1) has two points added.


---

Details

Brand	OMRON
Product Name	CPU Unit
Model	CQM1-CPU43-EV1
Specifications	24VDC 10mA 16points Pulse input 12/24VDC 12mA Encoder input 12/24VDC 12mA Pulse output 5-24VDC 30mA
Condition	New
Weight	2 kg
Country of Origin	Japan
Package:	Original box.
Warranty	One Year
Power Supply	CQM1-PA203 CQM1-PA206 CQM1-PD026 CQM1-IPS01 CQM1-IPS02 CQM1-PA216 CQM1-OD212 CQM1-PA216 CQM1H-CPU11 CQM1H-CPU21 CQM1H-CPU51 CQM1H-CPU61 CQM1-CPU11-E CQM1-CPU41 CQM1-CPU41-V1 CQM1-CPU43-V1 CQM1-CPU45-EV1 CQM1-CPU45-V1 CQM1-CPU21-E CQM1-OC221 CQM1-OC222 CQM1-OD211 CQM1-OD212 CQM1-OD213 CQM1-OD214 CQM1-OC224 CQM1-DA021 CQM1-AD041 CQM1-TC101 CQM1-ME04K CQM1-ME04R CQM1-ME08R CQM1-B7A21 CQM1-B7A13 CQM1H-CLK21 CQM1H-CTB41 CQM1H-II101 CQM1H-MAB42 CQM1H-PLB21 CQM1H-SCB41 CQM1-ID211 CQM1-ID111 CQM1-ID212 CQM1-ID112 CQM1-ID213 CQM1-IA121 CQM1-IA221 CQM1-CPU11-E CQM1-CPU21-E CQM1-CPU41-EV1 CQM1-CPU42-EV1 CQM1-CPU43-EV1 CQM1-CPU44-EV1 CQM1-CPU45-EV1 CQM1-ME04K CQM1-ME04R CQM1-ME08K CQM1-ME08R CQM1-MP08K CQM1-MP04R If you need other models, pls feel free to contact us.

---

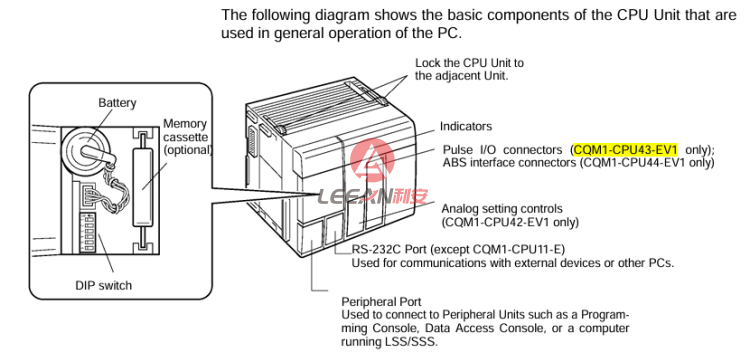

CPU Unit Components

---

System Configuration

The CQM1 is a compact, high-speed PC composed of a Power Supply Unit, a CPU Unit, and I/O Units. All of these Units connect at the sides to form a single PC, which is normally mounted to a DIN track.
All CQM1 CPU Units, except for the CQM1-CPU11-E, ar equipped with an RS-232C port that can be connected directly to a host computer, another CQM1,or other serial devices.
The following diagram shows the system configurations possible with the CQM1. Refer to Section 2 Hardware Considerations for more details on system components and specifications.

---
