Home Products More Products Cable ALLEN BRADLEY ArmorPoint 3 Meter Cable 1

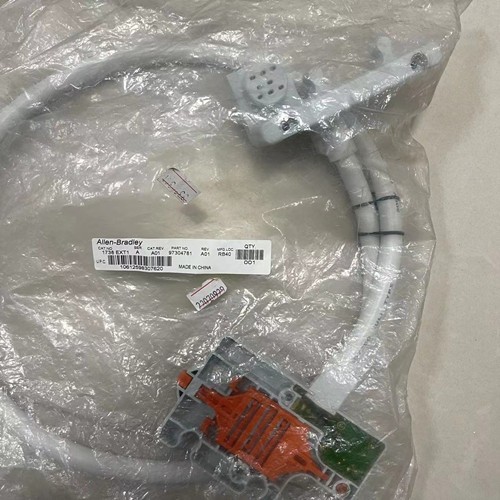

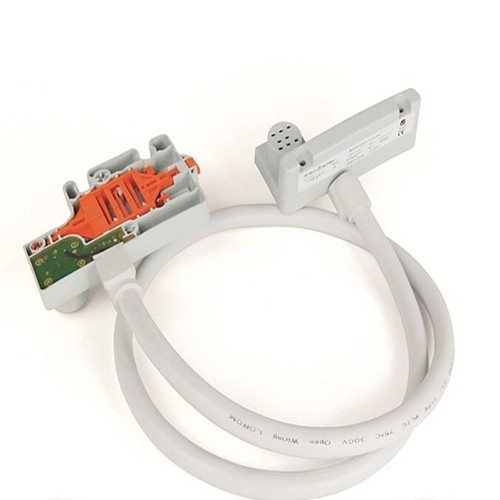

ALLEN BRADLEY ArmorPoint 3 Meter Cable 1738-EXT1 Bus Extension Base NEW
  1. ALLEN BRADLEY ArmorPoint 3 Meter Cable 1738-EXT1 Bus Extension Base NEW
  2. ALLEN BRADLEY ArmorPoint 3 Meter Cable 1738-EXT1 Bus Extension Base NEW

ALLEN BRADLEY ArmorPoint 3 Meter Cable 1738-EXT1 Bus Extension Base NEW

White cable  , AB three meter cable  , AB Rockwell bus Extension Base
Send Inquiry Live chat

Description

ALLEN BRADLEY ArmorPoint 3 Meter Cable 1738-EXT1 Bus Extension Base NEW



Description:
1738-EXT extension units come in two cable lengths:
•1738-EXT1 = 1 meter (3.3 feet)
• 1738-EXT3 = 3 meters (10 feet)


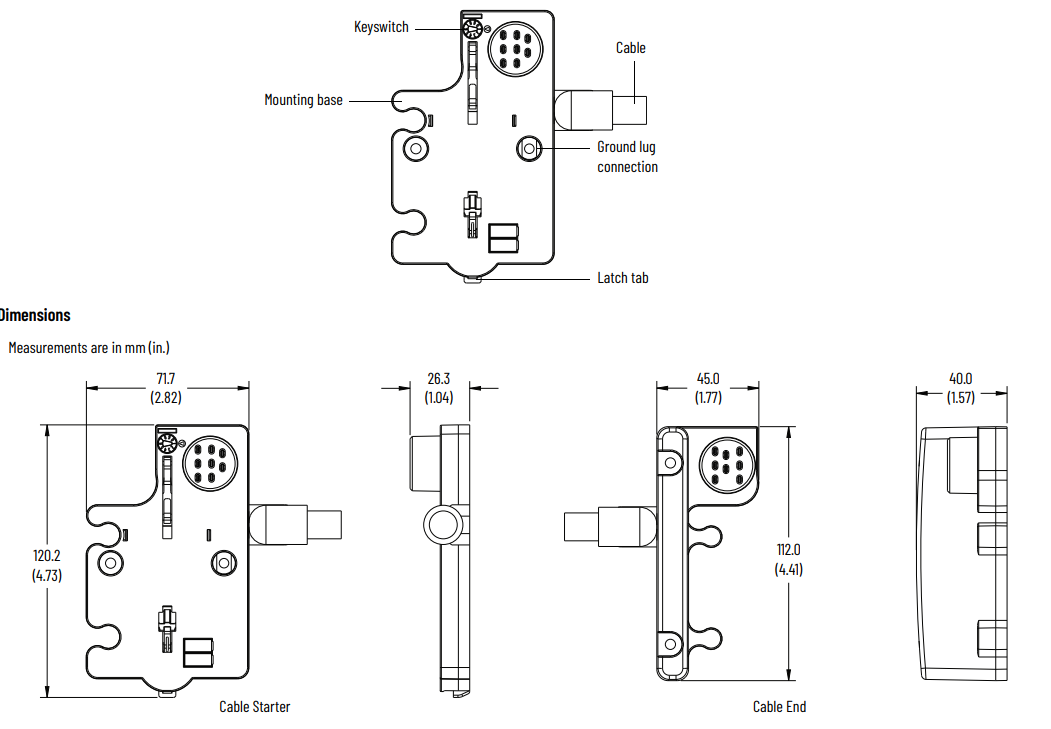

Mounting Requirements:
Follow these requirements when installing a 1738-EXT extension unit in an ArmorPOINT I/O system.
• An ArmorPOINT I/O system supports up to two banks of modules, up to the maximum supported by the adapter, which are connected with the cable.
• Do not bend the cable to a radius smaller than 70 mm (2.76 in.).
• Verify that there is a minimum cable length of 30.7 mm (1.21 in.) from the edge of either base to the closest bend.
• Tie excess cable lengths into a loop, and route it in the wireways or secure them to the panel




Application Rules for Extension Units
The following rules apply for both the 1738-EXT1 and 1738-EXT3 extension unit.
• For all adapters except the 1738-ADNX: • Up to four extension units can be used per network adapter.
• For the 1738-ADNX adapter: • Only one extension unit can be used if there are fewer than 32 modules on the backplane.
• The first module after an extension unit must be either a 1738-FPD or a 1738-EP24DC.
• A 1738-EP24DC is needed: - if additional backplane power is needed because of module current consumption, or - after two extension units.
• A 1738-FPD is needed in all other configurations. The only exception to this rule is if the modules in the segment after the extension unit are only 1738-IT2IM12s, 1738-IR2M12s, 1738-OW4M12s, or 1738-OW4M12ACs. If only these modules are used, no 1738-FPD or 1738-EP24DC is needed.
• The number or mix of modules you use between extension units does not matter as long as you do not exceed the rated current out put of the adapter or 1738-EP24DC.



HMI Touch Screen

Display Modules (700 to 1500 only)

Model Description
2711P-RDK7C
700 keypad color display
2711P-RDT7C
700 touch color display
2711P-RDT7CM
700 touch color display, marine certified
2711P-RDB7C
700 keypad and touch color display
2711P-RDB7CM
700 keypad and touch color display, marine certified
2711P-RDT7CK
Conformal-coated 700 touch color display
2711P-RDK10C
1000 keypad color display
2711P-RDT10C
1000 touch color display
2711P-RDT10CM
1000 touch display, marine certified
2711P-RDB10C
1000 keypad and touch color display
2711P-RDB10CM
1000 keypad and touch display, marine certified
2711P-RDK12C
1250 keypad color display
2711P-RDT12C
1250 touch color display
2711P-RDT12AG
1250 touch color display with antiglare overlay
2711P-RDT12CK
Conformal-coated 1250 touch color display
2711P-RDT12H
1250 high-bright touch color display
2711P-RDB12C
1250 keypad and touch color display
2711P-RDK15C
1500 keypad color display
2711P-RDT15C
1500 touch color display
2711P-RDT15AG
1500 touch color display with antiglare overlay
2711P-RDB15C
1500 keypad and touch color display

Logic Modules (700 to 1500 only)

Standard Logic Modules for PanelView Plus Terminals

And CE Logic Modules for PanelView Plus CE Terminals

Model Description
2711P-RP
Logic module without flash/RAM memory, DC input
2711P-RPD
Logic module, without memory, isolated DC input, marine certified
2711P-RPA
Logic module without flash/RAM memory, AC input, marine certified
2711P-RP1
Logic module with 64 MB flash/64 MB RAM, DC input
2711P-RP1A
Logic module with 64 MB flash/64 MB RAM, AC input, marine certified
2711P-RP1D
Logic module with 64MB, isolated DC input, marine certified
2711P-RP2
Logic module with 128 MB flash/128 MB RAM, DC input Compatible with ViewPoint Software.
2711P-RP2A
Logic module with 128 MB flash/128 MB RAM, AC input, marine certified
2711P-RP2D
Logic module with 128MB, isolated DC input, marine certified
2711P-RP2DK
Conformal-coated logic module with 128MB, isolated DC input
2711P-RP2K
Conformal-coated logic module with 128 MB flash/128 MB RAM, DC input
2711P-RP3
Logic module with 256 MB flash/256 MB RAM, DC input
2711P-RP3A
Logic module with 256 MB flash/256 MB RAM, AC input, marine certified
2711P-RP3D
Logic module with 256MB, isolated DC input, marine certified
2711P-RP6
CE logic module with 128 MB flash/128 MB RAM, DC input
2711P-RP6A
CE logic module with 128 MB flash/128 MB RAM, AC input, marine certified
2711P-RP6D
CE logic module with 128MB, isolated DC input, marine certified
2711P-RP6DK
CE conformal-coated logic module with 128MB, isolated DC input
2711P-RP6K
CE conformal-coated logic module with 128 MB flash/128 MB RAM, DC input
2711P-RP7
CE logic module with 256 MB flash/256 MB RAM, DC input
2711P-RP7A
CE logic module with 256 MB flash/256 MB RAM, AC input, marine certified
2711P-RP7D
CE logic module with 256 MB, isolated DC input, marine certified




About the Unit

The ArmorPOINT extension unit is used to extend the backplane to additional I/O modules.





Our advantage products:

AB:  Input / Output Module / Touch Screen
ABB:  Inverter/ I/O Module
GE: IC200/ 693 / 694 etc. series
SIEMENS: 6ES7 / 6EP / 6AV / 6SE etc.
