Description

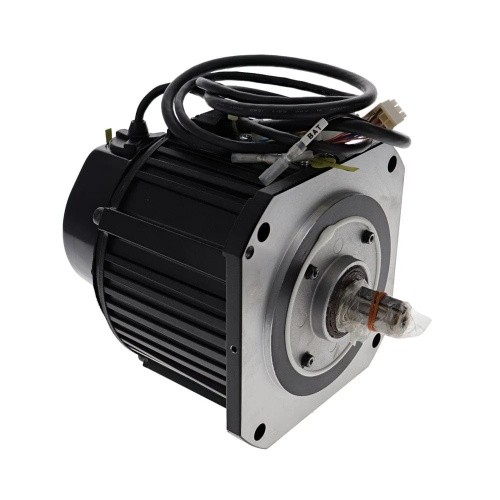

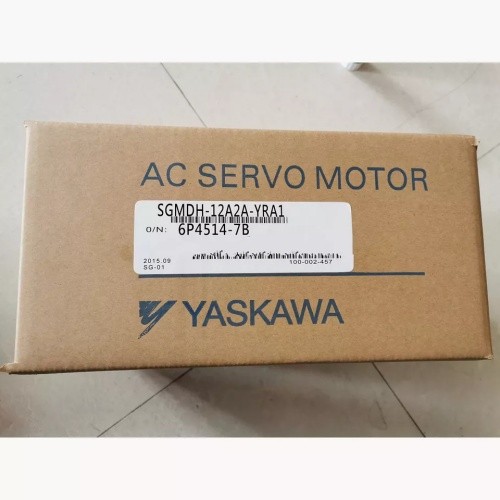

Yaskawa Electric 1150W AC Servo Motor SGMDH-12A2A-YRA1 Servomotor Rated 2000RPM 200V 7.3A New
Overview
MOTOR, AC SERVO, 1.2KW, PX2850, S/U-AXIS
YASKAWA-ROBOTS & SPARE PARTS Part #: SGMDH-12A2A-YRA1
Description
| Model |
SGMDH-12A2A-YRA1 is a Motors-AC Servo produced by Yaskawa |
|
Servomotor Type |
SGMDH Series |
|
Rated Output |
1150W |
|
Power Supply |
200V |
| Current | 7.3A |
| Speed | 2000rpm |
| Condition | New Original |
| Country of Origin | Japan |
| Similar Motors |
SGMDH-12A2A-YR14 SGMDH-12A2A-YRA1 SGMDH-12A2A-YR15 SGMDH-06A2A-YR13 SGMDH-06A2A-YR14 SGMDH-06A2A-YR24 SGMDH-06A2A-YR25 SGMSV-25ADA-SB11 SGMDH-32A2A-YRA1 SGMDH-32A2B-YR13 SGMDH-22A2A-YR14 SGMDH-32A2A-YR51 SGMDH-45A2B-YR15 SGMDH-22ACA61 SGMDH-32A2A2C SGMDH-40ACA2B SGMDH-40ACA2C SGMDH-40ACA2D
SGM7G-1EAFA61 |
About AC Servomotor
AC servomotors are divided into two types: synchronous type and induction type. The synchronous type is more commonly used. For a synchronous type servomotor, motor speed is controlled by changing the frequency of alternating current. A synchronous type servomotor provides strong holding torque when stopped, so this type is ideal when precise positioning is required. Use this type for a servo mechanism for position control.
A servomotor must have “instantaneous power” so that it can start as soon as a start reference is received. The term “power rating (kW/s)” is used to represent instantaneous power. It refers to the electric power (kW) that a servomotor generates per second. The greater the power rating, the more powerful the servomotor.

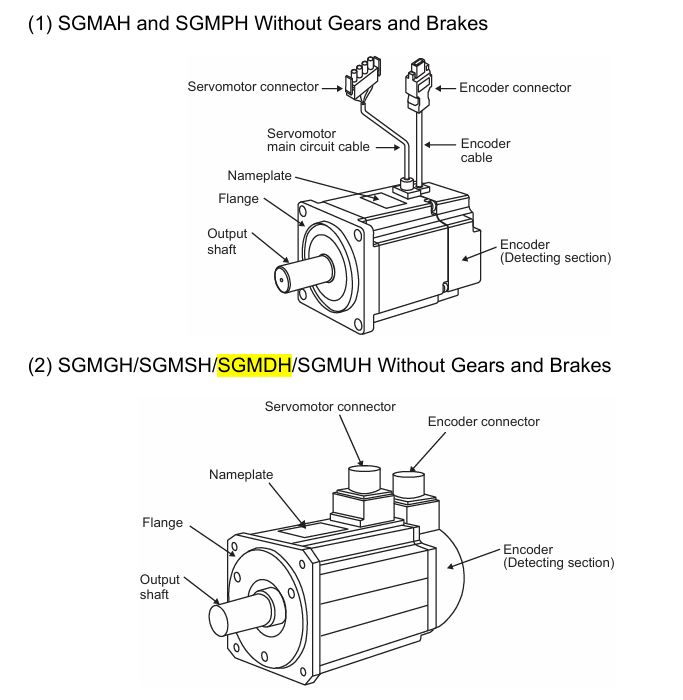

The following figure illustrates the structure of a synchronous type servomotor:
SGMDH Series Servo Motor
SGMDH-22ACA2B
SGMDH-22ACA21
SGMDH-22ACA2C
SGMDH-22ACA2D
SGMDH-22ACA2E
SGMDH-22ACA2S
SGMDH-22ACA6B
SGMDH-22ACA61
SGMDH-22ACA6C
SGMDH-22ACA6D
SGMDH-22ACA6E
SGMDH-22ACA6S
SGMDH-22A2A6B
SGMDH-22A2A61
SGMDH-22A2A6C
SGMDH-22A2A6D
SGMDH-22A2A6E
SGMDH-22A2A6S
SGMDH-32A2A6B
SGMDH-32A2A61
SGMDH-32A2A6C
SGMDH-32A2A6D
SGMDH-32A2A6E
SGMDH-32A2A6S
SGMDH-40A2A6B
SGMDH-40A2A61
SGMDH-40A2A6C
SGMDH-40A2A6D
SGMDH-40A2A6E
SGMDH-40A2A6S
Other Servo Motors
Model no.
Manufacture
Type
SGM-02V3B4
Yaskawa Electric
AC Servo Motor
SGM-02VW12
Yaskawa Electric
AC Servo Motor
SGM-04U3B4L
Yaskawa Electric
AC Servo Motor
SGM-04V312
Yaskawa Electric
AC Servo Motor
SGM-04V3B4
Yaskawa Electric
AC Servo Motor
SGM-08A314
Yaskawa Electric
AC Servo Motor
SGM-08U2HA12
Yaskawa Electric
AC Servo Motor
SGM-08V312
Yaskawa Electric
AC Servo Motor
SGM-08V3B4
Yaskawa Electric
AC Servo Motor
SGM-08VW12
Yaskawa Electric
AC Servo Motor
SGM-01V3B4
Yaskawa Electric
AC Servo Motor
Servo Drive
SGDE-08AS
SGDE-A3AP
SGDE-A5AP
SGDE-A5BP
SGDF-A1CP
SGMM-A1C312
SGDF-A1CS
SGDF-A2CP
SGDF-A2CS
SGMM-A2C313
SGDF-A3CP
SGDF-A3CS
SGDF-B5CP
SGDG-04GT-F
SGDH-01AE
SGDH-01AE
SGDH-01ADA
SGDH-01AE
SGMAH-01AAA21
SGDH-01AE
SGMPH-01AAA2C
SGDH-01AE
SGMPH-01AAA21
SGDH-02AE
SGDH-02AE-0Y
SGDH-04AE
SGDH-04AE-N2-RY49
SGDH-04AE-OY
SGDH-04AEY291
SGDH-05AE
SGDH-05AEY291
SGDH-05DE
SGDH-05DE-OY
SGDH-08AE
SGDH-08AE
SGDH-08ADA
SGDH-08AE-OY
SGDH-08AE-SY202
SGDH-08DE

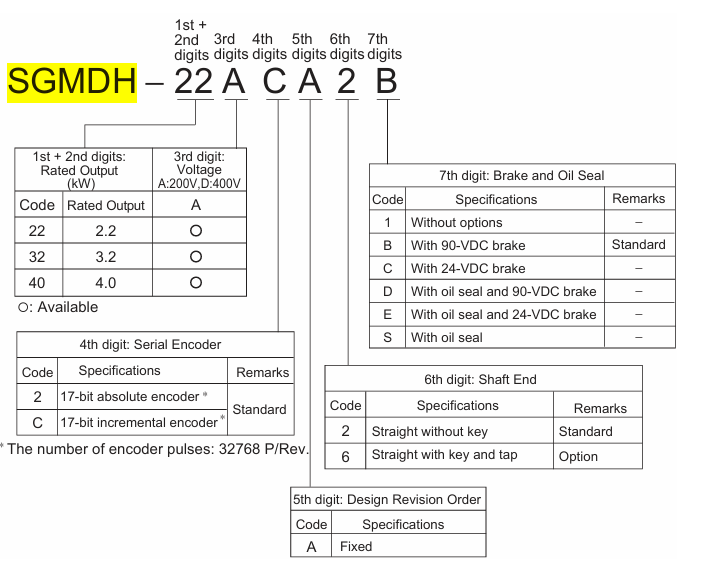

Model SGMDH (2000 min-1)
• SGMDH servomotors are provided with 90-VDC brakes as standard. (The seventh digit: B)
• Servomotors with backlash gears are not available for the model SGMDH.
