Description

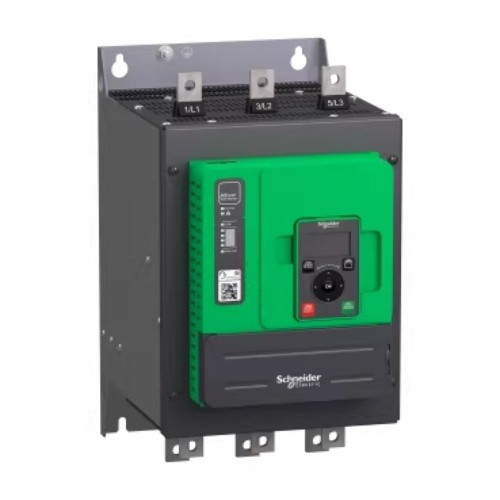

Schneider Electric Three Phase Altivar SoftStarter ATS480D75Y Altistart 480 75A 208-690V New
Specifications of ATS480D75Y
| Brand | Schneider Electric |
|
Range of product |
Altistart 48 |
|
Product or component type |
Soft starter |
| Model |
ATS480D75Y |
| Details |
Soft starter, Altistart 480, 75A, 208 to 690V AC, control supply 110 to 230V AC |
| Other Related Softstarter |
ATS480D17Y【17A 7.5kW】 ATS480D22Y【22A 11kW】 ATS480D32Y【32A 15kW】 ATS480D38Y【38A 18.5kW】 ATS480D47Y【47A 22kW】 ATS480D62Y【62A 30kW】 ATS480D75Y【75A 37kW】 ATS480D88Y【88A 45kW】 ATS480C11Y【110A 55kW】 ATS480C14Y【140A 75kW】 ATS480C17Y【170A 90kW】 ATS480C21Y【210A 110kW】 ATS480C25Y【250A 132kW】 ATS480C32Y【320A 160kW】 ATS480C41Y【410A 220kW】 ATS480C48Y【480A 250kW】 ATS480C59Y【590A 315kW】 ATS480C66Y【660A 355kW】 ATS480C79Y【790A 400kW】 ATS480M10Y【1000A 500kW】 ATS480M12Y【1200A 630kW】 |
Description:
Altivar Soft Starter ATS480 is intended to start and stop asynchronous motors supplied from 208V to 690V. It meets the requirements of the most demanding applications in normal and heavy duty. With an operational rated current of 75A in normal duty, it supplies motor from 18,5kW to 55kW according to mains voltage. Designed for digitization, connected, optimized to meet cybersecurity standard, it simplifies project execution and maximizes the availability of applications. Its torque control (TCS) masters acceleration and deceleration. It efficiently stops high inertia application thanks to the dynamic braking and DC injection. It could be connected in-line or inside the delta to reduce its operational current. The embedded test routine simplifies the commissioning inside the delta. Its dimensions are 190mm (width) x 247mm (depth) x 290mm (height) and it weighs 8,3kg. Altivar Soft Starter ATS480 is designed to address process, infrastructures and industrial machines. It conforms to IEC/EN60947-4-1. It is certified CE, cULus, UKCA, CCC, RCM, EAC, and Marine certified DNV, ABS, BV and CCS. Display terminals, remote mounting kit, communication modules are common with Altivar Drives. Line chokes, DNV kits are common with ATS48. ATS480 is compatible with ATS48, it has same footprint, fixing, torque control algorithm, I/O, menus… The integration of Altivar Soft Starter ATS480 in EcoStruxure drastically simplifies architecture selection, detailed design and execution in automation and electrical systems. It is a Green Premium product designed to take the environmental considerations beyond current directives and regulations, compliant with RoHS and REACH.
More Soft Starter
ATS48C41Q
ATS48C59Q
ATS22C32Q
ATS22C41Q
ATS22C48Q
ATS22C59Q
ATS48C41Q 220KW
ATS38C48Q 250KW
ATS48C59Q 315KW
ATS48C66Q 355KW
ATS48C14Q
ATS48C17Q
ATS48D75Q
ATS48C14Q

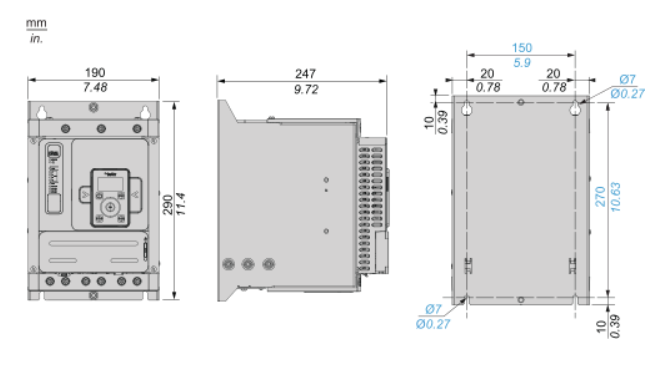

Dimensions
Front, Side and Rear View
