Description

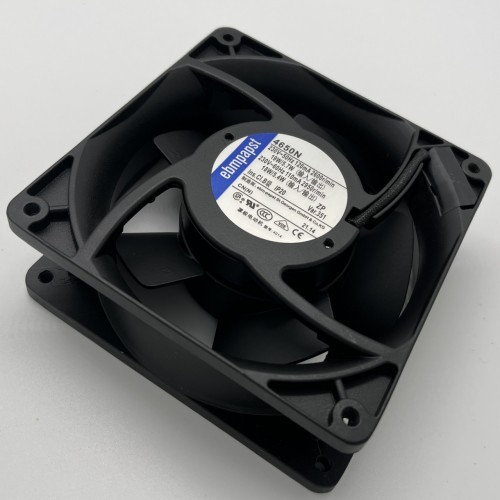

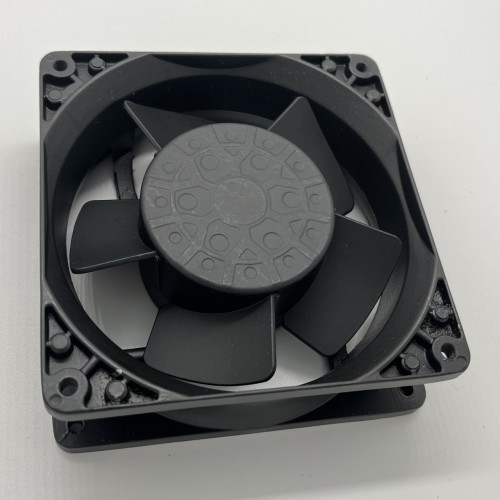

New in stock Germany EBMPAPST Blower 4650N AC Tube axial Cooling Fan
| Brand | EBMPAPST |
| Model | 4650N |
|
Weight |
0.550 kg |
|
Dimensions |
119 x 119 x 38 mm |
|
Impeller material |
Sheet steel, painted black |
|
Housing material |
Die-cast aluminum |
|
Airflow direction |
Intake over struts |
|
Direction of rotation |
Clockwise, viewed toward rotor |
|
Storage |
Sintec sleeve bearing |
|
Service life L10 at 40 °C |
37500 h |
|
Service life L10 at maximum temperature |
27500 h |
|
Cable |
2 flat plugs 3.0 x 0.5 mm. Housing with grounding lugs with M4 and UNC thread. |
|
Motor protection |
Protected from overload by impedance protection |
|
Approval |
VDE, CSA, UL, CE |
|
Option |
Versions with reinforced mounting flanges and exposed external leads |
4650N Product details
AC Fans Tubeaxial Fan, 119x119x38mm, 230VAC, 94.2CFM, 19W, 46dBA, 2650RPM, Sintec
- AC fans with external rotor shadedpole motor. Impedance protected against overloading.
- Metal fan housing and impeller.
- Air intake over struts. Rotational direction CW looking at rotor. Types 4890N and 4840N air exhaust over struts.
- Mounting from either face using four 4.3 mm holes.
- Fan housing with ground lug for screw M4 and UNC.
- Electrical connection: Terminals with 2 flat pins 2.8 x 0.5 mm.
- UL, CSA, VDE approvals on most models, please contact application engineering.
Ralated Cooling Fan
4650N
4656N
4650N-465
4650N
4656N
4656X
4650Z
4656Z
4650X
4650N-A06
4658N

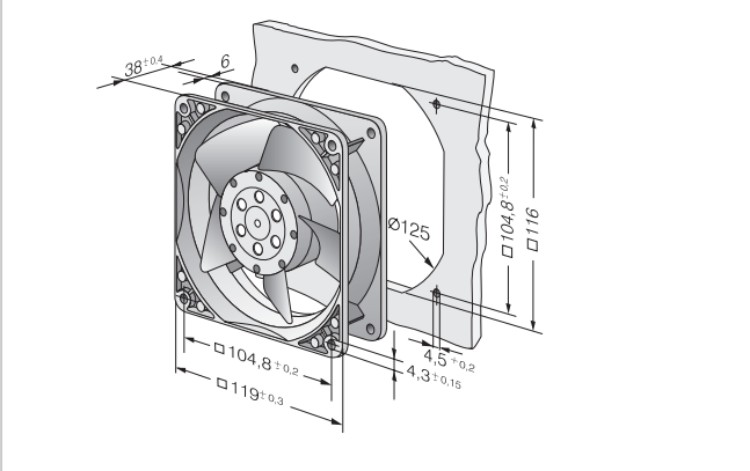

Product Drawing
