Description

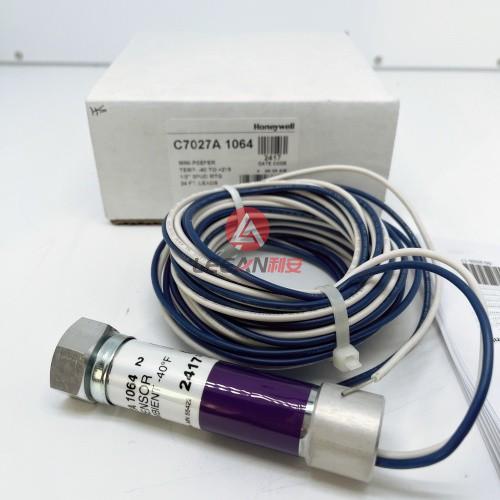

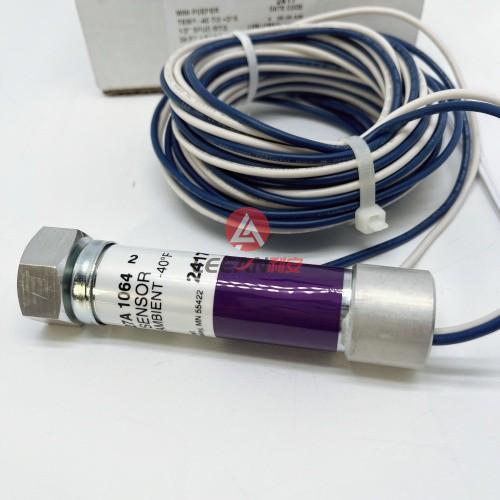

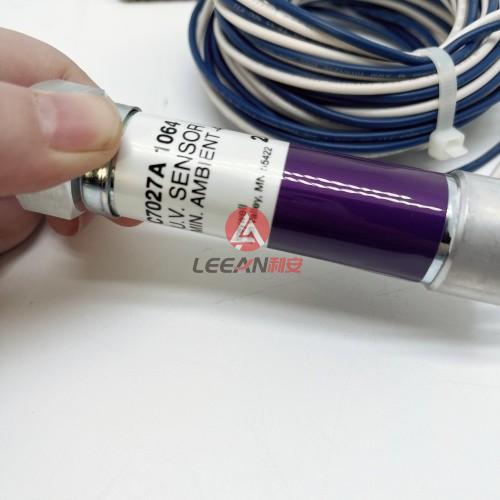

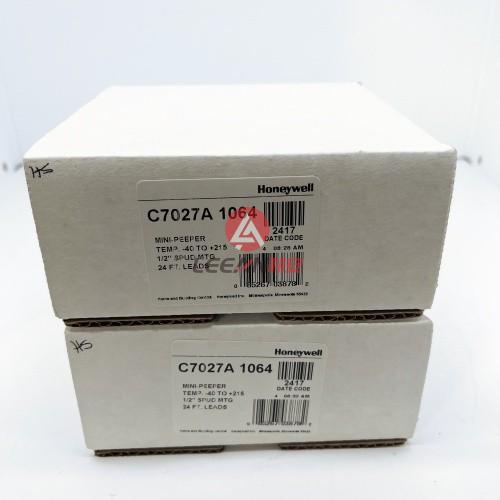

Honeywell Minipeeper UV Sensor C7027A1064 Compact Analogue Flame Sensors New
Overview
Compact analogue UV flame sensor to detect ultraviolet radiations emitted by combustion flames.
Used with Honeywell burner controls to provide flame supervision for commercial and industrial burner applications.
Compact flame detector for use with flame safeguard controls with ultraviolet amplifiers.
Features
Use with Honeywell Flame Safeguard primary safety controls and burners requiring ultraviolet flame detection.
C7027 mounts on a 1/2 in. sighting pipe by using an integral collar.
Detectors can be wired in parallel for difficult sighting applications.
C7027 seals against pressures up to 5 psi (34.5kPa) when correctly installed.
Allows for blast tube mounting due to compact size.
C7044 mounts with a two screw bracket.
The C7044 UV sensor tube is enclosed in a stainless steel housing.
C7044 has the capability of side or end viewing in flame monitoring applications.
Details
Used With:
R7249A Series
R7249B Series
R7849A Series
R7849B Series
R7749B Series
R7259 Series
R7290 Series
Brand
Honeywell
Model
C7027A1064
Specifications
Application:Gas, Oil or Coal fired burners
Min Temp (F):-40°F
Max Temp (F):215°F
Temperature Range (F):-40°F to 215°F
Lead Wire Length: 288"
Flame Sensors
C7027A1023
C7027A1049
C7027A1072
C7035A1023
C7035A1064
C7027A1031
C7027A1023
C7027A1072
C7027A1064
C7027A1056
C7027A1114
C7035A1064
C7035A1023
C7035A1031
C7035A1080
C7035A1049
Condition
New Original
Honeywell Flame Detectors
R7861A1034
R7847B1064
R7861A1026
R7849A1015
R7847A1025
R7861A1026
R7849A1023
R7847A1033
R7861A1034
R7847A1074
R7847A1025
R7847A1082
R7852A1001
R7849A1098
R7845A1023
R7847B1064
R7852A1001
R7861A1034
R7851C1008
R784231042
R7886A1001
R7852B1009
R7847A1025/U

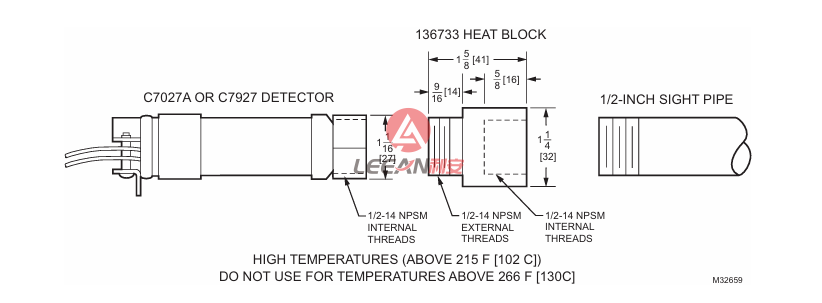

Mounting dimensions of 136733 Heat Block in in. (mm).
