Description
ABB 55KW LV AC Industrial Wall-Mounted Single Drive ACS880-01-105A-3 Frequency INverter New
Description
The ACS880-01 drives are customized to meet the particular needs of specific industries, such as oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, sawmills, marine, water and wastewater, food and beverage, and automotive. They can control a wide range of applications, including cranes, extruders, winches, winders, conveyors, mixers, compressors, centrifuges, test benches, elevators, extruders, pumps, and fans. The ACS880-01 comes in one compact package for easy installation and commissioning. The drive can be installed on the wall as standard and in a cabinet as an option. The drive offering includes enclosure classes up to IP55, making it suitable for most environments and installations. ACS880-01 drives have all the essential features built-in. These features include as standard a choke for harmonic filtering as well as options like a brake chopper, EMC filter and communication protocol adapter, functional safety, external output filters, and I/O extension modules.
Details
|
Product Name |
AC Drive |
|
Manufacturer |
ABB |
|
ABB Description |
ACS880-01-105A-3 |
| Rated Power | 55KW |
| Current | 105A |
|
Country of Origin |
Finland (FI) |
|
Shipping Weight in wooden box |
65 kg |
| ACS880-01 Series Drives |
ACS880-01-04A6-2 R1 ACS880-01-06A6-2 R1 ACS880-01-07A5-2 R1 ACS880-01-10A6-2 R1 ACS880-01-16A8-2 R2 ACS880-01-24A3-2 R2 ACS880-01-031A-2 R3 ACS880-01-046A-2 R4 ACS880-01-061A-2 R4 ACS880-01-075A-2 R5 ACS880-01-087A-2 R5 ACS880-01-115A-2 R6 ACS880-01-145A-2 R6 ACS880-01-170A-2 R7 ACS880-01-206A-2 R7 ACS880-01-274A-2 R8 ACS880-01-02A4-3 R1 ACS880-01-03A3-3 R1 ACS880-01-04A0-3 R1 ACS880-01-05A6-3 R1 ACS880-01-07A2-3 R1 ACS880-01-09A4-3 R1 ACS880-01-12A6-3 R1 ACS880-01-017A-3 R2 ACS880-01-025A-3 R2 ACS880-01-032A-3 R3 ACS880-01-038A-3 R3 ACS880-01-045A-3 R4 ACS880-01-061A-3 R4 ACS880-01-072A-3 R5 ACS880-01-087A-3 R5 ACS880-01-105A-3 R6 ACS880-01-145A-3 R6 ACS880-01-169A-3 R7 ACS880-01-206A-3 R7 ACS880-01-246A-3 R8 ACS880-01-293A-3 R8 ACS880-01-363A-3 R9 ACS880-01-430A-3 R9 ACS880-01-02A1-5 R1 ACS880-01-03A0-5 R1 ACS880-01-03A4-5 R1 ACS880-01-04A8-5 R1 ACS880-01-05A2-5 R1 ACS880-01-07A6-5 R1 ACS880-01-11A0-5 R1 ACS880-01-014A-5 R2 ACS880-01-021A-5 R2 ACS880-01-027A-5 R3 ACS880-01-034A-5 R3 ACS880-01-040A-5 R4 ACS880-01-052A-5 R4 ACS880-01-065A-5 R5 ACS880-01-077A-5 R5 ACS880-01-096A-5 R6 ACS880-01-124A-5 R6 ACS880-01-156A-5 R7 ACS880-01-180A-5 R7 ACS880-01-240A-5 R8 ACS880-01-260A-5 R8 ACS880-01-361A-5 R9 ACS880-01-414A-5 R9 ACS880-01-07A3-7 R5 ACS880-01-09A8-7 R5 ACS880-01-14A2-7 R5 ACS880-01-018A-7 R5 ACS880-01-022A-7 R5 ACS880-01-026A-7 R5 ACS880-01-035A-7 R5 ACS880-01-042A-7 R5 ACS880-01-049A-7 R5 ACS880-01-061A-7 R6 ACS880-01-084A-7 R6 ACS880-01-098A-7 R7 ACS880-01-119A-7 R7 ACS880-01-142A-7 R8 ACS880-01-174A-7 R8 ACS880-01-210A-7 R9 ACS880-01-271A-7 R9 We can offer any series ABB Drives with good price. If you need other models, pls feel free to contact us. |
ABB ACS580-01 Series AC Drive
ACS580-01-04A6-2 4.6 4.6 0.75 1.0 OFAF000H25 170M1563 JJS-15 3×1.5 + 1.5 14 R1
ACS580-01-06A6-2 6.6 6.6 1.1 1.5 OFAF000H25 170M1563 JJS-15 3×1.5 + 1.5 14 R1
ACS580-01-07A5-2 7.5 7.5 1.5 2.0 OFAF000H25 170M1563 JJS-15 3×1.5 + 1.5 14 R1
ACS580-01-10A6-2 10.6 10.6 3.0 3.0 OFAF000H25 170M1563 JJS-15 3×1.5 + 1.5 14 R1
ACS580-01-017A-2 16.7 16.7 4.0 5.0 OFAF000H25 170M1563 JJS-30 3×2.5 + 2.5 10 R1
ACS580-01-024A-2 24.2 24.2 5.5 7.5 OFAF000H40 170M1565 JJS-40 3×4.0 + 4.0 8 R2
ACS580-01-031A-2 30.8 30.8 7.5 10.0 OFAF000H40 170M1565 JJS-40 3×6.0 + 6.0 8 R2
ACS580-01-046A-2 46.2 46.2 11.0 15.0 OFAF000H63 170M1566 JJS-80 3×10 + 10 6 R3
ACS580-01-059A-2 59.4 59.4 15 20 OFAF000H63 170M1566 JJS-80 3×10 + 10 4 R3
ACS580-01-02A1-4 2.1 2.1 0.75 1.0 OFAF000H4 170M1561 JJS-15 3×1.5 + 1.5 14 R1
ACS580-01-03A0-4 3.0 3.0 1.1 1.5 OFAF000H6 170M1561 JJS-15 3×1.5 + 1.5 14 R1
ACS580-01-03A5-4 3.5 3.5 1.5 2.0 OFAF000H6 170M1561 JJS-15 3×1.5 + 1.5 14 R1
ACS580-01-04A8-4 4.8 4.8 2.2 3.0 OFAF000H10 170M1561 JJS-15 3×1.5 + 1.5 14 R1
ACS580-01-06A0-4 6.0 6.0 3.0 3.0 OFAF000H10 170M1561 JJS-15 3×1.5 + 1.5 14 R1
ACS580-01-07A6-4 7.6 7.6 4.0 5.0 OFAF000H16 170M1561 JJS-15 3×2.5 + 2.5 14 R1
ACS580-01-012A-4 12.0 12.0 5.5 7.5 OFAF000H16 170M1561 JJS-15 3×2.5 + 2.5 14 R1
ACS580-01-014A-4 14.0 14.0 7.5 10.0 OFAF000H25 170M1563 JJS-30 3×2.5 + 2.5 12 R2
ACS580-01-023A-4 23.0 23.0 11.0 15.0 OFAF000H32 170M1563 JJS-30 3×6 + 6 10 R2
ACS580-01-027A-4 27.0 27.0 15.0 20.0 OFAF000H40 170M1565 JJS-40 3×10 + 10 8 R3
ACS580-01-034A-4 34.0 34.0 18.5 25.0 OFAF000H50 170M1565 JJS-60 3×10 + 10 8 R3
ACS580-01-044A-4 44.0 44.0 22.0 30.0 OFAF000H63 170M1566 JJS-60 3×10 + 10 6 R3
ACS580-01-02A7-6
ACS580-01-03A9-6
ACS580-01-06A1-6
ACS580-01-09A0-6
ACS580-01-011A-6
ACS580-01-017A-6
ACS580-01-022A-6
ACS580-01-027A-6
ACS580-01-032A-6

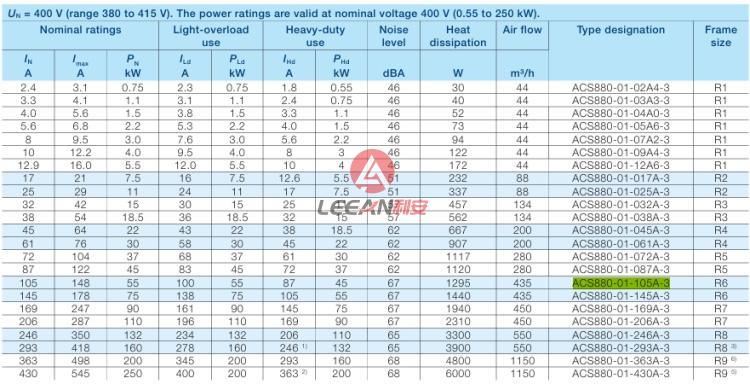

Specifications of AC Drive ACS880-01-105A-3
How to select a drive

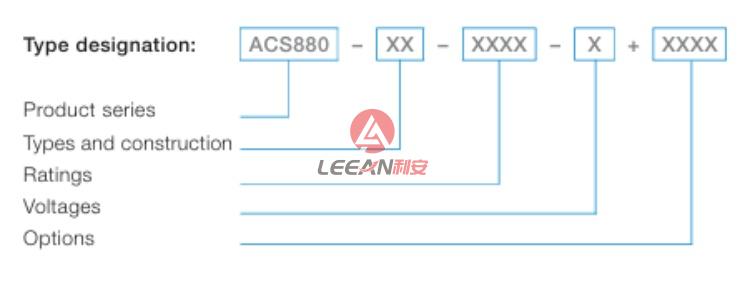

Many of the features for the ACS880 single drives are built-in as standard, making selection easy. A wide range of options are available to optimize the drive for different requirements. To choose the right drive for your application, please refer to the rating tables on page 12, 13, 15, 16, 18 and 21 or use ABB’s DriveSize dimensioning tool (page 36). The selected drive has a unique type designation, which identifies the drive by construction, power and voltage range. The options are added to the type designation with a “plus” code. Build up your own ordering code using the type designation key or contact your local ABB drives sales office and let them know your needs/requirements.
