Description

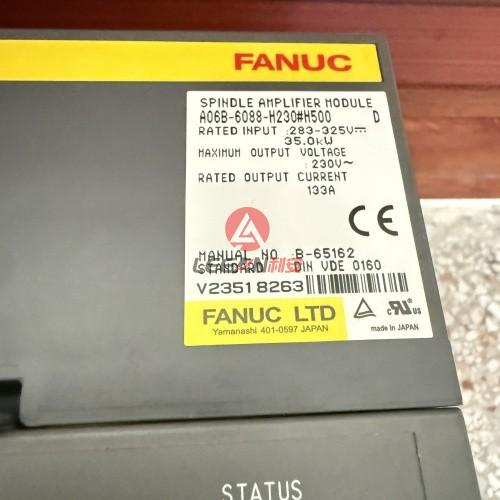

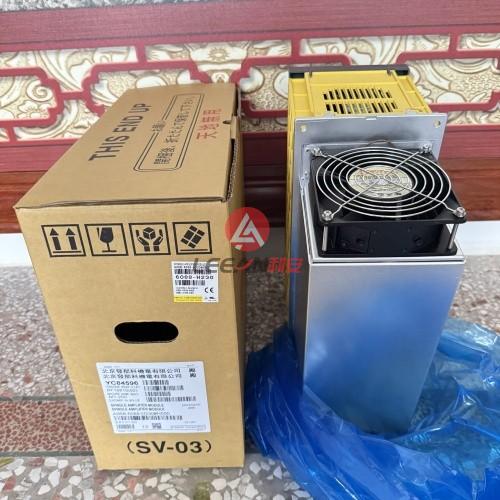

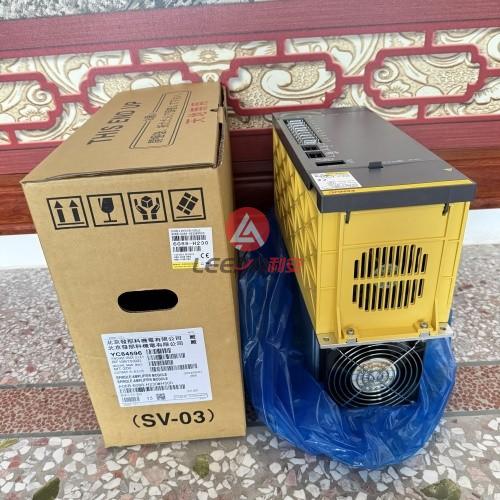

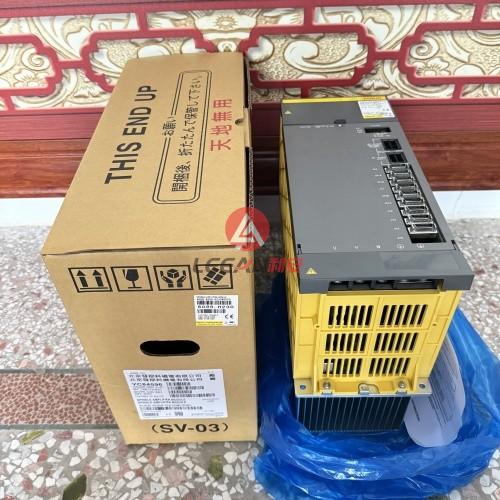

FANUC CNC A06B-6088 Series AC Spindle Amplifier Module A06B-6088-H230#H500 Servomotor Drive 35KW New
Overview
The FANUC A06B-6088-H230#H500 Spindle Amplifier Module (SPM-30, Alpha Series) delivers stable, industrial-grade spindle drive power. With 283–325 V AC input and output capability up to 230 V / 133 A (≈ 35 kW), it ensures precise spindle motor control for CNC machining centers and automation systems.
The A06B-6088-H230#H500 is an SPM 30 spindle amp module manufactured by Fanuc. These products are manufactured in Japan and are designed for Commodity production, advanced machining, and CNC milling.
The spindle amplifier module should be chosen based on the specific type of motor being used to drive a spindle motor. There are three different types of spindle amplifier modules available, as described below:
The Spindle amplifier module (SPM) is designed for spindle motors requiring a 200-V input series.
The Spindle amplifier module (SPMC) is suitable for use with the αC series spindle motor.
The Spindle amplifier module (SPM-HV) is designed to drive spindle motors that require a 400-V input series.
Specifications
FANUC
283-325V
230V~
A06B-6077-H111#EM
Product:
Spindle Amplifier Module
Part Number:
A06B-6088-H230#H500
Manufacturer:
Rated Input:
35.0kW
Maximum Output Voltage
Rated Output Current
133A
Condition:
New Original
Warranty:
1 Year
Weight after Package :
10 KG
