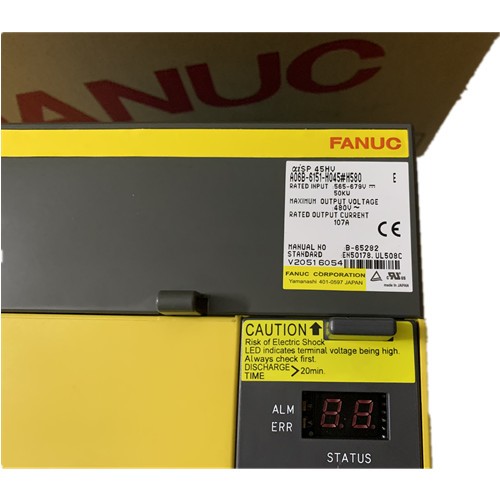

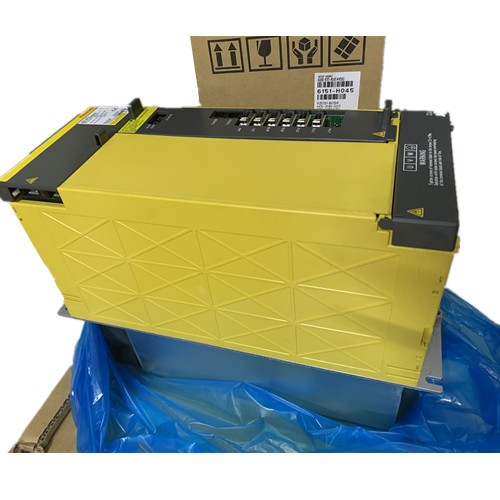

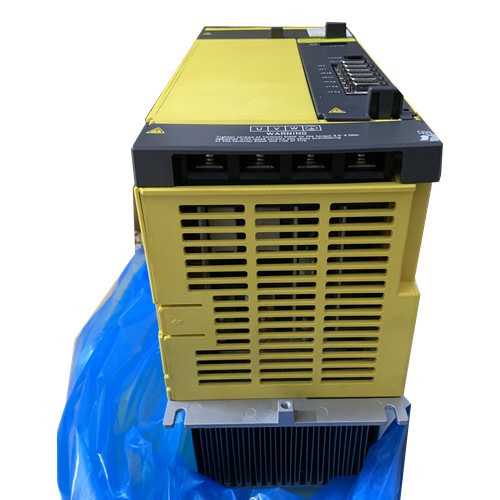

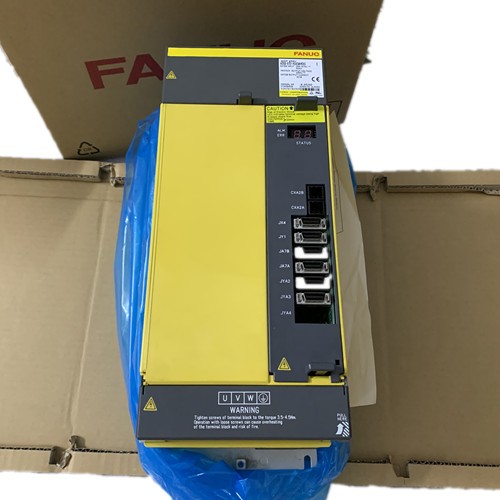

FANUC AiSP 45HV CNC SPINDLE AMPLIFIER MODULE A06B-6151-H045#H580 50kw AC SERVO DRIVE

Description

FANUC AiSP 45HV CNC SPINDLE AMPLIFIER MODULE A06B-6151-H045 #H580 50kw AC SERVO DRIVE

Details of servo driver A06B-6151-H045 #H580 :

More information:

The spindle amplifier module A06B 6151 H075 #H580 is an αi SP 75HV module manufactured by Fanuc for the αi SP series as a 1 spindle sensor input unit. The αi SP is one of two types in the αi SP series.  The two types are the 200-V input series and the 400V input series.  The 200-V series drives a spindle motor of the 200-V input series. The 400-V input series drives a spindle motor of the 400-V input series. The Fanuc A06B 6151 H075 #H580 is an amplifier that supports 400-V input.

Features of the A06B-6151-H045 #H580:

The CNC Fanuc spindle amp A06B 6151 H075 #H580 module is a three-phase 400 CAC to 480 VAC main power supply unit.  The αi SP 75HV has a rated output of 170 A and works with αi I 60HV motors. Applicable CNCs for this unit are 16i-B, 18i-B, 21i-B, 0i-B/C/D, and 30i/31i/32i. The speed control range for the A06B 6151 H075 #H580 is speed ratio 1:100. The speed variation rate is 0.1% or less of maximum speed. It has a -15% to +10% allowable voltage deviation. The power frequency for the A06B 6151 H075 #H580 αi SP 75HV is 50/60Hz, ±1Hz. The operation of the unit should be at an ambient temperature of 0 to 55°C. The humidity where the unit is operating should be at 90% RH or below and the vibration should be below 0.5 G. Installation should be in a magnetic cabinet.
