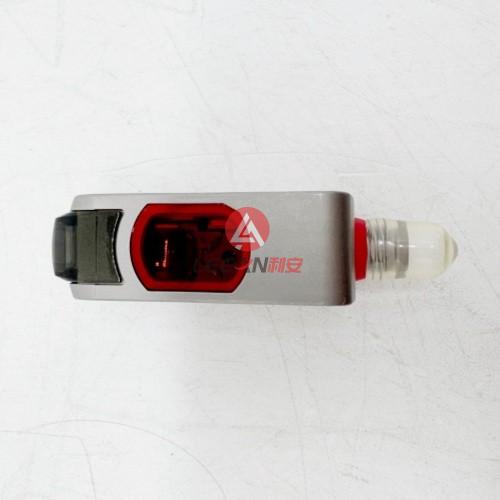

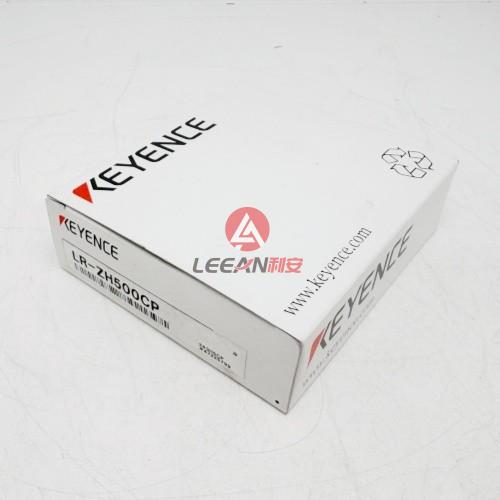

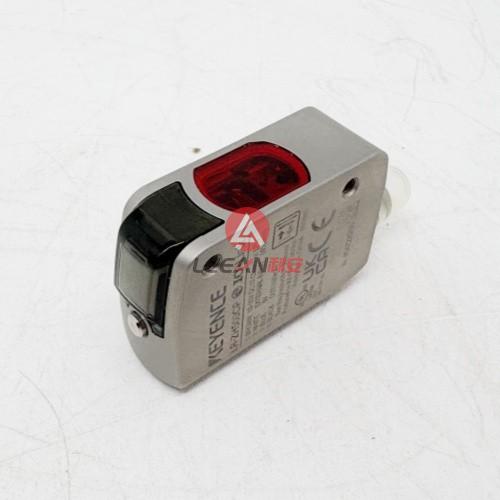

KEYENCE IO-Link LR-Z Series Self-contained CMOS Laser Sensor LR-ZH500CP Rectangular w/ M8 Connector New
Overview

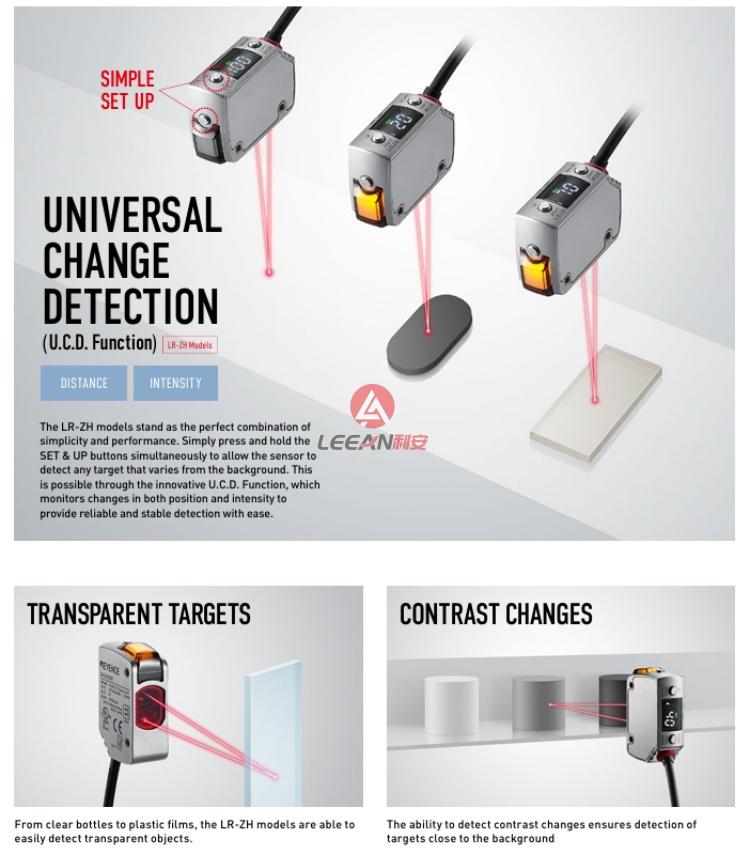

The LR-ZH models stand as the perfect combination of simplicity and performance. Simply press and hold the SET & UP buttons simultaneously to allow the sensor to detect any target that varies from the background. This is possible through the innovative U.C.D. Function, which monitors changes in both position and intensity to provide reliable and stable detection with ease.
The LR-Z Series provides highly stable detection and a wide array of uses. By using CMOS technology and a Light Power Control Function, the LR-Z's detection ability is not affected by target color, surface finish, or shape the way a conventional sensor can be.
Product Details
| Brand | KEYENCE |
| Type |
Self-contained CMOS Laser Sensor |
| Model |
LR-ZH500CP |
|
Technical Information |

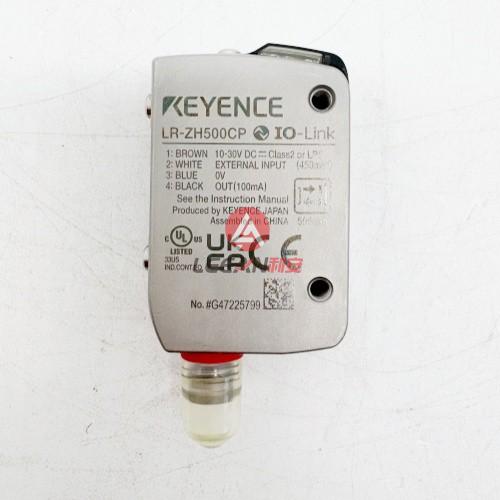

1.BROWN 10-30V DC Class2 or LPS 2.WHITE EXTERNAL INPUT (450mW) 3.BLUE 0V 4.BLACK OUT(100mA) Type:U.C.D. Function Distance based laser sensor Shape:Rectangular Output:PNP Cable connection:M8 connector, 4-pin Detectable distance:35 to 500 mm (465 to 0)*2 |
| Net Weight | 0.5KG |
| Warranty | One Year |
| Keyence Sensors |
LR-ZH490CB LR-ZB240CB LR-ZB90CB LR-ZH500N LR-ZH500P LR-ZH500CN LR-ZH500CP LR-ZH500C3P LR-ZB250AN LR-ZB250AP LR-ZB250CN LR-ZB250CP LR-ZB250C3P LR-ZB100N LR-ZB100P LR-ZB100CN LR-ZB100CP LR-ZB100C3P
LR-X50
PZ-G41CP
PZ-G41CNPZ-G41N PZ-G41P PZ-G42N PZ-G42P PZ-G42CP PZ-G42CN PZ-G51CP PZ-G51N PZ-G51P PZ-G51T PZ-G51NR PZ-G51PR PZ-G52N PZ-G52NR PZ-G52P PZ-G52T PZ-G51PR PZ-G102P PZ-G101N PZ-G101P PZ-G61P PZ-G61N PZ-G62N PZ-G62P PZ-G102N PZ-G51N PZ-G52N PZ-G101P PR-FB30N3 PZ2-41 PZ2-41P PZ2-42 PZ2-42P PZ2-42D PZ2-51 PZ2-51P PZ2-52 PZ2-52P PZ2-61 PZ2-61D PZ2-61P PZ2-62 PZ2-62P PZ-101 PZ-V11 PZ-V11P PZ-V31 PZ-V31P PZ-V32 PZ-V32P PZ-V33 PZ-V33P PZ-V35 PZ-V35P PZ-V71 PZ-V71P PZ-V73 PZ-V73P PZ-V75 PZ-V75P IX-1000 IX-080 LR-TB2000C GL-R64H GC-1000 GC-S16 GS-71PC SZ-01S GC-R48 GC-RE10 GC-RS10 GC-S84 If you have any need on SICK products,pls feel free to contact us. |
|
Mounting brackets/Reflectors/Cables |
OP-87408 OP-87409 OP-87410 OP-87413 OP-87404 OP-87405 OP-87406 OP-87407
OP-88025 OP-87123 OP-75721 OP-85502 OP-73864 OP-73865 OP-87627 OP-87636 OP-87637 OP-87628 OP-87629 OP-87402 OP-87621 OP-87622 OP-75722 OP-87274 OP-85497 OP-87631 OP-87640 OP-87641 OP-87632 OP-87633 OP-87403 OP-87619 OP-87620 |
FEATURES

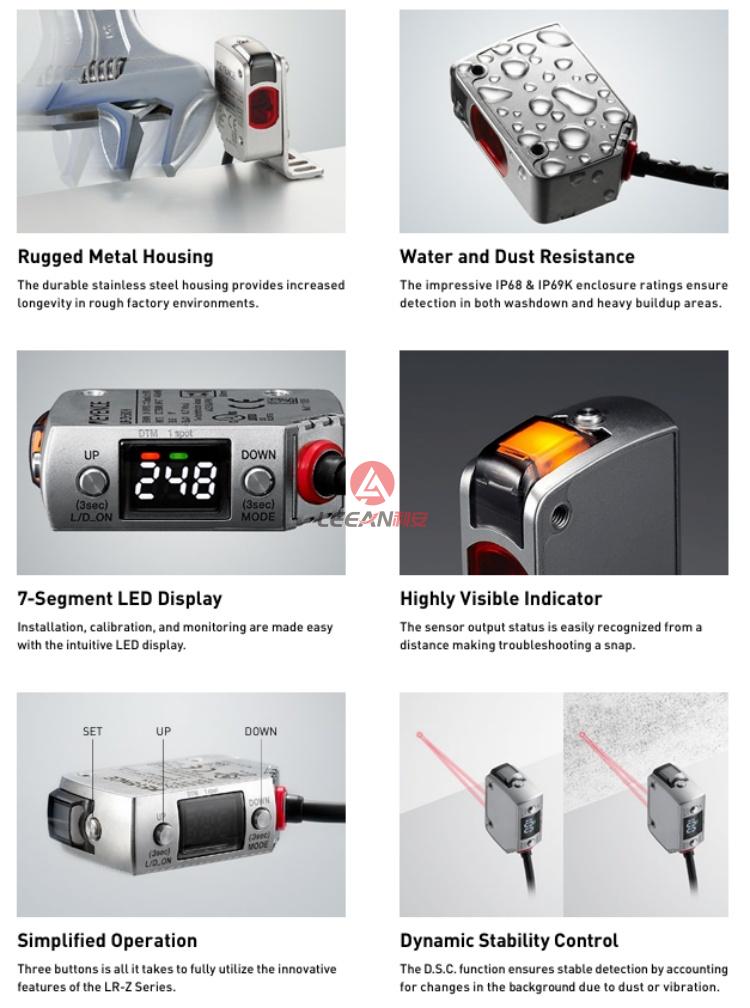

Rugged Metal Housing
The durable stainless steel housing provides increased longevity in rough factory environments
Water and Dust Resistance
The impressive IP68 & IP69K enclosure ratings ensure detection in both washdown and heavy buildup areas.
7-Segment LED Display
Installation, calibration, and monitoring are made easy with the intuitive LED display.
Highly Visible Indicator
The sensor output status is easily recognized from a distance making troubleshooting a snap.
Simplified Operation
Three buttons is all it takes to fully utilize the innovative features of the LR-Z Series.
Dynamic Stability Control
The D.S.C. function ensures stable detection by accounting for changes in the background due to dust or vibration.
ALL-PURPOSE LASER SENSOR
Position, Contrast, & Transparency Detection
From clear bottles to plastic films, the LR-ZH models are able to easily detect transparent objects.
The ability to detect contrast changes ensures detection of targets close to the background.

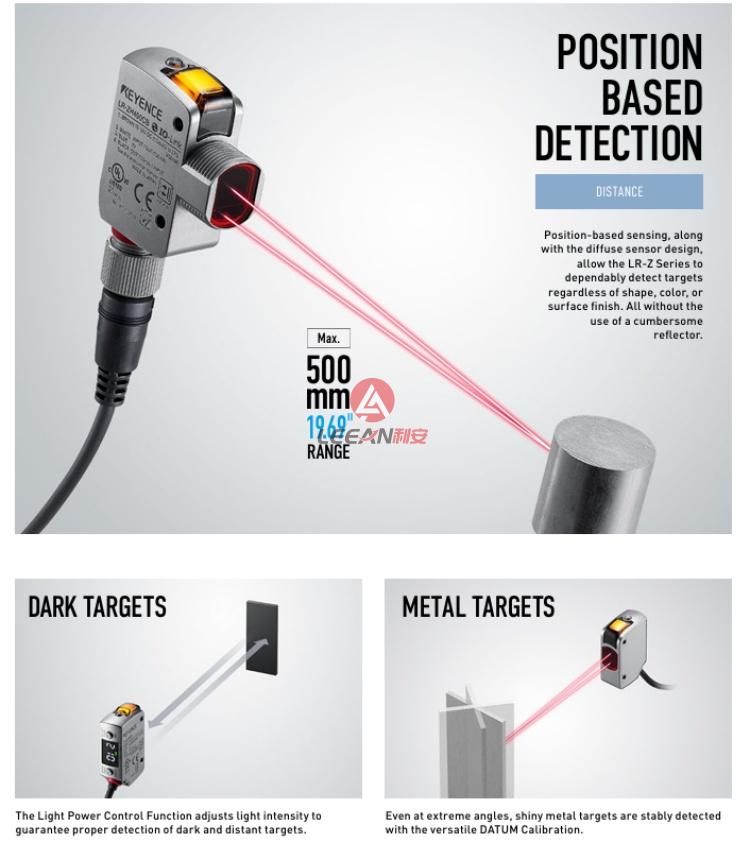

Position-based sensing, along with the diffuse sensor design, allow the LR-Z Series to dependably detect targets regardless of shape, color, or surface finish.
All without the use of a cumbersome reflector.
The Light Power Control Function adjusts light intensity to guarantee proper detection of dark and distant targets.
Even at extreme angles, shiny metal targets are stably detected with the versatile DATUM Calibration.

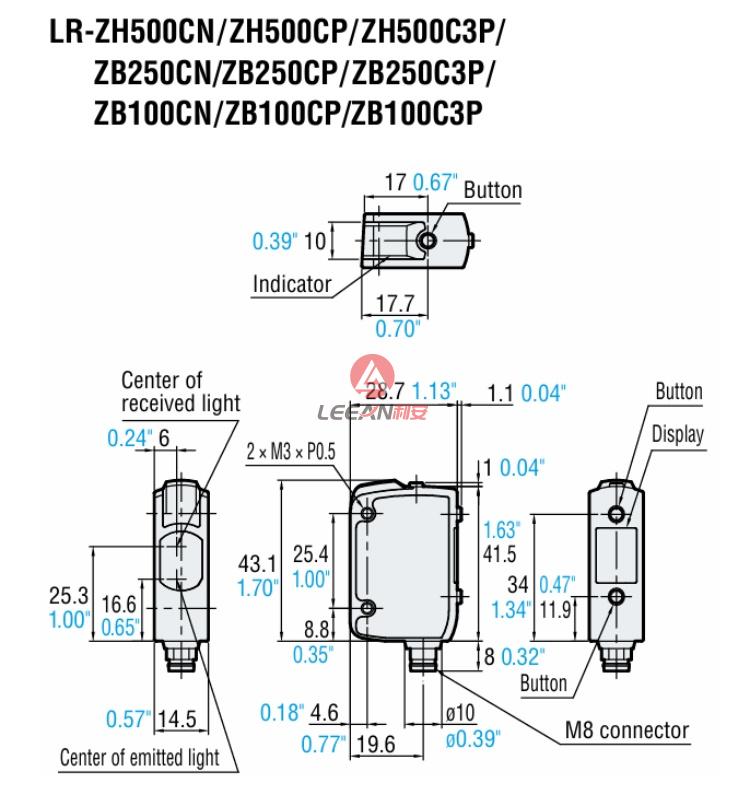

Dimension
