Description
SICK Photoelectric Sensors WL100-2P3439 Photoelectric Retro-reflective Sensor 6052361 10-30VDC New
Overview
The SICK WL100-2P3439 is a compact and reliable miniature photoelectric retro-reflective sensor. Features a PNP output, up to 1,200 mm sensing range, and IP65 rating for industrial automation tasks.
The SICK WL100-2P3439 is a high-performance miniature photoelectric retro-reflective sensor designed for reliable object detection in a wide range of industrial automation applications. Housed in a compact and durable plastic enclosure, it is ideal for installations where space is limited. This sensor utilizes a highly visible red light LED for easy alignment and offers a generous sensing range when used with a suitable reflector. With its robust design, reliable PNP output, and IP65 protection rating, the WL100-2P3439 provides a cost-effective and efficient solution for tasks in packaging, material handling, and assembly automation, ensuring precise detection and process stability.
Description
Brand :
SICK
Model :
WL100-2P3439
Order No.
1065661
Product type :
Photoelectric Sensor
Specifications:
Functional principle:With minimum distance to reflector (dual lens system)
Dimensions (W x H x D):11 mm x 31 mm x 20 mm
Housing design (light emission):Rectangular
Sensing range max.:0.01 m ... 7.2 m
Sensing range:0.01 m ... 5.5 m
Type of light:Visible red light
Light source: LED
Light spot size (distance):Ø 280 mm (4 m)
Wave length:632 nm
Adjustment:Potentiometer (Sensitivity)
Supply voltage:10 V DC ... 30 V DC
Shipping weight:
0.5 Kg
Condition:
New Original
Similar Sensors:
WL100-N1432
WL100-N1439
WL100-N4430
WL100-P4439
WL100-2P1429
WL100-2P1439
WL100-2P3429
WL100-2P3439
WL100-2P4429
WL100-2P4439
WL100-2N1429
WL100-2N1439
WL100-2N3429
WL100-2N3439
WL100-2N4429
WL100-2N4439
WL100-2N1432S06
WL100-2P1332S08
WL100-2P4400S38
WL100-2P1332S17
WL100-2P1332S07
WL100-2P1409S34
WL100-2P4430S23
WL100-2P1439S22
WL100-2P1432S12
WL100-2P4239S09
WL100-2P4330S14
WL100-2P1409S31
WL100L-F1131 6030708
WT100-N1412
WL100-2N1439
WT100-2P1439
WL100-N1432
WT100-N1432
WT100-P1432
WL100-P1432
WL100L-F2231
WL100L-E1311
WS/WE100-N1432
WS/WE100-P1432
WT100-2N1419
WL100-2N1429
WL100-2P1439
WL100-P1332S07
WS100-2N1439
WE100-2N1439
WL100-N1429
WL100-P1232
WL8G-N1131
WL100-N1432
WL100-P1432
WL8G-P2131
WL8G-P2231
WL8-P2231
WL100-2P1332S08
WL100-2P3439
WL100-2P1439
WL100-2P4429
WL100-2N1429
WL100-2P1429
WL100-N1432
WL100-P4430
WT100-P4430
WTB8L-P2111
IQ10-03BPSKT1
WT100-2P3419
WL100-2N1439
WL100-P1432
WTB8L-P2131
WT100-2P3439
WT100-N1412
DT50-P1114 1047581
DS50-P1112 1047402
1065661 DT50-2B215252
DT50-P2228
DT50-P1113
DT50-P1123
DT-P1114
DT50-P2123
DT50-P2113
DT50-N1113
DT50-N1123
DT50-N2113
DT50-N2123
DT50-N1114
DT50-P1124
DT50-N1124
DT50-2B215252
DT50-P2225
DT50-N2225
DT50-N2228
DS50-P1112
DS50-P1122
DT50-2B1555
DT35-B15251
DT35-B15551
DT50-P1113
DL35-B15552
DT50-P1113
DT50-P1114
DT50-2B215252
DT50-2B215552
DT50-N1114
DT35-B15251
KT3W-P1116
KT3W-N1116
KTM-WP11282P
KTM-MB8A191P
KTM-WN11172P
KTM-WN11171P
KTM-WP11172P
KTM-WN11182P
KTM-MB31191P
KTM-MB8A191P
KTM-MB31194P
KTM-WN11181P 1062200
KTM-WP11181P 1062199
KTM-MB31111P 1062202
KTM-WP11182P 1062150
KTM-MB31194P 1078048
KTM-WN11184 1077662
YF8U14-020VA3XLEAX
YF2A14-020VB3XLEAX
CSM-WN11122P
If you need other models,pls feel free to contact us.

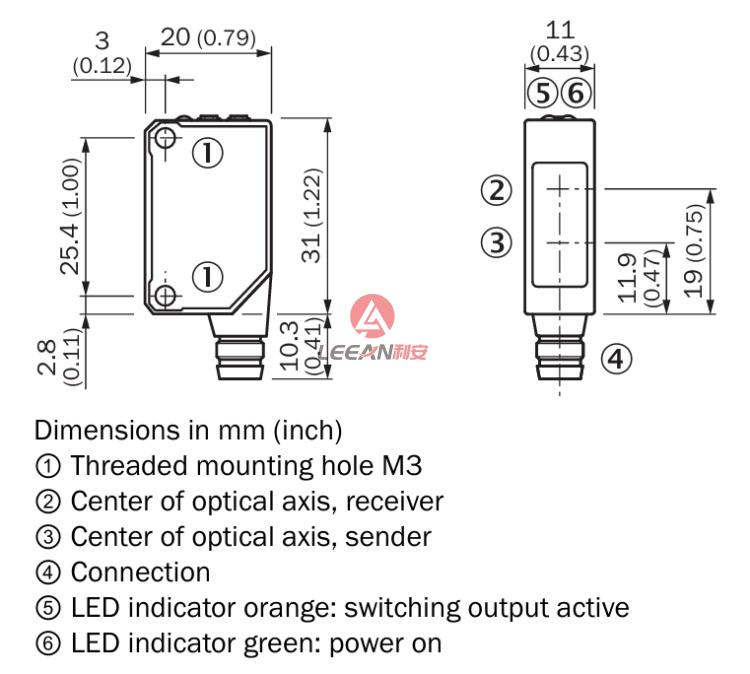

Dimensional drawing WT100, WL100
