Description

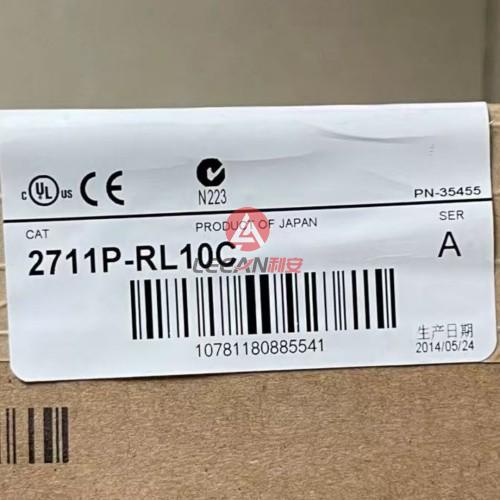

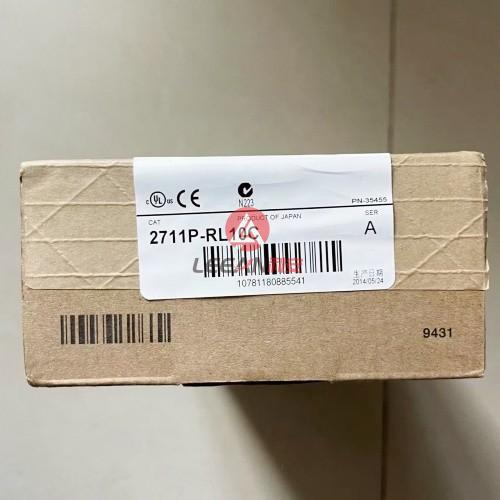

AB Allen Bradley Backlight Replacement Kit 2711P-RL10C for PanelView Plus 1000 Touch Screen New
Overview
The backlight is use for the 700, 1000, 1250, and 1500 versions of the PanelView Plus/PanelView Plus CE terminals. The 1250 High-bright terminals do not have a replaceable backlight.
Specifications
| Brand | AB Allen Bradley |
| Product | Backlight Replacement Kit |
| Model |
2711P-RL10C |
| Condition | New |
| Others |
2711P-RL7C 2711P-RL7C2 2711P-RL10C 2711P-RL10C2 2711P-RL12C 2711P-RL12C2 2711P-RL15C
2711P-RR64
2711P-RR128K 2711P-RR256 2711P-RL10C 2711-NM282711P-RDB12C 2711P-RN6K 2711P-RN8 2711P-RC3 2711P-RP8D 2711P-RAAT15 2711P-K4M20D 2711P-T15C21D8S 2711P-RP8D |
HMI Touch Screen
Display Modules (700 to 1500 only)
Model
Description
2711P-RDK7C
700 keypad color display
2711P-RDT7C
700 touch color display
2711P-RDT7CM
700 touch color display, marine certified
2711P-RDB7C
700 keypad and touch color display
2711P-RDB7CM
700 keypad and touch color display, marine certified
2711P-RDT7CK
Conformal-coated 700 touch color display
2711P-RDK10C
1000 keypad color display
2711P-RDT10C
1000 touch color display
2711P-RDT10CM
1000 touch display, marine certified
2711P-RDB10C
1000 keypad and touch color display
2711P-RDB10CM
1000 keypad and touch display, marine certified
2711P-RDK12C
1250 keypad color display
2711P-RDT12C
1250 touch color display
2711P-RDT12AG
1250 touch color display with antiglare overlay
2711P-RDT12CK
Conformal-coated 1250 touch color display
2711P-RDT12H
1250 high-bright touch color display
2711P-RDB12C
1250 keypad and touch color display
2711P-RDK15C
1500 keypad color display
2711P-RDT15C
1500 touch color display
2711P-RDT15AG
1500 touch color display with antiglare overlay
2711P-RDB15C
1500 keypad and touch color display
Logic Modules (700 to 1500 only)
Standard Logic Modules for PanelView Plus Terminals
And CE Logic Modules for PanelView Plus CE Terminals
Model
Description
2711P-RP
Logic module without flash/RAM memory, DC input
2711P-RPD
Logic module, without memory, isolated DC input, marine certified
2711P-RPA
Logic module without flash/RAM memory, AC input, marine certified
2711P-RP1
Logic module with 64 MB flash/64 MB RAM, DC input
2711P-RP1A
Logic module with 64 MB flash/64 MB RAM, AC input, marine certified
2711P-RP1D
Logic module with 64MB, isolated DC input, marine certified
2711P-RP2
Logic module with 128 MB flash/128 MB RAM, DC input Compatible with ViewPoint Software.
2711P-RP2A
Logic module with 128 MB flash/128 MB RAM, AC input, marine certified
2711P-RP2D
Logic module with 128MB, isolated DC input, marine certified
2711P-RP2DK
Conformal-coated logic module with 128MB, isolated DC input
2711P-RP2K
Conformal-coated logic module with 128 MB flash/128 MB RAM, DC input
2711P-RP3
Logic module with 256 MB flash/256 MB RAM, DC input
2711P-RP3A
Logic module with 256 MB flash/256 MB RAM, AC input, marine certified
2711P-RP3D
Logic module with 256MB, isolated DC input, marine certified
2711P-RP6
CE logic module with 128 MB flash/128 MB RAM, DC input
2711P-RP6A
CE logic module with 128 MB flash/128 MB RAM, AC input, marine certified
2711P-RP6D
CE logic module with 128MB, isolated DC input, marine certified
2711P-RP6DK
CE conformal-coated logic module with 128MB, isolated DC input
2711P-RP6K
CE conformal-coated logic module with 128 MB flash/128 MB RAM, DC input
2711P-RP7
CE logic module with 256 MB flash/256 MB RAM, DC input
2711P-RP7A
CE logic module with 256 MB flash/256 MB RAM, AC input, marine certified
2711P-RP7D
CE logic module with 256 MB, isolated DC input, marine certified

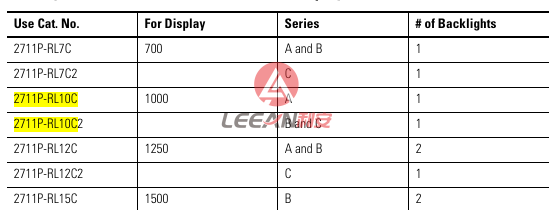

Backlights for PanelView Plus 700 to 1500 Displays
