Description

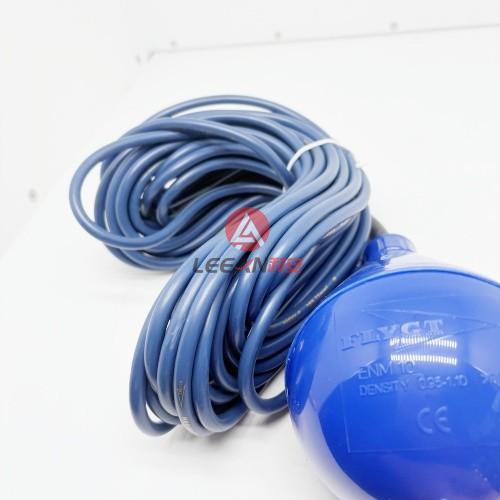

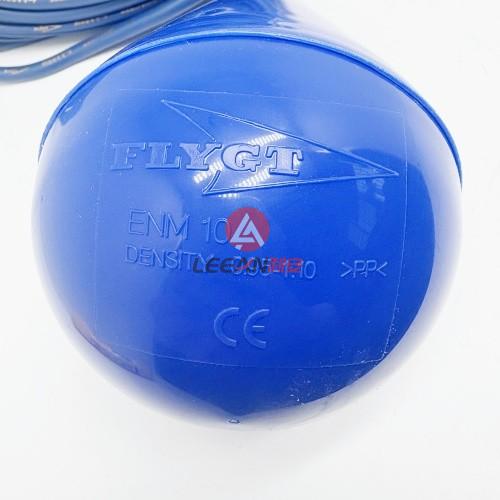

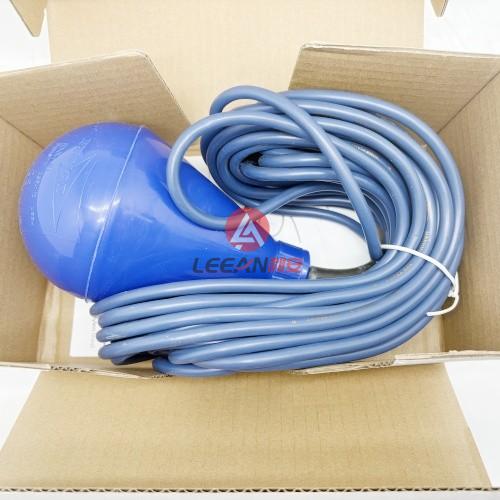

FLYGT Liquid Level Regulator ENM-10 Water Level Pump Controller Non-Mercury Control Float Switch with 13M Cable New
Overview
The Flygt ENM-10 level regulators are the ideal choice for most level control applications, such as wastewater pumping stations and ground water or drainage pumping. When the liquid level reaches the regulator, the bulb tilts, activating the internal micro switch, which starts or stops a pump or triggers an alarm device.
Proper level regulation is critical for operational reliability. Lack of proper regulation can cause improper operation, pump damage or, in the worst case, overflow resulting in environmental and economic consequences. With many years of experience and countless satisfied users, the natural choice for level regulation is the Flygt ENM-10.
The simplest possible method for level control! A mechanical switch in a plastic casing,freely suspended at the desired height from its own cable. When the liquid level reachesthe regulator, the casing will tilt and the mechanical switch will close or break the circuit,thereby starting or stopping a pump or actuating an alarm device. No wear, nomaintenance! In sewage pumping stations, for ground water and drainage pumping — infact, for most level control applications — the ENM-10 is the ideal solution.
The regulator casing is made of polypropylene and the cable is sheathed with a special PVC or Nitrile/PVC rubber compound. The plastic components are welded and screwed together. Adhesive is never used. Impurities and deposits will not adhere to the smooth casing.
This level regulator is available in different versions, depending upon the medium in which it is to be used. As standard, the regulator can be obtained with 6, 13, 20, 30 or 50 metres (20, 42, 65, 100 or 167 feet) of cable for liquids with specific density between 0.95 and 1.10 g/cm3; for other specific densities and for the Ex-version, the regulator is only available with 20 metres (65 ft) of cable. The regulator can withstand up to 60°C (140°F).
Details
Liquid temperature:
min. 0°C (32°F)
max. 60°C (140°F)
Liquid density:
min. 0.65 g/cm3
max. 1.5 g/cm3
If you need other models, pls feel free to contact us.
Brand:
FLYGT
Type:
Level Regulator
Model
ENM-10
Specifications
Degree of protection:IP68, 20 m (65 ft)
Interrupting capacity of micro switch:
AC, resistive load, 250V 10A
AC, inductive load, 250V 3A
cos ϕ = 0.5
DC, 30V 5A
With gold plated micro switch:
same as above, except:
DC, 24V 10mA
Note that local regulations may limit the voltage.
Materials:
Bending relief:EPDM rubber
Cable:special compound PVC or NBR/PVC nitrile/PVC rubber
Weight
2 KG
Order Code.
ENM-10 5828802 (6M)

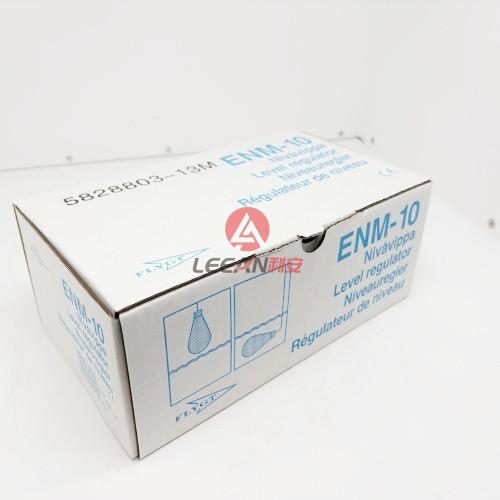

ENM-10 5828803 (13M)
ENM-10 5828804 (20M)

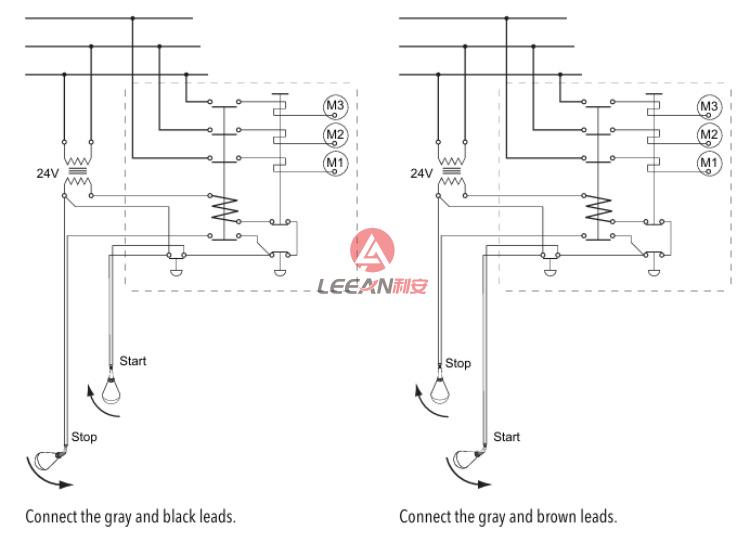

Wiring alternative
