Description

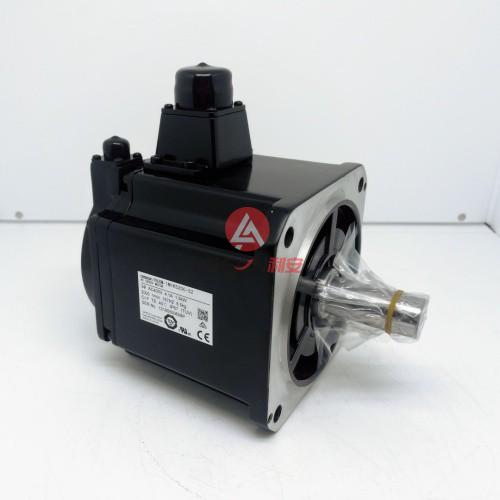

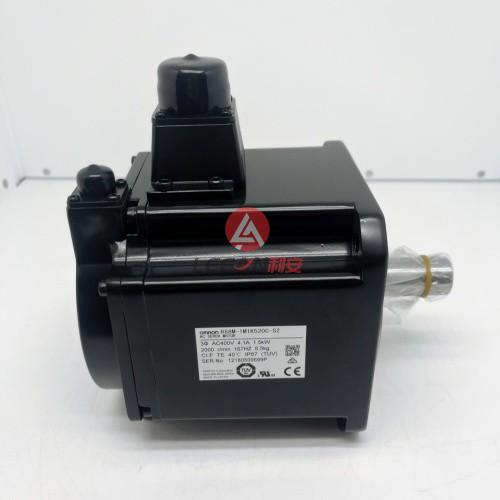

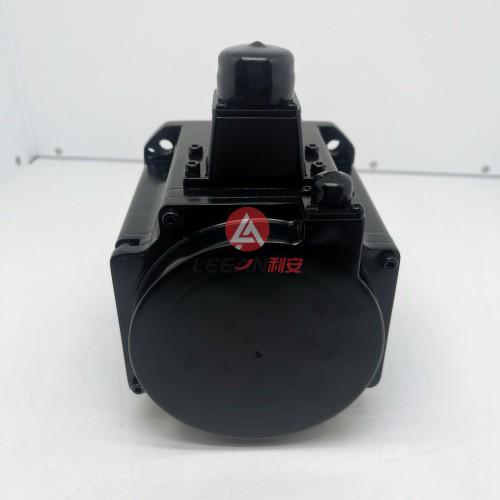

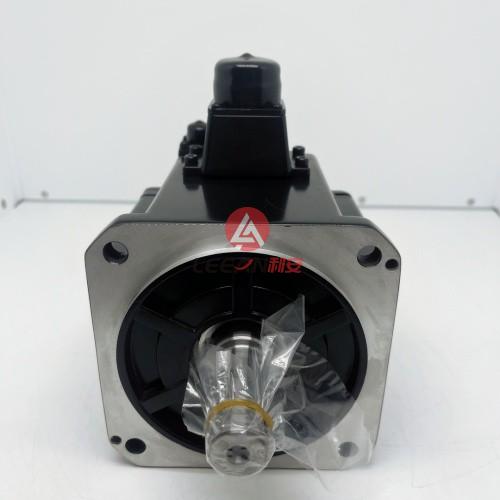

Omron AC Servo Motor R88M-1M1K520C-S2 Industrial Servomotor AC400V 4.1A 1.5KW 2000RPM 167HZ New
Overview
Designed to meet the machine requirements, the 1S servo technology optimizes the full cycle, through the machine design, installation and commissioning tasks and finally to the maintenance once in production. In addition to the traditional motion solution, the 1S servo offers high resolution multi-turn encoder without battery backup, safety network built-in and improved loop control allowing accurate and higher machine productivity.
Servo features
Power range from 50 W to 3 kW – 100/200/400V
23 bit high resolution encoder
350% momentary maximum torque (200 V, 750 W max.)
Battery-free absolute multi-turn encoder
Improved loop control for low overshoot and quick settling time
Safety function built-in:
Hardwired Safe Torque Off:
EN ISO 13849-1(Cat.3 PLe), EN61508(SIL3), EN62061(SIL3), EN61800-5-2(STO)
Safety over EtherCAT(FSoE):
EN ISO 13849-1(Cat.3 PLd), EN61508(SIL2), EN62061(SIL2), EN61800-5-2(STO)
Simplified machine design and maintenance
No battery, no maintenance
No need for homing sequence improving machine uptime
23 bit high resolution encoder as standard
Absolute multi-turn encoder design without mechanics: 16 bits, 65536 turns
Compact and smaller motor size
Specifications
| Brand | Omron |
| Type | Servomotor |
| Model |
R88M-1M1K520C-S2 |
| Specifications |
Capacity:1500W Rated Speed:2000 r/min 3 Phase AC400V 4.1A 167HZ |
| Condition | New |
| Net Weight | 8.5KG |
| Warranty | One Year |
| Servo Motors |
R88D-1SN01H-ECT R88D-1SN02H-ECT R88D-1SN04H-ECT R88D-1SN08H-ECT R88M-1M10030T-S2 R88M-1M10030H-S2 R88M-1M20030T-S2 R88M-1M20030H-S2 R88M-1M40030T-S2 R88M-1M40030H-S2 R88M-1M75030T-S2 R88M-1M75030H-S2 R88M-1M10030T-BS2 R88M-1M10030H-BS2 R88M-1M20030T-BS2 R88M-1M20030H-BS2 R88M-1M40030T-BS2 R88M-1M40030H-BS2 R88M-1M75030T-BS2 R88M-1M75030H-BS2 R88M-1L3K030C-S2 R88M-1M2K020C-S2 R88M-1L530F-BS2 R88M-1M10030T-OS2 R88M-1M10030H-OS2 R88M-1M20030T-OS2 R88M-1M20030H-OS2 R88M-1M40030T-OS2 R88M-1M40030H-OS2 R88M-1M75030T-OS2 R88M-1M75030H-OS2 R88M-1M10030T-BOS2 R88M-1M10030H-BOS2 R88M-1M20030T-BOS2 R88M-1M20030H-BOS2 R88M-1M40030T-BOS2 R88M-1M40030H-BOS2 R88M-1M75030T-BOS2 R88M-1M75030H-BOS2
R88M-1L1K530C-BS2 |
| More Servo Motors |
R88M-GP05030H-BOS2 R88M-G05030H-BS2 R88M-G05030H-BOS2 R88M-GP10030H-BOS2 R88M-G10030H-BS2 R88M-G10030H-BOS2 R88M-GP20030H-BOS2 R88M-G20030H-BS2 R88M-G20030H-BOS2 R88M-GP40030H-BOS2 R88M-G40030H-BS2 R88M-G40030H-BOS2 R88M-G40030H-S2-Z R88M-K75030C-S2 R88M-1M1K520C-BS2 R88M-1M2K020C-BS2 R88M-K75030H-S2-Z R88M-K75030H-OS2-Z R88M-1M10030H-S2 R88M-1M10030H-BS2 R88M-1M20030H-S2 R88M-1M20030H-BS2 R88M-1M40030H-S2 R88M-1M40030H-BS2 R88M-1M75030H-S2 R88M-1M75030H-BS2 R88M-1M20030T-S2 R88M-1M75030T-S2 R88M-1M40030T-BS2 R88M-1M40030T-S2 R88M-1M10030T-BS2 R88D-KN30F-ECT-Z |
|
Similar Encoder Cable |
R88A-CRKC010NR-E R88A-CRKA003CR R88A-CRKC015NR-E R88A-CAKA010SR-E R88A-CR1A003CF R88A-CR1A005C R88A-CR1B005V R88A-CR1B010VF R88A-CR1A003C R88A-CR1A005C R88A-CR1A010C R88A-CR1B002N 2M R88A-CR1B003N 3M R88A-CR1B005N 5M R88A-CR1B010N 10M R88A-CR1B015N 15M R88A-CR1B020N 20M R88A-CR1B002NF 2M R88A-CR1B003NF 3M R88A-CR1B005NF 5M R88A-CR1B010NF 10M R88A-CR1B015NF 15M |

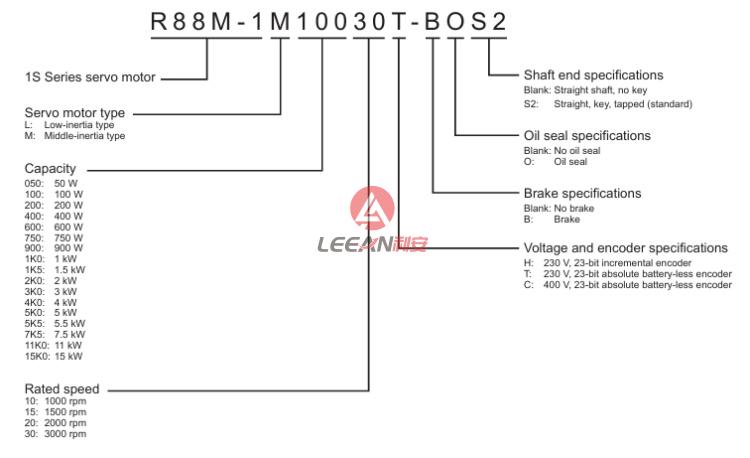

Servo motor type designation

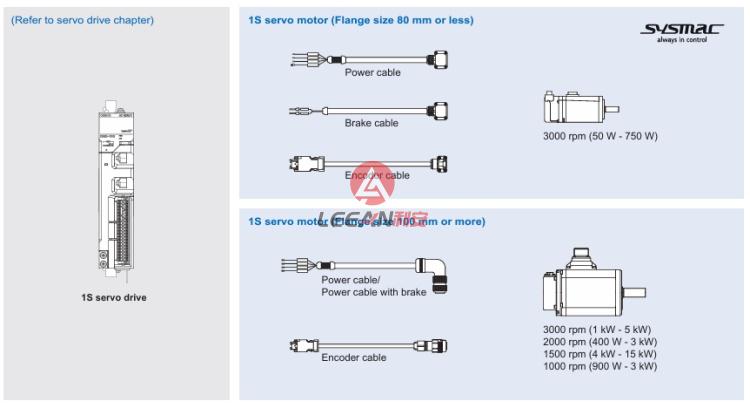

System configuration
