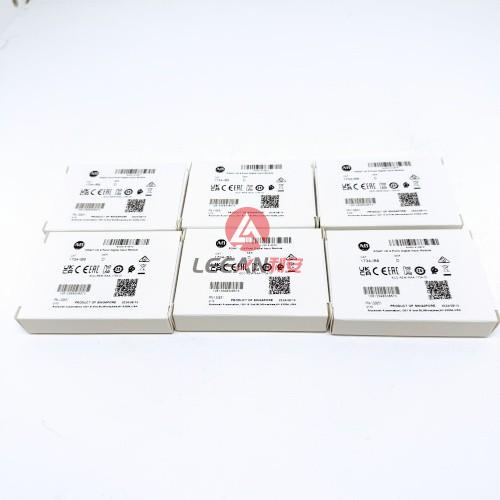

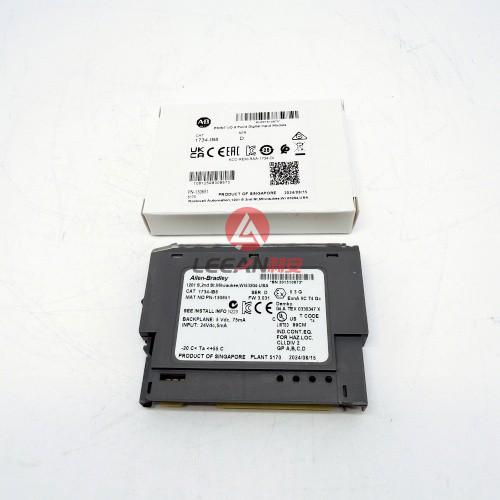

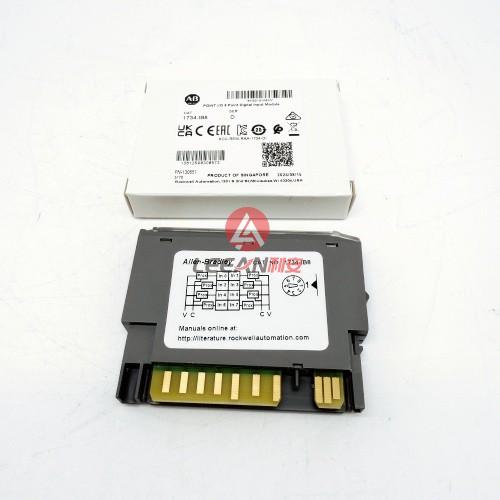

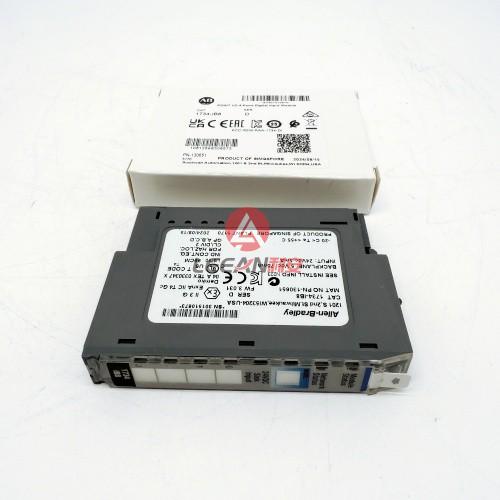

AB Allen Bradley POINT I/O 8 Channel Digital Input Module 1734-IB8 PLC Input Output Modules New
Overview
The Allen-Bradley 1734-IB8 is a POINT IO module that features Eight (8) Discrete sinking input channels. It has One (1) group of channels with Eight (8) inputs per channel. It accepts nominal signal voltage of 24VDC and compatible with any POINT IO communication adapter for implementing distributed I/O architecture. This module requires 1734-TB or 1734-TBS wiring base assembly.
The Allen-Bradley 1734-IB8 is an Eight (8) channel discrete input module that is part of the 1734 Point I/O product family. POINT I/O modules, including the 1734-IB8 are compact automation components that are installed with POINT I/O communication adapters for implementing distributed I/O architecture.
The 1734-IB8’s input channels support sink wiring configuration and operate at 24VDC nominal voltage with ON-state voltage range of 10VDC-28.8VDC and On-state current range of 2mA-5mA. This input module has a fixed hardware input filter of 0.5 ms plus user configurable filter of 0ms - 63 ms. This module requires use of a terminal base such as 1734-TB or 1734-TBS wiring assembly. It is also provided with status LED indicators that provided feedback regarding the operational status of each of the module’s channels. It is specifically installed with Eight (8) status LED indicators, One (1) for every input channel. Additionally, it has a One (1) network status indicator. When installing to the appropriate terminal base, the required key switch alignment is position 1.
The 1734-IB8 is installed with POINT I/O communication adapters. Series C 1734-IB8 module are also made compatible with DeviceNet and ProfiBus communication adapters.
Features
Input, output, and relay output modules
Wide variety of voltages
Point-level output fault states for short-circuit and wire off diagnostics
Field-side diagnostics on select modules
Choice of direct-connect or rack-optimised communications
POINT Guard I/O™ modules for safety applications
Configurable modules - each point can be configured as a DC input or output
DeviceLogix technology available
Details
Product Series:Point I/O (Bul. 1734) Number of outputs: 4 analog, single-ended, non-isolatedTerminal base: 1734-TB3, 1734-TB3S wiring base assembly
No. of Inputs:8; Sinking input
1734-IE2CK
1734-IE2VK
1734-IE2C
Manufacturer
AB Allen Bradley
Part Number/Catalog No.
1734-IB8
Specifications
Module Status indicators:1 green/red, logic sid
Module Location: 1734-TB or 1734-TBS wiring base assembly
Keyswitch position:1
Enclosure type rating:None (open-style)
Dimensions: 56 x 12 x 75.5 mm (2.2 x 0.47 x 2.97 in.)
Input Filter Time:0.5 ms hardware plus 0...63 ms (user-selectable)
Input Current, nominal:4mA @24VDC
Input Current range:2-5mA
Input Voltage range:10-28.8VDC
Power Dissipation:1.6 Watt/5.5 BTU/hour
No isolation between individual inputs or inputs to field power
Weight
0.2KG
Condition
New Original
Catalog Numbers
1734-IB2, 1734-IB4, 1734-IB4K, 1734-IB8, 1734-IB8K,1734-IE4C, 1734-IE4CK,1734-OB2, 1734-OB4, 1734-OB4K, 1734-OB8, 1734-OB8K
