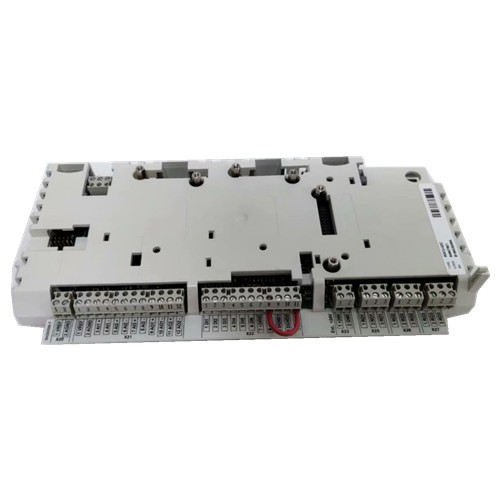

ABB RDCU Drive Control Units RDCU-02C Control Board for ACS800 inverter 64607901
  1. ABB RDCU Drive Control Units RDCU-02C Control Board for ACS800 inverter 64607901

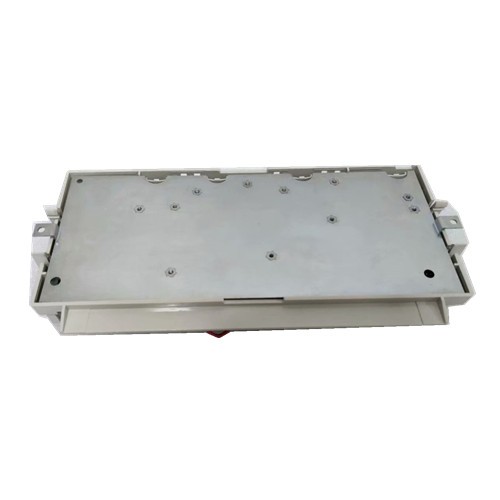

  2. ABB RDCU Drive Control Units RDCU-02C Control Board for ACS800 inverter 64607901
  3. ABB RDCU Drive Control Units RDCU-02C Control Board for ACS800 inverter 64607901

ABB RDCU Drive Control Units RDCU-02C Control Board for ACS800 inverter 64607901

ACS800 Spare Parts  , Drive Control Unit  , New Control Board RDCU-12C
Send Inquiry Live chat

Description

ABB RDCU Drive Control Units RDCU-02C Control Board for ACS800 inverter 64607901




Control Unit for ABB ACS800 Drives - RDCU-02C

In ACS800 Motor Drive applications analogue and digital I/O channels are used for different functions such as control, monitoring and measurement purposes (e.g. motor temperature). To extend the I/O functionality of your ACS800 Drive the RDCU-02C provides additional analogue and digital I/O connections, relay outputs and more.Please note that application software is not included, before the board can be used customers will need to obtain and install the required software.

RDCU-02C Control Unit Features:

3 analog inputs - differential, common mode voltage ±15 V, galvanically isolated as a group, one ±0(2) to 10 V, resolution 12 bit, two 0(4) to 20 mA, resolution 11 bit
2 analog outputs - 0(4) to 20 mA, resolution 10 bit
7 digital inputs - galvanically isolated as a group (can be split in two groups),  Input voltage 24 V DC,  Filtering (HW) time 1 ms
3 digital (relay) outputs - Changeover contact, 24 V DC or 115/230 V AC, Max. continuous current 2 A
Reference voltage output: ±10 V ±0.5%, max. 10 mA

Auxiliary power supply output: +24 V ±10%, max. 250 mA



Specifications
Product Name
CONTROL UNIT
Manufacturer
ABB
ABB Type Designation
RDCU-02C
Country of Origin
Finland (FI)
Technical Information
COATED
Dimensions Product Net Weight
0.6 kg
Shipping Weight
2 kg
New Control Unit RDCU-12C


PLEASE NOTE THAT THE APPLICATION SOFTWARE IS NOT INCLUDED! BEFORE THE BOARD CAN BE USED AS A SPARE PART, YOU NEED SW TO BE LOADED INTO THIS BOARD. SW TO BE ORDERED SEPARATELY.

SW TYPE
SW CODE
ACS800 System Application Program
AMXRxxxx
ACS800 Standard Application Program
ASxRxxxx
ACS800 Pump Control Application Program
AHxRxxxx


Powering the RDCU
The RDCU is powered through connector X34. The unit can be powered from the power supply board of the inverter (or IGBT supply) module, provided that the  maximum current of 1 A is not exceeded.
The RDCU can also be powered from an external 24 V DC supply. Note also that the current consumption of the RDCU is dependent on the optional modules attached. (For current consumption of optional modules, see their respective user manuals.)

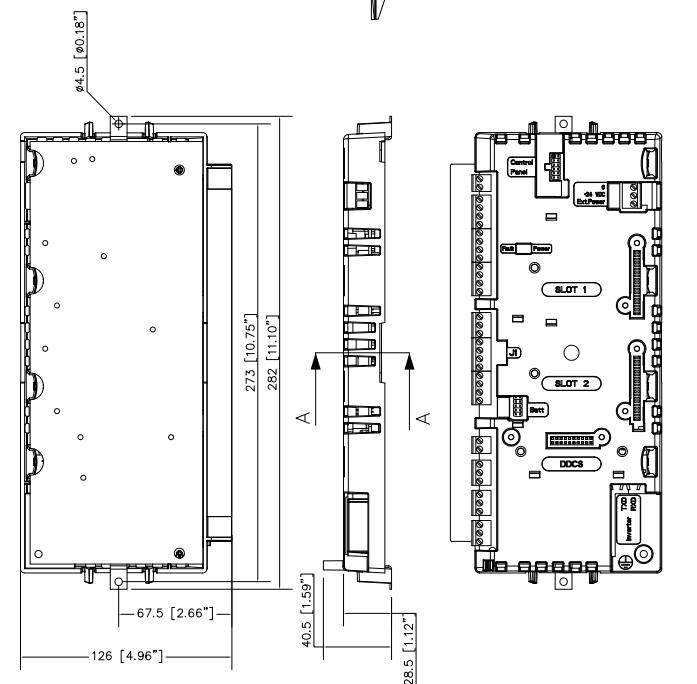

Dimensions
