Description

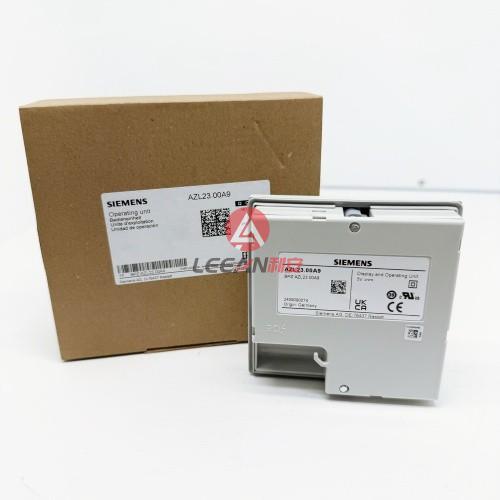

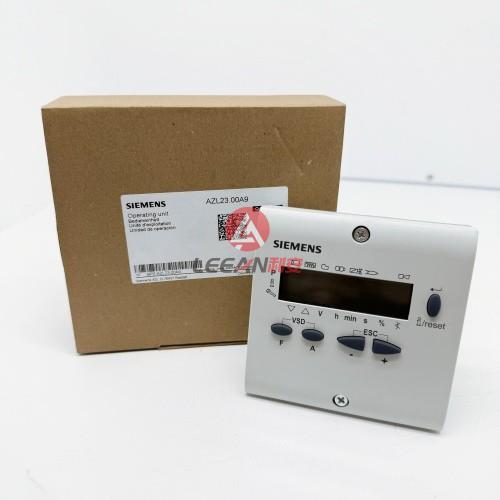

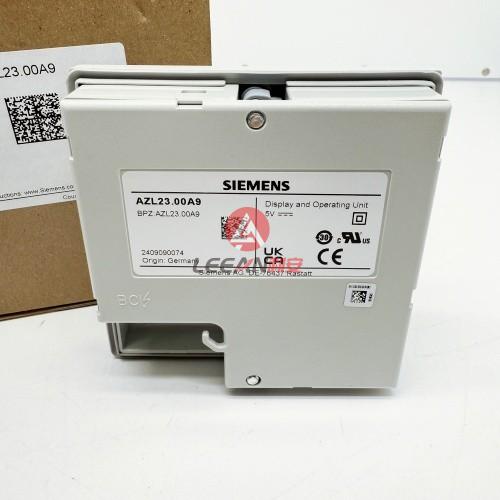

• Siemens Display and Operator AZL23.00A9 Operating Unit  for LMV2 LMV3 LME Series  Burner Controls New

  ---

• Overview
•

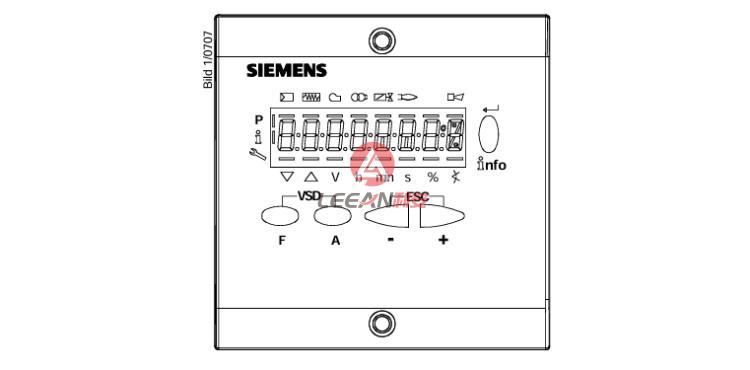

• AZL23.00A9 - Display and operator unit, for LMV2/LMV3/LME, IP54
• The AZL2... display and operating units are designed for use with LMV2… / LMV3… and LME39… burner controls, either directly on the burner or in control panels installed close to the burner.

  • The units are used for the display, operation and parameterization of specific safety- and non-safety-related burner functions
  • Key plant data and fault codes can be queried and displayed
  • Communication between AZL2… and burner control takes place via BCI interface


---

Specification

Product Name:	Display and Operator Unit
Model:	AZL23.00A9
Country of Origin	Germany
Condition:	New
Weight (kg):	2 Kg

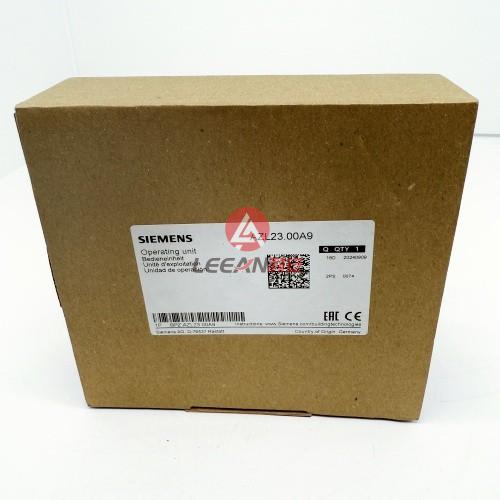

Package:	Original box.
Warranty	One Year
Other Models	AZL21.00A9 AZL52.00B1  AZL23.00A9 AZL22.10A9WH AZL23.00A9 AZL52.40B1 AZL52.09B1WH  AZL52.09B1WH AZL52.00B1WH AZL22.10A9WH AZL52.40B1 ASZ16.733 ASZ12.703 ASZ12.733 ASZ12.803 ASZ16.703 ASZ22.32 ASZ12.30 AZL52 Connection Cable AZL52.09B1 AZL52.02B1 ZL52.00B1 LMV51.000C2 QRB1 LMV37.410A2WH ZL52.00B1WH AGG5.720  LME BASE SQM48.697A9 LME71.000A2 LME73.000A2 LME71.00323 PME71.901A2 PME73.831A2  PME73.830A2  PME73.811A2  If you need other models, pls feel free to contact us.

---

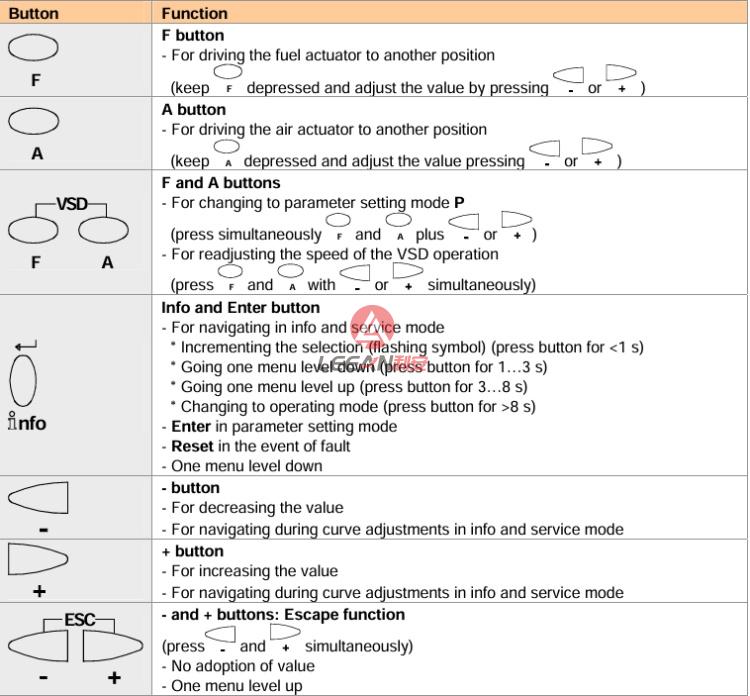

For operating and display philosophy, refer to the User Manuals of the respective types of burner controls.
Function and operation of the different types of AZL2… are identical.

---
