TOSHIBA Multifunction Compact Inverters VFS15-2037PY-A38 Microdrive Transistor Inverter 3.7KW 6.7kVA 5HP 3PH 200-240V New
Overview
Toshiba’s heavy duty S15 adjustable speed drive is a compact and high performance drive designed for controlling a wide range of variable and constant torque applications for multiple industries. This micro-drive is capable of working with permanent magnet (PM) motors, which allows a much greater flexibility in selecting a motor for an application. In addition, expanded PID control allows a greater level of precise control and operation of difficult level control applications. No other micro-drive delivers such reliable performance and extensive capabilities at such a competitive cost.
The S15 adjustable speed drive is a compact and high performance adjustable speed drive designed for controlling a wide range of variable and constant torque applications for multiple industries. This micro adjustable speed drive is capable of working with permanent magnet (PM) motors, which allows a much greater flexibility in selecting a motor for an application. In addition, expanded PID control allows a greater level of precise control and operation of difficult level control applications. Noother micro adjustable speed drive delivers such reliable performance and extensive capabilities at such a competitive cost.
This series offers a multifunction and compact midrange model among the Toshiba inverter series inverters. It fulfills a range of purposes from energy savings for equipment to support of high performance.
Developed with the focus on "easy settings and operation," "eco-friendly design," "energy-saving and powerful operation," "applicability" and "system scalability," this inverter can be used for a wide range of applications from fans and pumps to lifting machines.
Input voltage class/applicable motor capacity
・Single-phase 240 V input: 0.2 to 2.2 kW
・Three-phase 240 V input: 0.2 to 15 kW
・Three-phase 500 V input: 0.4 to 22 kW
・Three-phase 600 V input: 0.4 to 15 kW
Standard Features
IP20 Enclosure; Wall-Mount
Past Trip Monitoring: Stores the Last Eight Faults in Succession, Along with At-Trip Operation Data
Rotary Encoder
EOI: Four-Digit/Seven-Segment LED Display
Ambient Temperature: 14° to 122°F (-10° to 50°C)
Humidity: 95% Non-Condensing
Altitude: Up to 1000 Meters without Derate
Two-Wire RS485 Communication Port
Compliances: UL Listed in US & Canada, CSA & CE
Details
|
Product Name |
Transistor Inverter |
|
Manufacturer |
TOSHIBA |
|
ABB Description |
VFS15-2037PY-A38 |
| Specifications |
3.7 KW-6.7kVA-5HP Input:3PH 200-240V 50/60Hz 23.0A Output:3PH 200-240V 0.1-600Hz 17.5A |
| Similiar Drive Inverters |
VFS15-4007PL1 VFS15-4015PL1 VFS15-4022PL1 VFS15-4037PL1 VFS15-4055PL VFS15-4075PL VFS15-4110PL VFS15-4150PL VFS15-2002PM VFS15-2004PM VFS15-2007PM VFS15-2015PM VFS15-2022PM VFS15-2037PM VFS15-2055PM VFS15-2075PM VFS15-2110PM VFS15-2150PM VFS15S-2007PL VFS15S-2015PL VFS15S-2022PL VFS15-4007PL1-CH VFS15-4022PL1-CH VFS15-4037PL1-CH VFS15-4055PL-CH VFS15-4075PL-CH VFS15-4110PL-CH VFS15-4150PL-CH VFS11-4110PL VFS15-4110PL VFNC3C-4007P 380V 0.75KW VFNC3C-4015P 380V 1.5KW VFNC3C-4022P 380V 2.2KW VFNC3C-4037P 380V 3.7KW VFNC3C-4055P 380V 5.5KW VFNC3C-4075P 380V 7.5KW VFNC3C-4110P 380V 11KW VFNC3C-4150P 380V 15KW VFNC3C-4185P 380V 18.5KW VFNC3C-4220P 380V 22KW VFNC3C-41220PL 380V 22KW VFAS3-4004PC 380V 0.4KW 1.5A VFAS3-4007PC 380V 0.75KW2.2A VFAS3-4015PC 380V 1.5KW 4.0A VFAS3-4022PC 380V 2.2KW 5.6A VFAS3-4037PC 380V 4KW 9.3A VFAS3-4055PC 380V 5.5KW 12.7A VFAS3-4075PC 380V 7.5KW 16.5A VFAS3-4110PC 380V 11KW 23.5A VFAS3-4150PC 380V15KW 31.7A VFAS3-4185PC 380V 18.5KW39.2A VFAS3-4220PC 380V 22KW 46.3A VFAS3-4300PC 380V 30KW 61.5A VFAS3-4370PC 380V 37KW 74.5A VFAS3-4450PC 380V 45KW 88.0A VFAS3-4550PC 380V 55KW106A VFAS3-4750PC 380V75KW 145A VFAS3-4900PC 380V90KW 173A VFAS3-4110KPC 380V110KW211A VFAS3-4132KPC 380V132KW250A VFAS3-4160KPC 380V160KW314A VFAS3-4200KPC 380V 200KW387A VFAS3-4220KPC 380V220KW427A VFAS3-4280KPC 380V280KW550A We can offer any series ABB Drives with good price. If you need other models, pls feel free to contact us. |

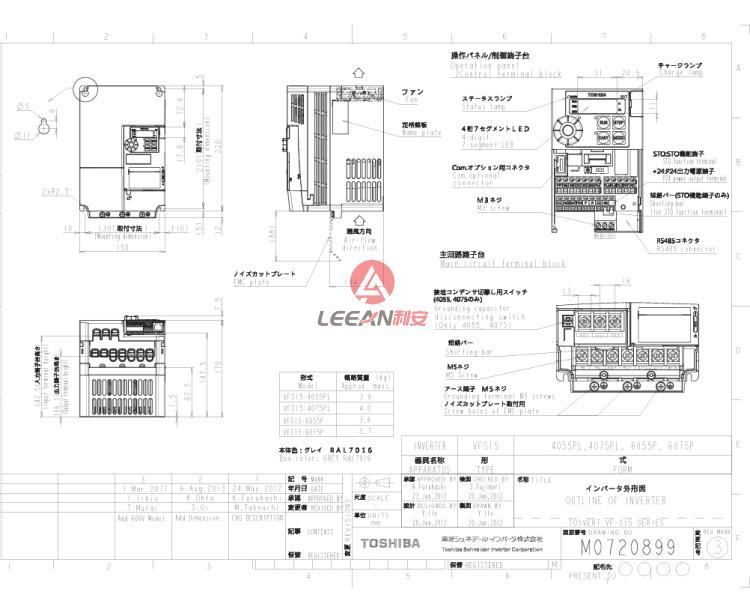

Drawings
