Description

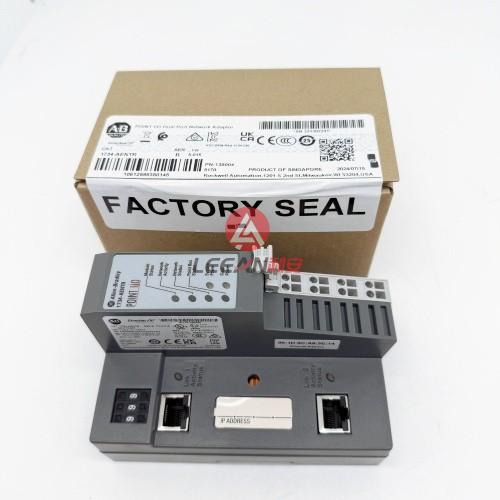

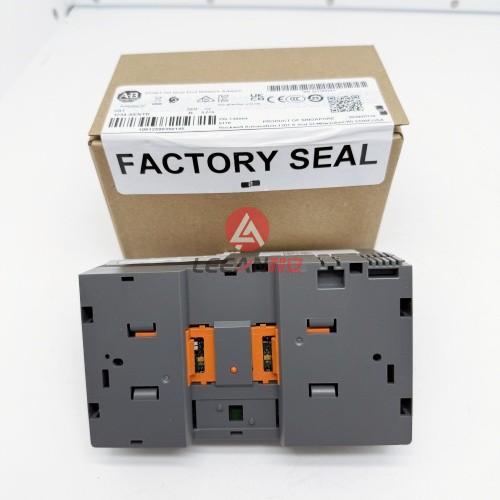

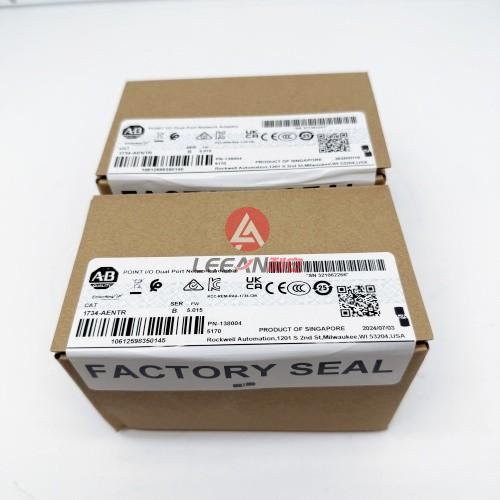

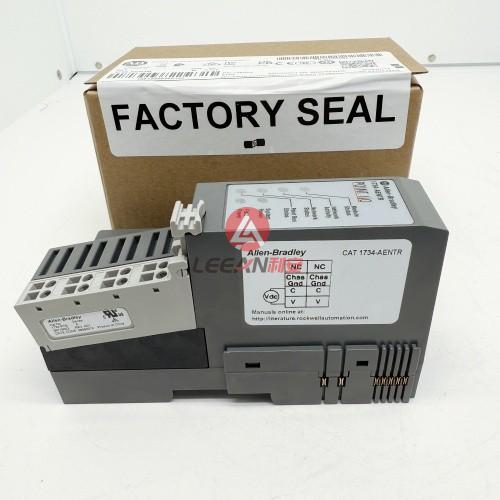

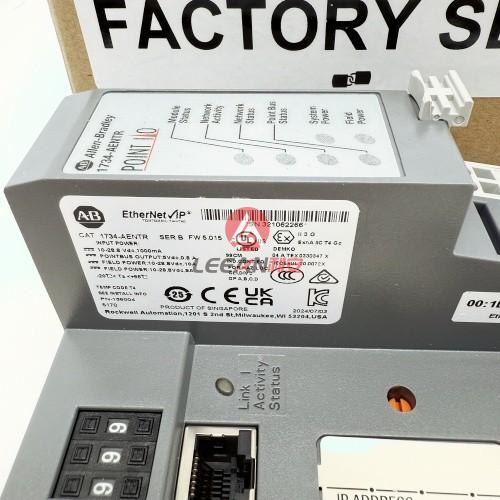

AB Allen Bradley POINT I/O Dual Port Network Adaptor 1734-AENTR EtherNet/IP Adapter Module New
Overview
The Allen-Bradley 1734-AENTR is a Point I/O Dual Ethernet communication module. It supports Ring, Star, and Tree Topology and transmission speed of 10/100 Mbits/s in Half or Full-Duplex mode.
About The Adapter
Read this publication for information about the POINT I/O™ Dual Port EtherNet/IP adapter, a communications adapter for POINT I/O modules.This adapter is for the POINT I/O backplane that provides connectivity to an EtherNet/IP network with two RJ-45 connectors for 2 port pass-through to support daisy-chain or ring, and the existing star and tree network topologies.
Features
Built-in power supply powers the I/O modules through the backplane
Up to 63 I/O modules per assembly, for up to 504 points on a single network node
Provide the interface between the POINT I/O modules and backplane, and the desired network
Snap directly onto the DIN rail
Details
Series:POINT I/O
1734-IE2CK
1734-IE2VK
1734-IE2C
Manufacturer
AB Allen Bradley
Part Number/Catalog No.
1734-AENTR
Specifications
Module Type: Ethernet/IP Adapter Module
Input Voltage Rating:24 Volts DC
Enclosure Rating:Open
Operating Temperature:20 to 60 degrees Celsius
Ethernet Communication Rate:10/100 Mbits/s, Half or Full-Duples
Maximum Power Consumption:10.4 Watts at 28.8 Volts DC
Input Overvoltage Protection:Reverse Polarity Protected
Isolation Voltage: 50 Volts (Continuous)
Maximum Expansion I/O Capacity:63 Modules, 31 Direct Connections
Weight
0.2KG
Condition
New Original
Catalog Numbers
1734-IB2, 1734-IB4, 1734-IB4K, 1734-IB8, 1734-IB8K,1734-IE4C, 1734-IE4CK,1734-OB2, 1734-OB4, 1734-OB4K, 1734-OB8, 1734-OB8K
