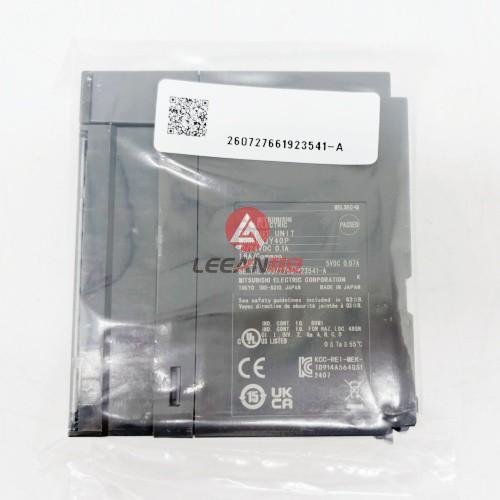

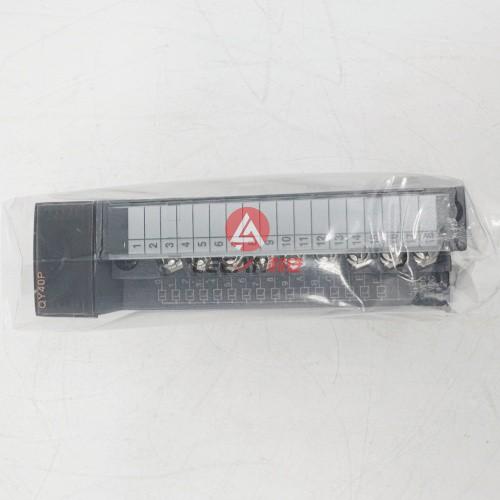

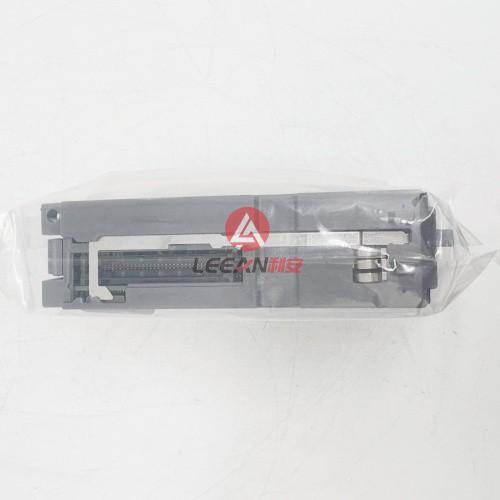

Mitsubishi Electric MELSEC-Q Series PLC Transistor Output Unit QY40P Digital Output Module I/O Modules 12/24VDC 0.1A New
Description
Mitsubishi Electric MELSEC-Q Series PLC Transistor Output Unit QY40P Digital Output Module I/O Modules 12/24VDC 0.1A New
Overview
QY40P is a 16-point transistor output module for MELSEC-Q series PLC. It has a power supply of 12-24V DC, a current consumption of 0.065A/point, and a common output of 1.6A.
The Mitsubishi QY40P is a 16-point digital output module made for the MELSEC-Q series PLCs, supporting 24V DC source-type transistor outputs. With rapid response, compact design, and screw terminal wiring, it provides dependable output control for diverse industrial applications. Built for durability, it features photocoupler isolation and is perfect for operating indicator lights, relays, and actuators.
Key Features
Series: MELSEC-Q
Output Type: Transistor (source type, PNP)
Rated Voltage: 24V DC
Output Points: 32
Output Current: 0.5A per point, 4A per common
Wiring Method: Screw terminal block
Isolation: Photocoupler per channel
Response Time: ≤ 0.1 ms
Mounting: Installed in Q-series base unit
Protection: Overcurrent and short-circuit protection
Status LEDs: Per output channel
Applications
Solenoid and actuator control
Signal tower and lamp outputs
Conveyor systems
Material handling equipment
Machine automation panels
Product Details
| Brand | Mitsubishi |
| Product type |
Digital Output Module |
| Model |
QY40P |
| Specifications |
Voltage Range: 15–30V DC Output Type: Source (PNP) transistor Points per Module: 32 Max Current per Point: 0.5A Max Current per Common: 4A Response Time: ≤ 0.1 ms Leakage Current (OFF): ≤ 0.1 mA Voltage Drop (ON): ≤ 0.5V Insulation Type: Photocoupler Mounting Method: Rack mount (MELSEC-Q base unit) Operating Temperature: 0°C to 55°C Dimensions: Approx. 98 x 27.4 x 90 mm Weight: 0.2 kg Certifications: CE, UL, RoHS
|
| Country of Origin | Japan |
| Similar Modles |
Q61P-A1 Q61P-A2 Q61P Q62P Q63P Q173DPX Q35BL QX11L QY51PL Q38BL QX21L QG69L Q65BL QY11AL Q68BL QY13L Q55BL QY23L |
| Other Models |
Q series large type main base unit:Generic term for Q35BL and Q38BL MELSEC-Q series main base units Q series large type extension base unit:Generic term for Q65BL, Q68BL, and Q55BL MELSEC-Q series extension base units Q series large type I/O module: Generic term for QX11L, QX21L, QY11AL, QY13L, QY23L, and QY51PL MELSEC-Q series I/O modules Q series large type blank cover: Abbreviation for QG69L MELSEC-Q series blank cover Q series: Abbreviation for Mitsubishi MELSEC-Q series programmable controller A/QnA series: Abbreviation for Mitsubishi MELSEC-A/QnA series programmable controller High Performance model QCPU:Generic term for Q02CPU, Q02HCPU, Q06HCPU, Q12HCPU, and Q25HCPU Universal model QCPU:Generic term for Q00UCPU, Q01UCPU, Q02UCPU, Q03UDCPU, Q03UDVCPU, Q03UDECPU, Q04UDHCPU, Q04UDVCPU, Q04UDEHCPU, Q06UDHCPU, Q06UDVCPU, Q06UDEHCPU, Q10UDHCPU, Q10UDEHCPU, Q13UDHCPU, Q13UDVCPU, Q13UDEHCPU, Q20UDHCPU, Q20UDEHCPU, Q26UDHCPU, Q26UDVCPU, Q26UDEHCPU, Q50UDEHCPU, and Q100UDEHCPU MELSECNET/H remote I/O module:General term for QJ72LP25-25, QJ72LP25G, QJ72LP25GE, and QJ72BR15 Q3 B:Generic term for Q33B, Q35B, Q38B, and Q312B main base units on which CPU module (except Q00JCPU and Q00UJCPU), Q series power supply module, Q series I/O module, and intelligent function module can be mounted Q3 DB:Generic term for Q35DB, Q38DB, and Q312DB multiple CPU high speed main base units on which CPU module (except Q00JCPU and Q00UJCPU), Q series power supply module, Q series I/O module, and intelligent function module can be mounted Q5 B:Generic term for Q52B and Q55B extension base units on which Q series I/O module and intelligent function module can be mounted Q6 B:Generic term for Q63B, Q65B, Q68B, and Q612B extension base units on which Q series power supply module, Q series I/O module, and intelligent function module can be mounted QA1S5 B: Another term for QA1S51B extension base unit on which AnS series I/O module and special function module can be mounted QA1S6 B:Generic term for QA1S65B and QA1S68B extension base units on which AnS series power supply module, AnS series I/O module, and special function module can be mounted QA6 B:Generic term for QA65B and QA68B extension base units on which A series power supply module, A series I/O module, and special function module can be mounted A5 B:Generic term for A52B, A55B, and A58B extension base units on which A series I/O module and special function module can be mounted without power supply A6 B:Generic term for A62B, A65B, and A68B extension base units requiring power supply on which A series I/O module and special function module can be mounted QA6ADP: Abbreviation for QA6ADP QA conversion adapter module QA6ADP+A5 B/A6 B: Abbreviation for A large type extension base unit on which QA6ADP is mounted Power supply module: Generic term for Q61P-A1, Q61P-A2, Q61P, Q61P-D, Q62P, Q63P, Q64P, Q64PN power supply modules SRAM card: Generic term for the Q2MEM-1MBS, Q2MEM-2MBS, Q3MEM 4MBS, and Q3MEM-8MBS SRAM cards 38-point terminal block: Abbreviation for MELSEC-A series 38-point terminal block
|
| Similar Q Series PLC Modules |
QX10 QX10-TS QX28 QX40 QX40-S1 QX40-TS QX40H QX41 QX41-S1 QX41-S2 QX42 QX42-S1 QX50 QX70 QX70H QX71 QX72 QX80 QX80-TS QX80H QX81 QX81-S2 QX82 QX82-S1 QX90H QY10 QY10-TS QY18A QY22 QY40P QY40P-TS QY41H QY41P QY42P QY50 QY68A QY70 QY71 QY80 QY80-TS QY81P QY82P QH42P QX41Y41P QX48Y57 QI60 Q64ADQ68ADV Q68ADI Q62DA Q64DA Q68DAV Q68DAI Q62DAN Q68DAVN Q68DAIN QX42 QX40 QX41 QX40-S1 QX41-S1 QX42-S1 QX80 QX81 QX10 QX28 QX70 QX71 QX72 QY40P QY41P QY42P QY50 QY80 QY81 Q62AD-DGH Q66AD-DG Q64AD-GH Q64DAN Q2MEM-2MBS Q2MEM-2MBF Q2MEM-4MBF Q2MEM-8MBA Q2MEM-16MBA Q3MEM-4MBS Q3MEM-8MBS
|

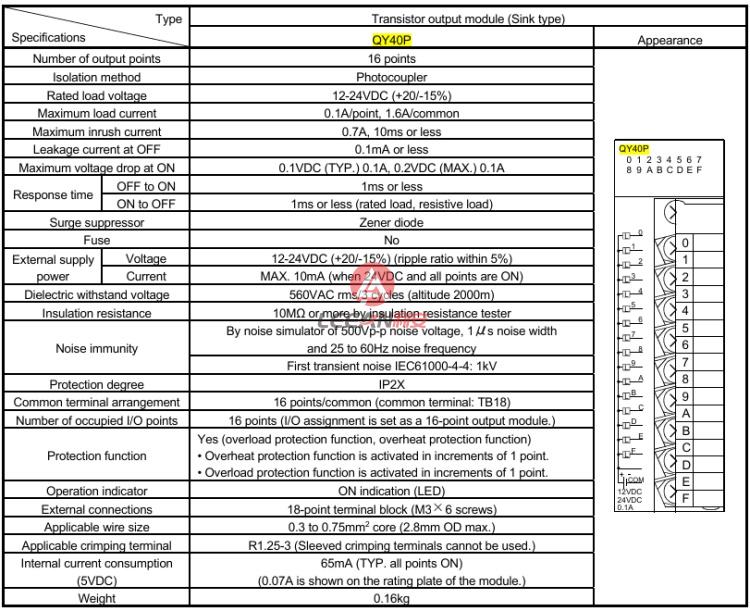

QY40P Transistor Output Module (Sink Type)
