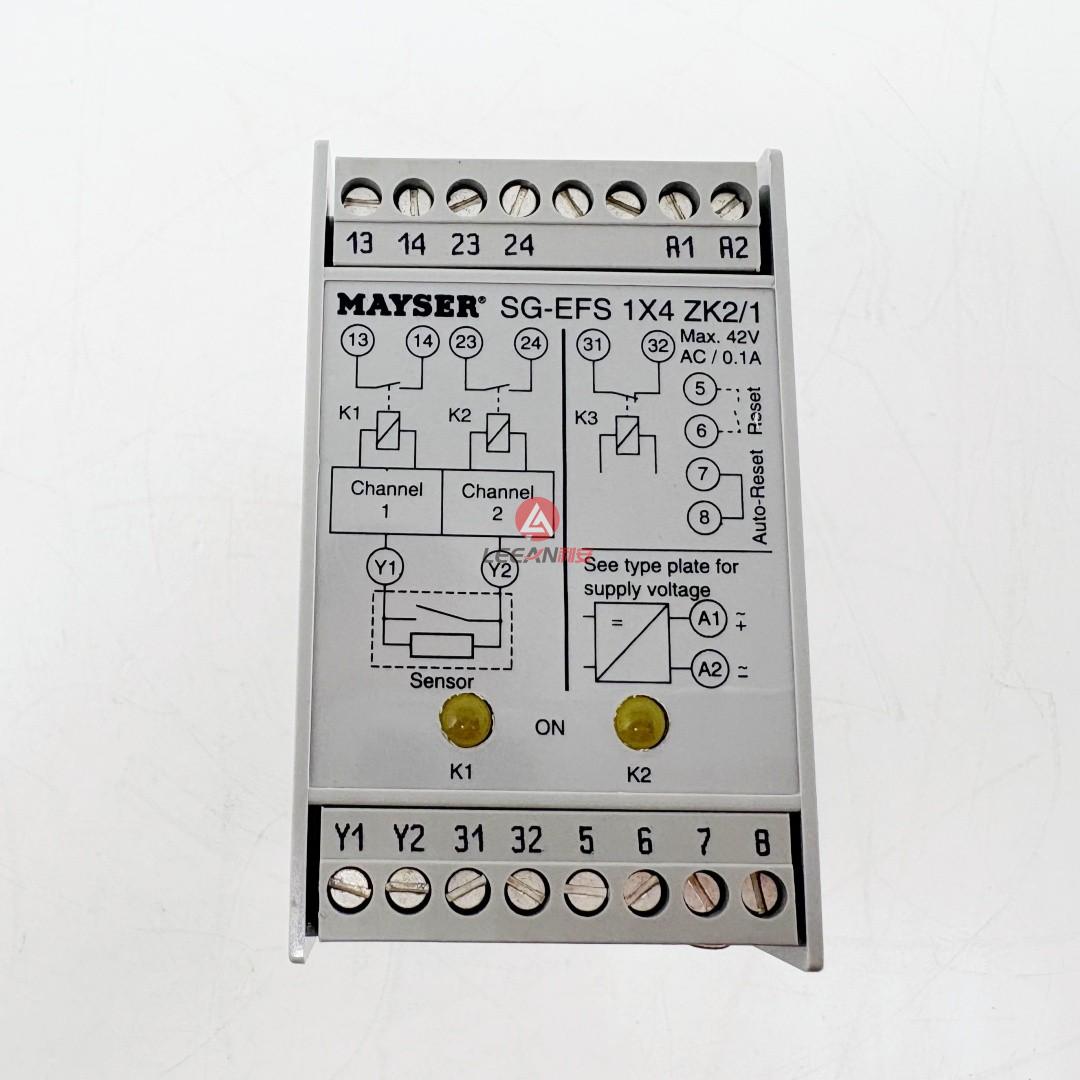

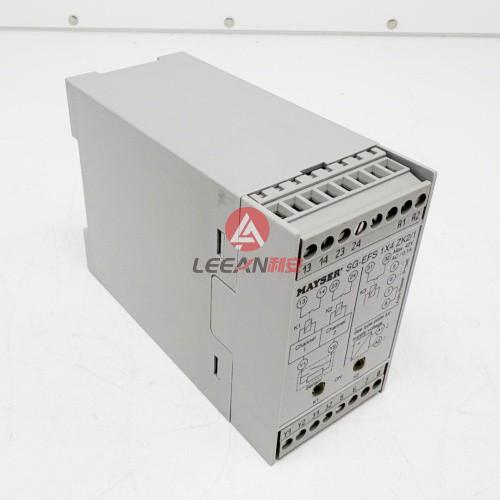

MAYSER Safety Control Unit SG-EFS 104-ZK2/1 1000841 for Sensors with 1k2 AC/DC 24 V New

Description

MAYSER Safety Control Unit SG-EFS 104-ZK2/1 1000841 for Sensors with 1k2 AC/DC 24 V New

Overview

The Mayser SG-EFS 104-ZK2/1 Safety Control Unit 3.0 is a versatile and advanced electrical safety system designed for various industrial applications. This control unit, with an IP20 rating, ensures the protection of the internal components against ingress from dust, while still allowing access for easy servicing. The unit operates on a voltage range of 20VAC/DC to 24VAC/DC.

The Mayser SG-EFS 104-ZK2/1 Safety Control Unit 3.0 is equipped with a safety function generator, which can be used to monitor and control various safety functions in machinery and equipment. It is compliant with the latest safety standards, including EN 61850-2-101 and IEC 61508, ensuring the highest level of safety and reliability.

This control unit features a clear, easy-to-read graphical display, which provides real-time information about the status of the safety functions and any faults or warnings. It also includes a user-friendly programming interface, which allows for easy configuration and customization of safety functions according to specific application requirements.

The Mayser SG-EFS 104-ZK2/1 Safety Control Unit 3.0 is designed for rugged industrial use, with a robust construction that can withstand harsh operating conditions. It is built with high-quality components, ensuring long-lasting performance and minimal maintenance requirements. The unit also includes a built-in power supply unit, which ensures a stable power supply for the safety functions.

Details

Operation

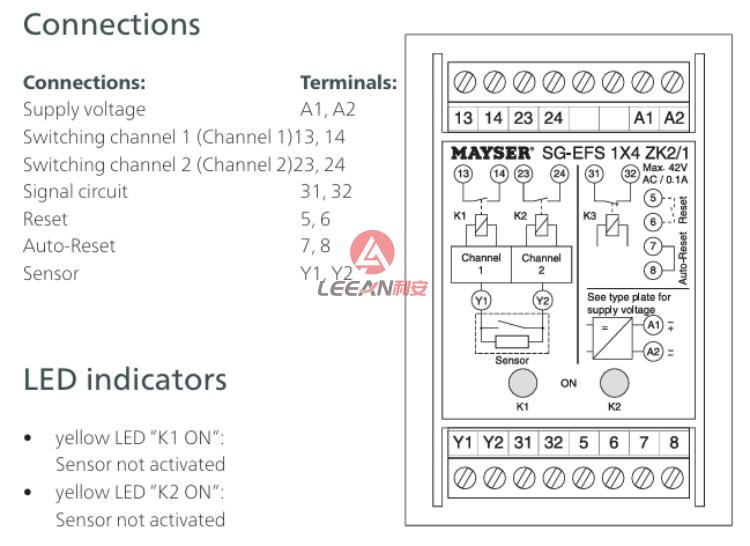

The single-fault-safe electronics module has dual channels (redundant). Each channel controls a force-guided relay and additionally monitors the relay of the other channel. The electronic system monitors the electrical resistance of the sensor with a defined zero signal current.
When the sensor is not actuated and after a reset, the relays K1 and K2 are energised. The yellow LEDs “K1 ON“ and “K2 ON“ are on, the switching channels 1 and 2 are closed and the signal circuit is open. When the sensor is actuated, the K1 and K2 relays are de-energised. The yellow LEDs “K1 ON“ and“K2 ON“ go out, the switching channels 1 and 2 are open, and the signal circuit is closed.If the sensor cable breaks, relays K1 and K2 are de-energised. The yellow LEDs “K1 ON“ and “K2 ON“ go out, the switching channels 1 and 2 are open, and the signal circuit is closed.
The signal circuit works opposed to the switch channels 1 and 2.
