Description

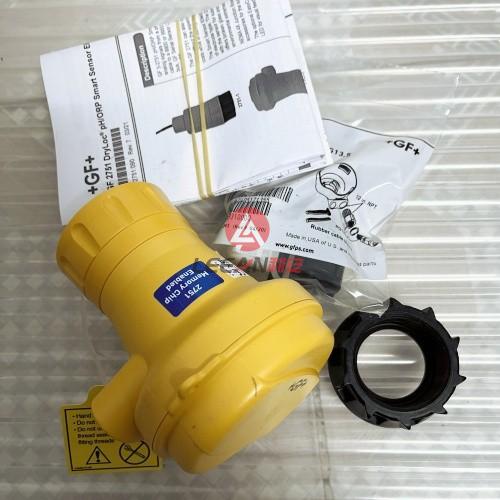

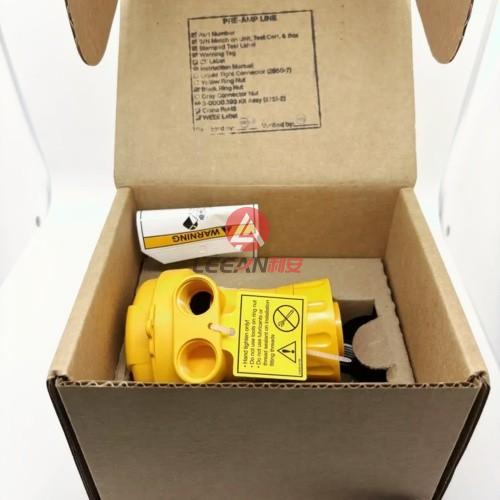

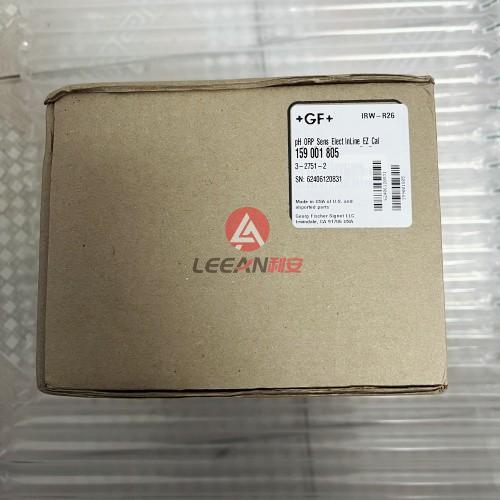

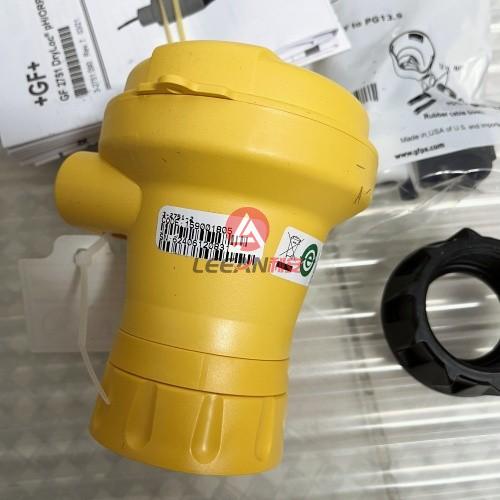

+GF+ Georg Fischer DryLoc Smart Sensor 3-2751-2 Electronics pH/ORP Sensors 159001805 New
Overview
GF 3-2751 pH/ORP Smart Sensor Electronics is a blind transmitter that processes analog signals from a pH or ORP electrode and transmits digital data via a three wire cable to a 9900 or 9950 GF transmitter or a GF 0486 Profibus Concentrator. The serial bus, GF Serial Sensor Link (S3L) is the latest development in leading-edge technology from GF.
The GF 2751 can also output the signal over a 4 to 20 mA current loop with a pre-set scale without the expense of local display. Preamplification is built-in reducing system costs while ensuring absolute signal integrity up to 305 m (1,000 ft).
The Smart Sensor Electronics self-configure for pH or ORP via automatic recognition of electrode type. The DryLoc electrode connector quickly forms a robust assembly with the sensor for submersible and in-line installations. The Smart Sensor Electronics offers broken glass and high impedance detection, remote calibration, storage of environmental extremes, and manufacturing electrode data. (see page 10 for details).
NEMA 4X Junction Boxes are integral parts of the in-line version and are available as accessories for the submersible version.
The optional EasyCal feature allows simple push-button calibration and includes an LED for visual feedback.
Details
2751 DryLoc pH/ORP Smart Sensor Electronics:
3-2726-LC-01 159 001 560 Low Conductivity, Bulb pH Electrode, DryLoc, Pt1000, ISO 7/1-R¾ or GF fittings
3-2734-00 159 001 774 Flat pH Electrode + Memory Chip, DryLoc, Pt1000, ¾ in. NPT or GF fittings
3-2734-01 159 001 775 Flat pH Electrode + Memory Chip, DryLoc, Pt1000, ISO 7/1-R¾ or GF fittings
3-2734-HF-00 159 001 776 HF Resistant, Flat pH Electrode + Memory Chip, DryLoc, Pt1000, ¾ in. NPT or GF fittings
3-2734-HF-01 159 001 777 HF Resistant, Flat pH Electrode + Memory Chip, DryLoc, Pt1000, ISO 7/1-R¾ or GF fittings
3-2736-00 159 001 778 Bulb pH Electrode + Memory Chip, DryLoc, Pt1000, ¾ in. NPT or GF fittings
3-2736-01 159 001 779 Bulb pH Electrode + Memory Chip, DryLoc, Pt1000, ISO 7/1-R¾ or GF fittings
3-2736-HF-00 159 001 780 HF Resistant, Bulb pH Electrode + Memory Chip, DryLoc, Pt1000, ¾ in. NPT or GF fittings
3-2736-HF-01 159 001 781 HF Resistant, Bulb pH Electrode + Memory Chip, DryLoc, Pt1000, ISO 7/1-R¾ or GF fittings
3-2756-WTP 159 001 390 Electrode, pH (plastic body), DryLoc, bulb, Pt1000, Wet-Tap
3-2756-WTP-1 159 001 384 Electrode, pH (plastic body), DryLoc, bulb, 3KΩ Balco, Wet-Tap
3-2744-1 159 001 944 Flat surface pH differential electrode, DryLoc connector, 3 KΩ Balco RTD
3-2744-2 159 001 910 Flat surface pH differential electrode, DryLoc connector, Pt1000 RTD
3-2746-1 159 001 911 Bulb pH differential electrode with bulb protection, DryLoc connector, 3 KΩ Balco RTD
3-2746-2 159 001 912 Bulb pH differential electrode with bulb protection, DryLoc connector, Pt1000 RTD
3-2774-HT 159 001 794 3KΩ Balco RTD, High Temperature
3-2774-HT-C 159 001 795 BNC connector, 3KΩ Balco RTD, NPT, High Temperature
3-2776-1 159 000 960 Electrode, pH, DryLoc, bulb, Pt1000, ¾ in. NPT process connection
DryLoc ORP (Redox) Electrodes:
3-2725-60 159 001 561 Flat ORP Electrode, DryLoc, 10KΩ ID, ¾ in. NPT or GF fittings
3-2725-61 159 001 562 Flat ORP Electrode, DryLoc, 10KΩ ID, ISO 7/1-R¾ or GF fittings
3-2735-60 159 001 782 Flat ORP Electrode, DryLoc, 10KΩ ID, ¾ in. NPT or GF fittings
3-2735-61 159 001 783 Flat ORP Electrode, DryLoc, 10KΩ ID, ISO 7/1-R¾ or GF fittings
3-2757-WTP 159 001 391 Electrode, ORP (plastic body), DryLoc, bulb, 10KΩ ID, Wet-Tap
3-2745-1 159 001 913 Flat surface ORP differential electrode, DryLoc connector, 10 KΩ ID resistor
3-2747-1 159 001 914 Bulb ORP differential electrode with bulb protection, DryLoc connector, 10 KΩ ID resistor
3-2775 159 000 957 Electrode, ORP, DryLoc, flat, 10KΩ ID, ¾ in. NPT process connection
3-2777 159 000 961 Electrode, ORP, DryLoc, bulb, 10 KΩ ID, ¾ in. NPT process connection
Brand:
+GF+ Georg Fischer
Type
Smart Sensor
Model
3-2751-2
Part Number
159001805
Country of Origin
U.S.A
Weight
1KG
More Products
3-2751-1-025 159 070 110 In-line Smart Sensor Electronics with 7.6 m (25 ft) cable (recommended for use with 9900 or 9950)
3-2751-1-050 159 070 111 In-line Smart Sensor Electronics with 15.2 m (50 ft) cable (recommended for use with 9900 or 9950)
3-2751-1-100 159 070 112 In-line Smart Sensor Electronics with 30.5 m (100 ft) cable (recommended for use with 9900 or 9950)
3-2751-2 159 001 805 In-line Smart Sensor Electronics with Junction Box and EasyCal (recommended for current loop and 0486)
3-2751-3 159 001 806 Submersible Smart Sensor Electronics with 4.6 m (15 ft) cable, ¾ in. NPT threads
3-2751-3-025 159 070 113 Submersible Smart Sensor Electronics with 7.6 m (25 ft) cable, ¾ in. NPT threads
3-2751-3-050 159 070 114 Submersible Smart Sensor Electronics with 15.2 m (50 ft) cable, ¾ in. NPT threads
3-2751-3-100 159 070 115 Submersible Smart Sensor Electronics with 30.5 m (100 ft) cable, ¾ in. NPT threads
3-2751-4 159 001 807 Submersible Smart Sensor Electronics with 4.6 m (15 ft) cable, ISO 7/1-R¾ threads
DryLoc pH Electrodes:
3-2724-00 159 001 547 Flat pH Electrode, DryLoc, Pt1000, ¾ in. NPT or GF fittings
3-2724-01 159 001 548 Flat pH Electrode, DryLoc, Pt1000, ISO 7/1-R¾ or GF fittings
3-2724-HF-10 159 001 771 HF Resistant, Flat pH Electrode, DryLoc, 3K Balco, ¾ in. NPT or GF fittings
3-2724-HF-11 159 001 772 HF Resistant, Flat pH Electrode, DryLoc, 3K Balco, ISO 7/1-R¾ or GF fittings
3-2726-00 159 001 555 Bulb pH Electrode, DryLoc, Pt1000, ¾ in. NPT or GF fittings
3-2726-01 159 001 556 Bulb pH Electrode, DryLoc, Pt1000, ISO 7/1-R¾ or GF fittings
3-2726-HF-00 159 001 551 HF Resistant, Bulb pH Electrode, DryLoc, Pt1000, ¾ in. NPT or GF fittings
3-2726-HF-01 159 001 552 HF Resistant, Bulb pH Electrode, DryLoc, Pt1000, ISO 7/1-R¾ or GF fittings
3-2726-LC-00 159 001 559 Low Conductivity, Bulb pH Electrode, DryLoc, Pt1000, ¾
