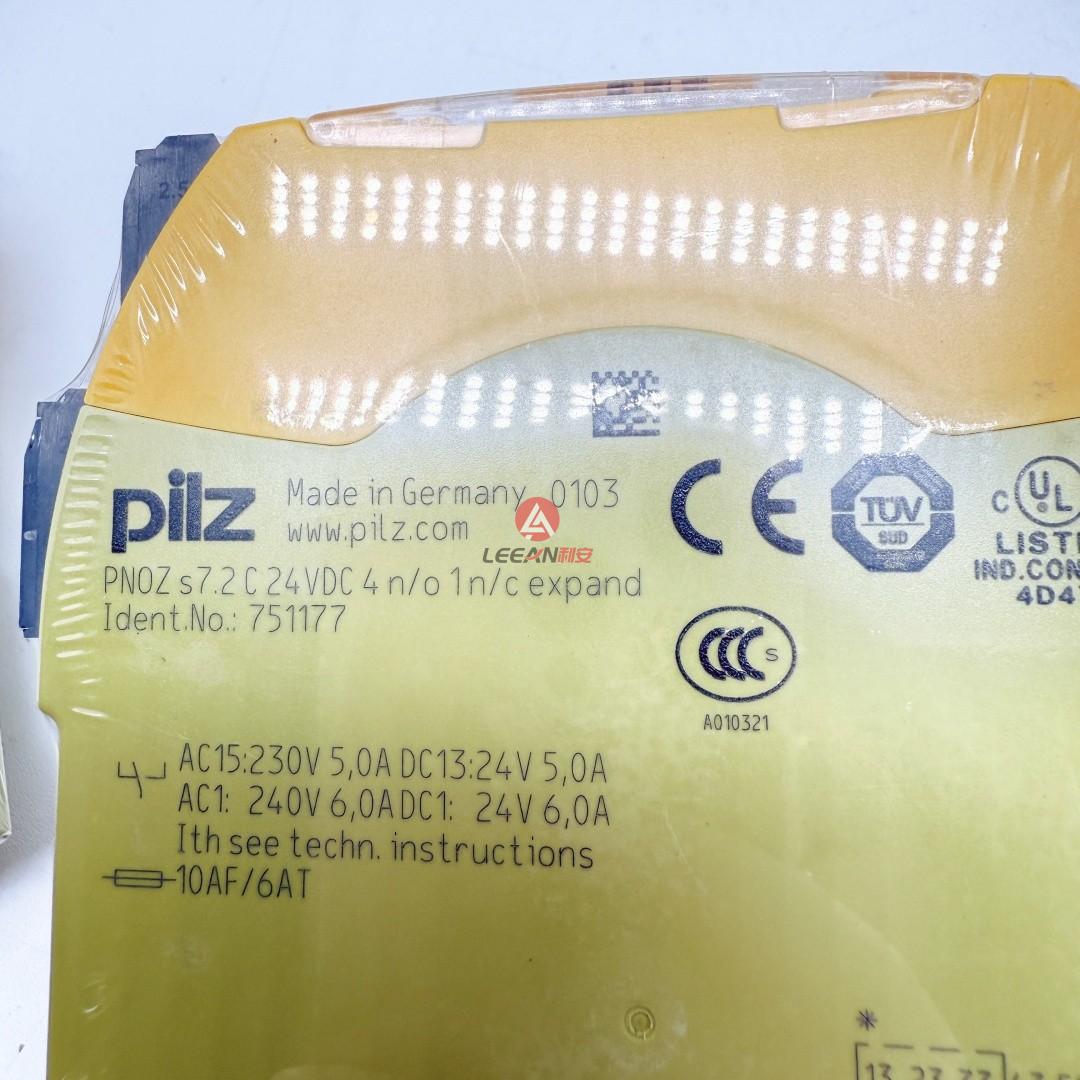

PILZ PNOZsigma Contact Expansion Module 751177 PNOZ s7.2C Safety Relay 24VDC 4n/o 1n/c Expand New

Description

PILZ PNOZsigma Contact Expansion Module 751177 PNOZ s7.2C Safety Relay 24VDC 4n/o 1n/c Expand New

Overview

Pilz PNOZsigma PNOZ s7.2 C Expansion Module Safety Relay, 24V dc, Dual-Channel, 4 Safety Contacts.

Safety features

The unit meets the following safety requirements:

The contact expander module expands an existing circuit. As the output relays are monitored via the base unit's feedback loop, the safety functions on the existing circuit are transferred to the contact expander module.

The safety function remains effective in the case of a component failure.

Earth fault in the feedback loop:
Detected, depending on the base unit that is used.

Earth fault in the input circuit:
The output relays de-energise and the safety contacts open.

Details

Brand:	PILZ
Product	Safety Relay
Model	751177
Country of Origin	Germany
Weight	0.5KG
Similar Base Unit	PONZ S2 750102 PONZ S2 751102 PONZ S3 750103 PONZ S3 751103 PONZ S4 750104 PONZ S4 751104 PONZ S5 750105 PONZ S5 751105 PONZ XV2 774502 PONZ XV2 774500 PONZ XV2 774505 PONZ XV2 774508 PONZ XV2 0.5S 774505 PONZ XV2P 777500 PONZ XV2P 777502 PONZ XV2P 777504 PONZ XV2P 787502 PONZ XV3 774542 PONZ XV3 774540 PONZ XV3P 777510 PONZ XV3P 777512 PN0Z S7 751107 PNOZ S7 750107 PNOZ S7.1 751167 PNOZ S7.1 750167 PNOZ S7.2 751177 PNOZ S7.2 750177 PNOZ S2 750102 PNOZ S2C 751102 PNOZS6 750106 PNOZS6C 751106 PNOZS9 750109 PNOZS9C 751109 PNOZ X2 1 774306 PNOZ X1 774300 PNOZ X2 8P 777301 PNOZ X3 774310 S7.1 751167 S7.2 751177 S11 751111 S4 751134 S4 750134 S9 750109 PiLZ 773536 S8 750108 S7.1 750167 S7.2 750177 750020 777301 787301 777302 787302 X3 774318 X3 774310 X2.8P 777301 X4 774730 XV2 774502 XV2 774500 X1 774300 PZE X4 774585 XV3 774542 X3P 777310 PNOZ C1 710001 XV3 774540 X3P C 787310 X3 774314 X2.8P 777302 750004 X2.1 774306 X4 774738 S2 C 751102 S2 750102 PNOZ s3 750103 PNOZ s3C 751103 PNOZ s4 750104 PNOZ s4C 751104 PNOZ s5 750105 PNOZ s5C 751105 PNOZ s7 750107 PNOZ s7C 751107 PNOZ s 750134 PNOZ S1 750101 PNOZ S1C 751101 When you ask for the price, pls advice the coil voltage.

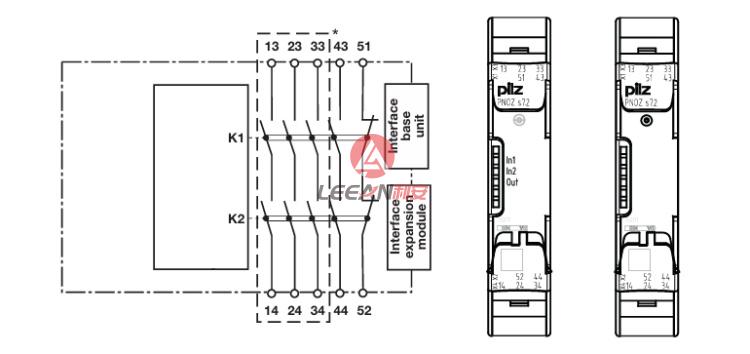

Block diagram/terminal configuration
