Description

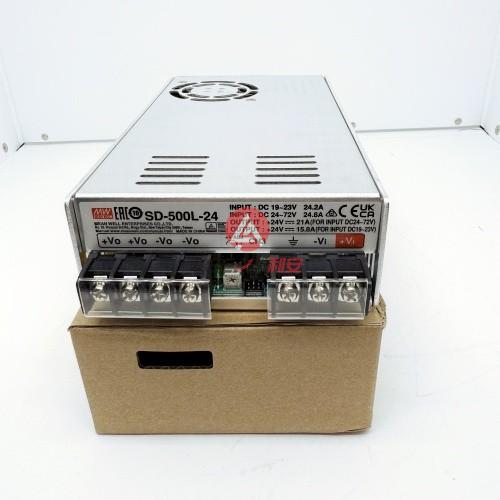

• MW MEAN WELL 500W Single Output DC-DC Converter SD-500L-24 Power Supply Module Switch New

  ---

• Overview
•

• SD-500 Series Features:
  4:1 & 2:1 DC Input range

  Protections: Short Circuit / Overload / Over voltage / Over temp / Input polarity

  Other Features:
•
  DC input active surge current limiting
  Wide 4:1~2:1 DC input range (24V: 19~72VDC, 96V:72~144VDC)Protections: Short circuit / Overload / Over voltage / Over temperature / Input polarity(by fuse)
  2000VAC I/O Isolation
  Forced air cooling by built-in DC fan with fan speed control function
  Output OK Signal
  Built-in remote ON-OFF control
  Built-in remote sense function

  The SD-500L-24 is a 504W DC/DC Enclosed converter featuring 2:1 wide input range. SD-500L-24 input voltage ranges from 19 to 72VDC.
• Voltage output is 24 VDC and adjustable from 23 to 30V and current output is adjustable from 0 to 21 A with rated current 21A .
• With efficiency up to 88%, it is able of operating from -20 to +60 ℃ case temperature under free air convection.
• With built-in EMI filter, low ripple noise the converter has a high realiability in a realtively low cost.


---

Specification

Brand:	MEAN WELL
Product Name:	Power Supply Switch
Model:	SD-500L-24
INPUT:	DC 19-23V 24.2A
INPUT:	DC 24-72V 24.8A
OUTPUT:	+24V  21A(FOR INPUT DC24-72V)
OUTPUT:	+24V  15.8A(FOR INPUT DC19-23V)
Condition:	New
Weight (kg):	2 kg
Package:	Original box.
Warranty	One Year
Other Power Supply Switch	SD-500L-12 SD-500L-24 SD-500L-48 SD-500H-12 SD-500H-24 SD-500H-48 SD-100A-5 SD-100A-12 SD-100A-24 SD-100B-5 SD-100B-12 SD-100B-24 SD-100C-5 SD-100C-12 SD-100C-24 SD-100D-5 SD-100D-12 SD-100D-24 SD-200B-5 SD-200C-5 SD-200D-5 SD-200B-12 SD-200C-12 SD-200D-12 SD-200B-24 SD-200C-24 SD-200D-24 SD-200B-48 SD-200C-48 SD-200D-48 SD-350B-5 SD-350B-12 SD-350B-24 SD-350B-48 SD-350C-5 SD-350C-12 SD-350C-24 SD-350C-48 SD-350D-5 SD-350D-12 SD-350D-24 SD-350D-48 SD-1000L-12 SD-1000L-24 SD-1000L-48 SD-1000H-12 SD-1000H-24 SD-1000H-48 If you need other models, pls feel free to contact us.

---

Drawing

---
