Description

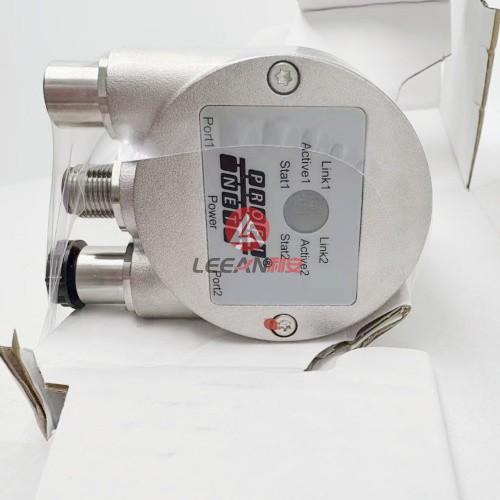

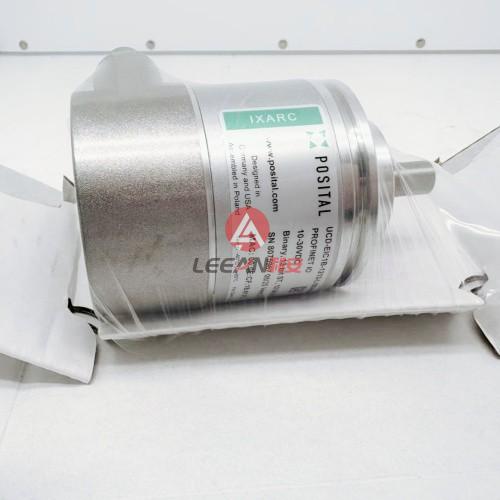

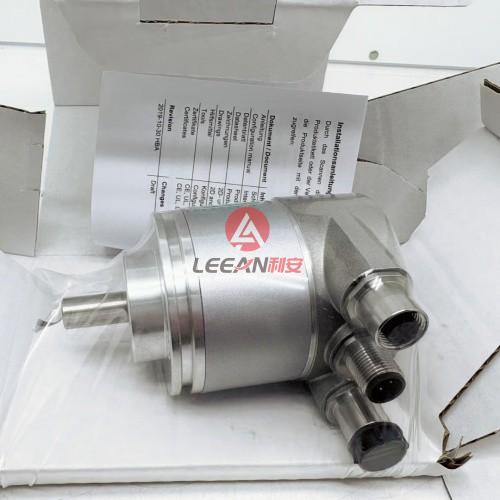

POSITAL IXARC Absolute Multiturn Rotary Encoder UCD-EIC1B-1213-L100-PRM Profinet Interface New
Overview
POSITAL IXARC absolute Multiturn encoder: Profinet interface, Clamp, ø 58 mm (L), ø 10 mm (0.39") shaft and IP64 / IP65 protection class.
Specifications
| Brand |
POSITAL IXARC |
| Type |
Absolute Multiturn Rotary Encoder |
| Model |
UCD-EIC1B-1213-L100-PRM |
|
Interface |
Profinet |
| Speed |
Real Time (RT), Isochronous Real Time (IRT) |
| Profile |
Profidrive Profile 4.x, Encoder Profile 4.0, 4.1, 4.2 |
|
Diagnostics |
Different faults and warnings for Memory,
Temperature, Synchronization, Commissioning
diagnostics, Commissioning invalid scaling,
Communication, Master’s sign of life |
| Features |
Boot-Loader, Round Axis, Flashing LEDs, MRP,
MRPD, Acceleration values |
|
Transmission Rate |
100 Mbit |
|
Interface Cycle Time |
≥ 125 µs |
|
Programming Functions |
Resolution, time base and filter for velocity,
preset, counting direction, IP-Address, Fractional
scaling, Encoder parameter control via GSDML or
Non-Volatile memory |
|
Output Driver |
Ethernet |
|
Supply Voltage |
10-32VDC |
|
Power Consumption |
≤ 3 W |
|
Start-Up Time |
< 15 s |
| Net Weight | 1KG |
| Warranty | One Year |
| Country of Origin | Poland |
|
