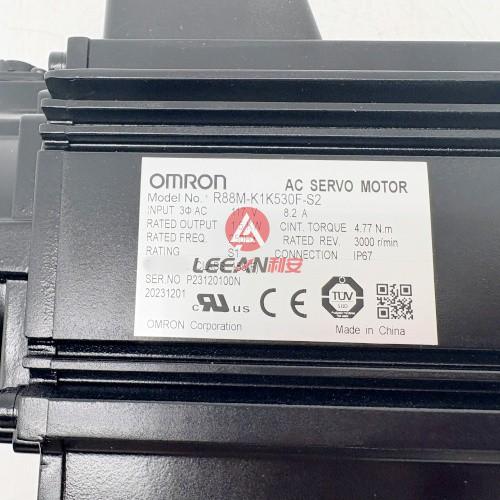

Omron 1.5KW AC Servo Motor R88M-K1K530F-S2 Industrial Servomotor 3AC 117V 8.2A 2000r/min 4.77N.m New

Description

Omron 1.5KW AC Servo Motor R88M-K1K530F-S2 Industrial Servomotor 3AC 117V 8.2A 3000r/min 4.77N.m New

Overview

G5 series AC servo motor, 1.5 kW, 400 VAC, 3000 rpm, 4.77 Nm, Incremental encoder.

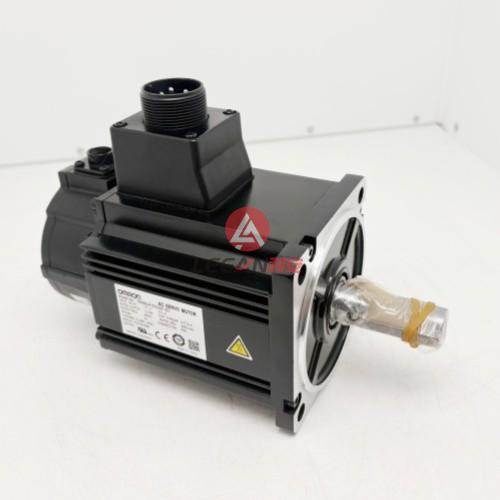

The Omron R88M-K1K530F-S2 is a high-performance AC servo motor from the Accurax G5 series, designed for precise motion control in demanding industrial environments. With a rated power output of 1.5 kW and operating at 400 VAC, it provides high torque performance—ideal for applications such as robotics, packaging, and automated machinery. The motor is equipped with a high-resolution 20-bit incremental encoder for accurate feedback and positioning. Its compact form factor includes a 130 mm square flange and a 22 mm shaft with key and tap, ensuring versatile integration. The IP67 protection rating enhances durability in harsh operating conditions.
Constructed with a straight shaft, the unit comes complete with a shaft key and tap, facilitating secure installation and compatibility with various mounting configurations. The termination style allows for quick connections with additional equipment. This motor's operating temperature range is specified between 0°C and 40°C, making it adaptable to typical operational environments.
Weighing in at 6.7 kg, it remains compact and easy to handle during installation. The motor also complies with multiple safety and performance standards, as evidenced by its certifications from CE, CSA, cULus, TUV, and UL, underscoring its suitability for industrial applications.

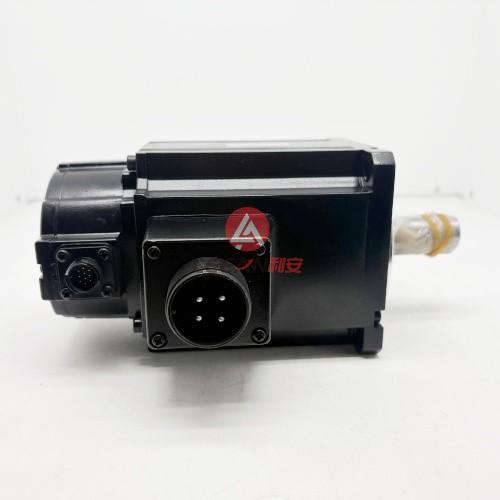

Accurax G5 servomotors include IP67 protection and connectors on the motor body. Use of 10 pole motors and 20 bit encoder results in 40% reduction in motor cogging. The servomotors are 25% lighter and 15% smaller due to patented new stator design PAC-Clamp, 40% iron loss reduction and 15% smaller encoder.
Sizes from 50W to 15 kW, rated speeds of 1000 rpm, 1500 rpm, 2000 rpm and 3000 rpm. Peak torque 300% of continuous torque during 3 seconds or more depending on model High accuracy provided by a 20 bit resolution encoder, ABS encoder as an option IP67 protection in all motor models Low speed ripple and low torque ripple due to low torque cogging Compact design and robust construction including smart connectors No motor settings required, just plug and run.They are widely used in a range of industrial and electronic applications, from robotics to CNC machinery.

When used with a SmartStep 2 drive, the G-series servo motors offer the simplicity and cost-effectiveness of a stepper with the added advantages of a servo system.
• Peak torque 300% of continuous torque during 3seconds or more depending on model

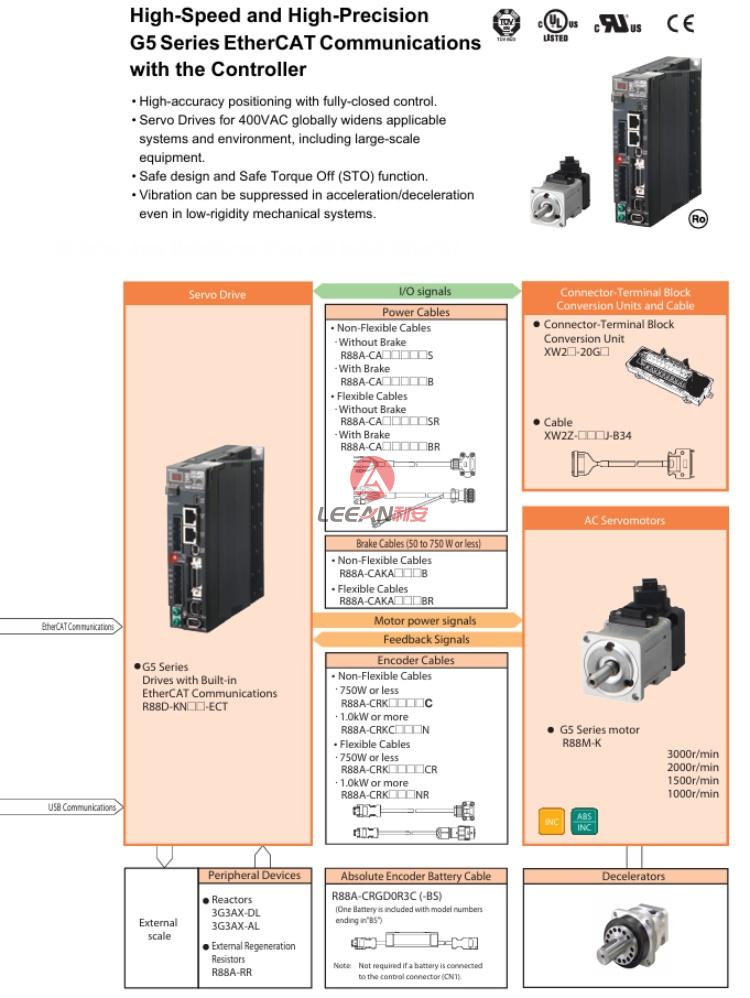

• Servomotors supported by SmartStep2, G-Series and Accurax G5 servo drives
• Cylindrical and flat servomotors types are available
• Encoder accuracy of 10,000step/rev as standard and 17-bit ABS encoder as optional
• IP65 as standard and shaft oil seal available
• Motors with brake as option
Ratings
• 230 VAC single-phase 50W to 1.5kW
(rated torque from 0.16 to 8.62 Nm)
