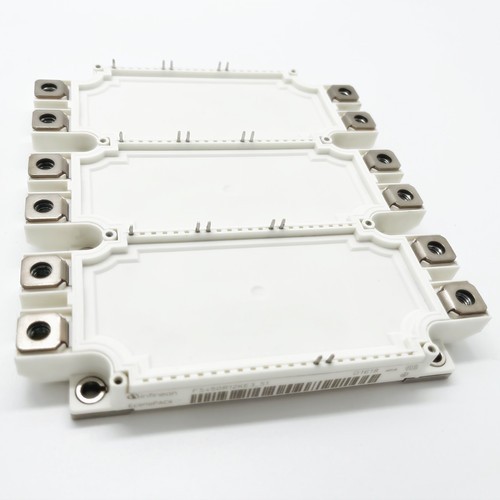

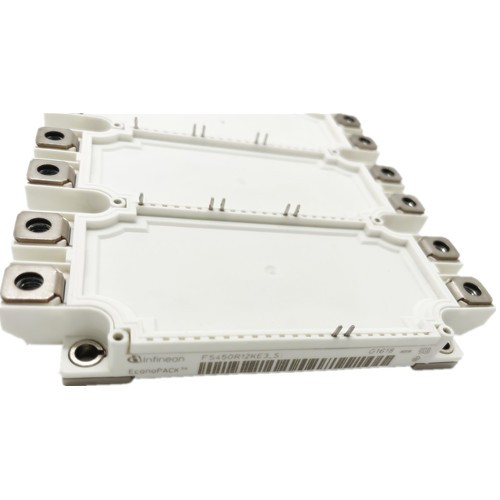

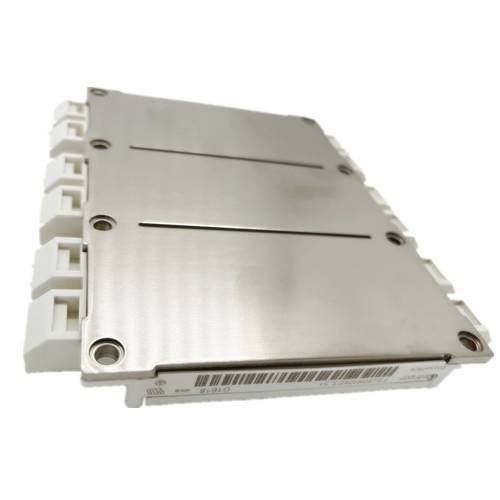

INFINEON THYRISTOR IGBT-INVERTER Module FS450R12KE3-S1 POTENTIAL 1200V, POWER 2100W, CURRENT 450A
FS450R12KE3
1200 V, 450 A sixpack IGBT module
Overview
EconoPACK™ + B-series 1200V sixpack IGBT module with TRENCHSTOP™ IGBT3 and Emitter Controlled HE diode. ALso find our EconoPACK+ D-series for new design: FS450R12OE4
Summary of Features:
a:Easy separation of DC and AC
b:Optimized Thermal Resistance Case to Heat Sink
c:Highest Power Density for compact Inverter Designs
Benefits
Compact modules
a:Easy and most reliable assembly
b:No plugs and cables required
c:Ideal for low inductive system designs
Potential Applications
a:Motor control and drives
b:Solutions for solar energy systems
c:Commercial, construction and agricultural vehicles (CAV)
d:Uninterruptible power supply (UPS)

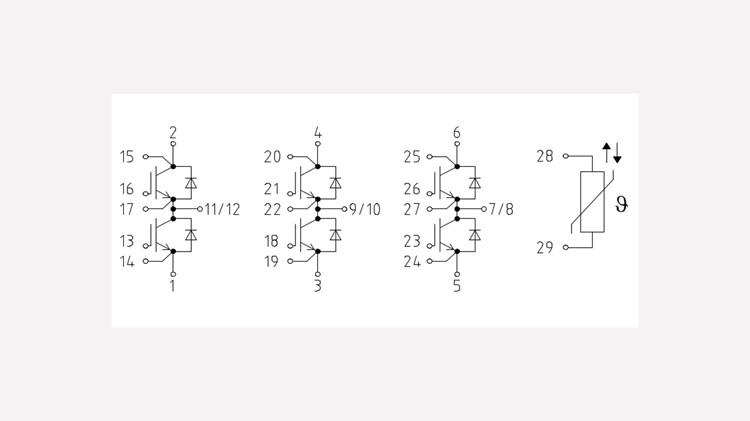

Diagrams
Specifications
Parametrics
FS450R12KE3
Dimensions (width)
150 mm
Dimensions (length)
162 mm
Features
Solder Pin
Housing
EconoPACK™ + B
IC(nom) / IF(nom)
450 A
IC max
450 A
Qualification
Industrial
Technology
IGBT3 - E3
VCE(sat) (Tvj=25°C typ)
1.7 V
VF (Tvj=25°C typ)
1.65 V
Voltage Class max
1200 V
IGBT Module
FS300R12KE4
FS225R12KE3
FS300R12KE3-S1
FS450R17KE3
FS450R12KE3
FS450R12KE4
FS450R12KE3
FS300R12KE3 -S1
FS450R17KE3 FS450R12KE3/AGDR-71C
FS300R12KE3-S1
FS225R12KE3-S1
FZ800R33KF2C
FZ1000R33HE3
FZ1500R33HL3
FZ1200R12KF4
