SICK ATM60 Series Absolute Multiturn Encoder ATM60-P1H13X13 Driver Profibus Encoders 1030014 New
Overview
The SICK ATM60-P1H13X13 is a standard product and does not constitute a safety component as defined in the Machinery Directive. Calculation based on nominal load of components, average ambient temperature 40°C, frequency of use 8760 h/a. All electronic failures are considered hazardous.The SICK STEGMANN ATM60-P1H13X13 Absolute Encoder is engineered for high-precision positioning in industrial automation systems. Featuring a solid shaft design and servo flange, it ensures reliable performance in demanding environments. This encoder includes a PROFIBUS-compatible bus adapter for seamless system integration. It is a high-performance absolute multiturn encoder featuring a robust design suitable for demanding industrial environments. It utilizes magnetic scanning technology for reliable and precise position detection, even under harsh conditions such as dust, moisture, and shock. This encoder offers a PROFIBUS DP interface for seamless integration into automation systems and control networks. With its high resolution (13-bit singleturn and 13-bit multiturn) and extensive programmability for parameters like node address, baud rate, preset, and counting direction, the ATM60-P1H13X13 provides versatile and accurate position feedback for a wide range of applications, including factory automation, logistics, and machine building.
Details
| Brand | SICK |
| Type |
Absolute Multiturn Encoder |
| Model |
ATM60-P1H13X13 |
| Order Code |
1030014 |
|
Technical Information |
Mechanical Design: Solid Shaft, Servo Flange Steps per Revolution: 8,192 (13 bit) Voltage: 10 / 32 V DC Power Consumption: ‰2 W (without load) Shaft Diameter: 6 mm Shaft Length: 10 mm Connection Type: Bus Adapter for PROFIBUS 1 Operating Speed:6,000 min Temperature Range: -20 / +85 °C |
| Net Weight | 1KG |
| Warranty | One Year |
| Country of Origin | Germany |
|
Similar Encoder |
ATM60-A4M12X12 1030004 ATM60-D4H13X13 1030017 ATM60-A4A12X12 1030001 ATM90-AXA0-S01 1033057 ATM60-PAH13X13 1030015 ATM60 P4H13X13 1030013 ATM60-D1H13X13 1030018 ATM60-C1H13X13 1030025 ATM60-A4K12X12 1030002 AD-ATM60-KA3PR 2029225 ATM60-AAK12X12 1030010 ATM60-A4A12X12 1030001 ATM60-A1A0-K20 1034295 ATM60-AAK12X12 ATM60-P1H13X13 ATM60-D4H13X13 ATM60-D1H13X13 ATM90-AXA0-S01 BTF08-A1AM0340 AD-ATM60-SR2DN AD-ATM60-KR1DN AD-ATM60-KR2DN AD-ATM60-KA3PR AD-ATM60-KR3CO
If you have any inquiries of SICK products, pls feel free to contact us.
|

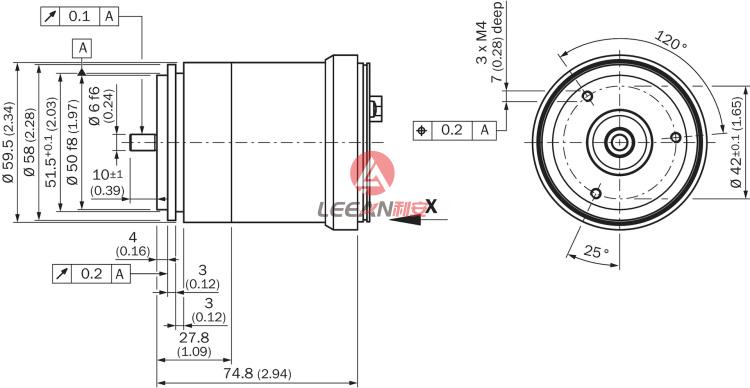

Dimensional Drawing
Anschlussbelegung
1. Internal plug connector to encoder
2.external connection to the bus

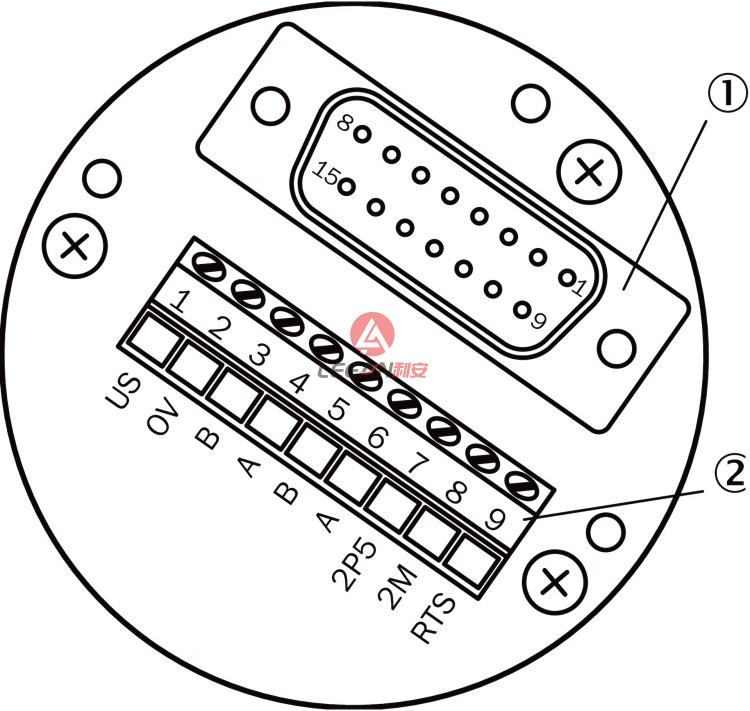

Encoders with a PROFIBUS connection adapter have screw connections (metric/PG) for connecting the bus and supply cables. The bus adapter from the complete device is screwed on to connect the cables. The adjacent figure shows the pin assignment within the bus adapter.
