Description

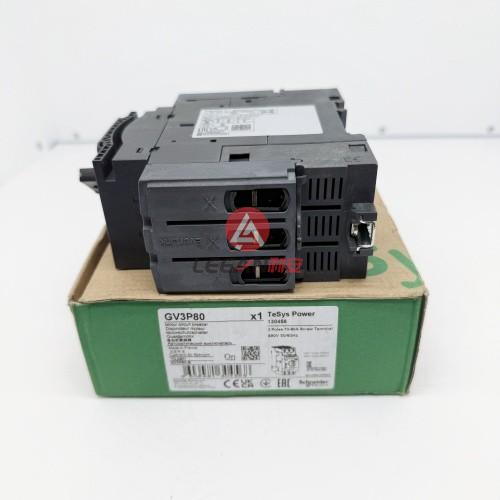

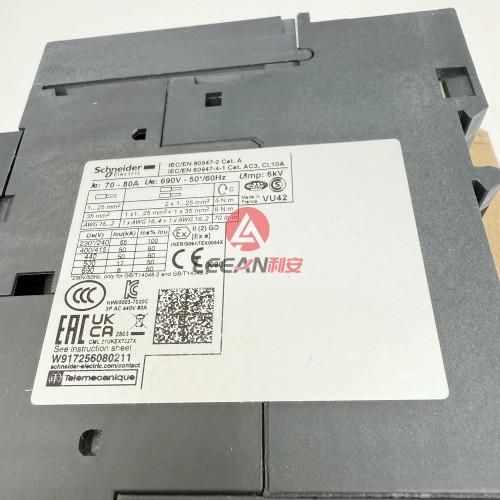

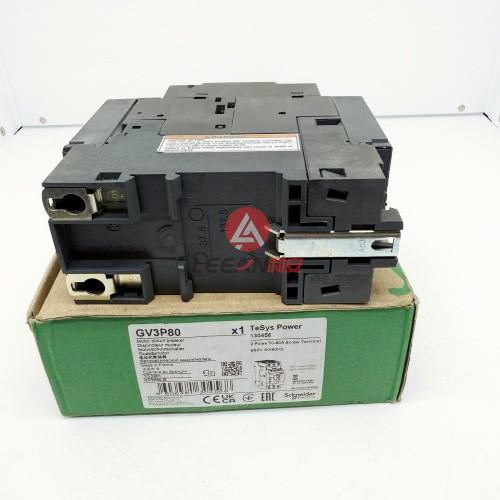

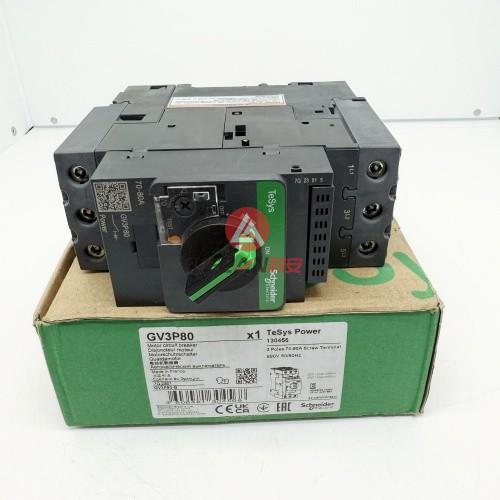

Schneider Electric TeSys Deca 3 Poles Motor Circuit Breaker GV3P80 Thermal Magnetic Breakers 70-80A 690V New
Overview
TeSys GV motor circuit breaker, 3 poles (3P), 80A/690V, for 3-phase motor applications 45kW@400V. It provides a thermal-magnetic protection with a thermal setting range 70-80A, magnetic tripping at 14xIn, high breaking capacity Icu 50kA@400V. Connection by Everlink BTR screw terminals. Start-stop control by rotary knob guaranteed for 20 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX).
Schneider Electric TeSys GV motor circuit breaker, 3 poles (3P), 80A/690V, for 3-phase motor applications 45kWa.400V. It provides a thermal-magnetic protection with a thermal setting range 70-80A, magnetic tripping at 14xIn, high breaking capacity Icu 50kAa.400V.
Details
Brand
Schneider Electirc
Product Name
Circuit Breaker
Model
GV3P80
Specifications
Motor circuit breaker, TeSys Deca, 3P, 70-80 A, 690V,50/60Hz,thermal magnetic, EverLink terminals,Screw Terminal
Country of Origin
France
Weight
0.8KG
Control Breakers
GV3P40 30-40A
GV3P50 37-50A
GV3P65 48-65A
GV3P73 62-73A
GV3P80 70-80A
GV3ME40 25-40A
GV3ME63 40-63A
GV3ME80 56-80A
GV2PM01C 0.1-0.16A
GV2PM02C 0.16-0.25A
GV2PM03C 0.25-0.40A
GV2PM04C 0.40-0.63A
GV2PM05C 0.63-1.0A
GV2PM06C 1.0-1.6A
GV2PM07C 1.6-2.5A
GV2PM08C 2.5-4.0A
GV2PM10C 4.0-6.3A
GV2PM14C 6.0-10A
GV2PM16C 9.0-14A
GV2PM20C 13-18A
GV2PM21C 17-23A
GV2PM22C 20-25A
GV2PM32C 24-32A
GV2PM04C 0.40-0.63A
GV2-ME01C 0.1-0.16A
GV2-ME02C 0.16-0.25A
GV2-ME03C 0.25-0.4A
GV2-ME04C 0.4-0.63A
GV2-ME05C 0.63-1A
GV2-ME06C 1-1.6A
GV2-ME07C 1.6-2.5A
GV2-ME08C 2.5-4A
GV2-ME10C 4-6.3A
GV2-ME14C 6-10A
GV2-ME16C 9-14A
GV2-ME20C 13-18A
GV2-ME21C 17-23A
GV2-ME22C 20-25A
GV2-ME32C 24-32A
GV3A01
GV3A02
GV2LE08
GV2LE16
GV2LE22
GV2LE32
GV2LE06
GV2LE10
GVAE1
GVAE11
GVAN11
If you need other models, pls feel free to contact us.

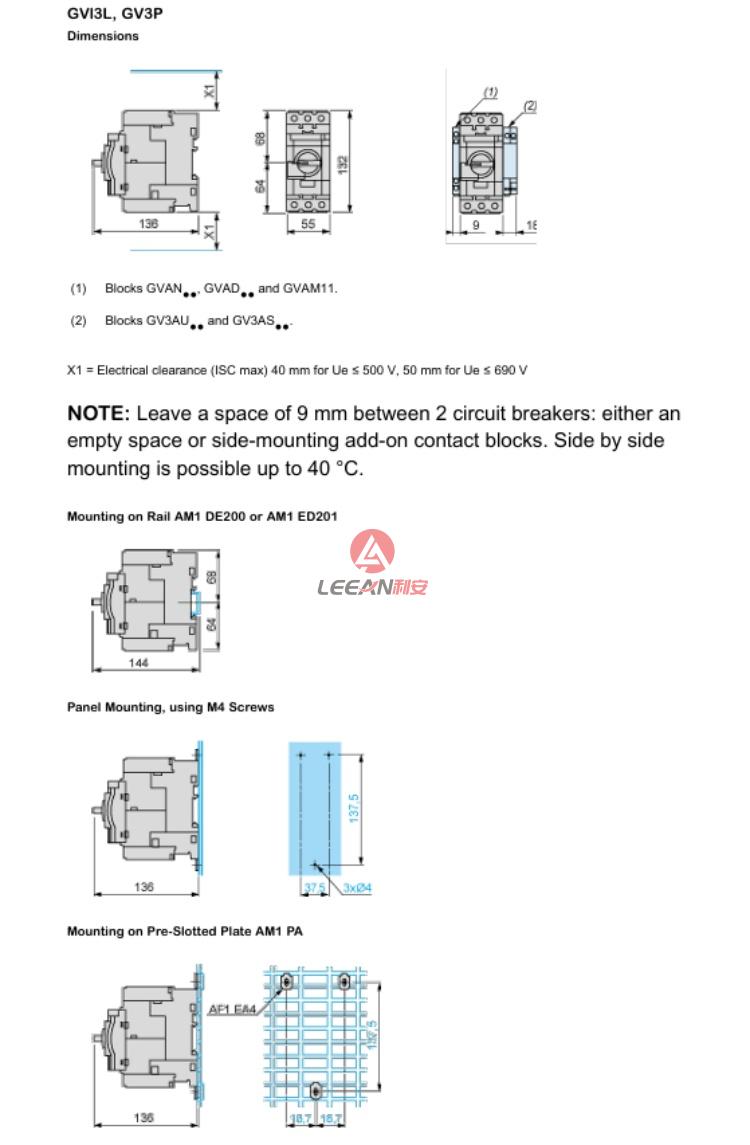

DIMENSIONS and DRAWINGS
