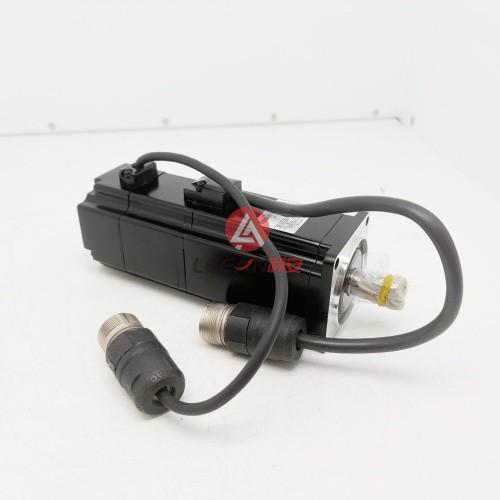

YASKAWA SGMAH Sigma II AC Servo Motor SGMAH-04A1A6CD-OY Industrial Rotary Servomotor 400W 200V 2.8A New
Overview
SGMAH Sigma II
3,000 RPM to 5,000 RPM (Max Speed)
The SGMAH servomotor series is a legacy product and is no longer promoted in the Americas. It had a low-inertia design for extremely fast accelerations and short settling times. There were five frame sizes including NEMA 23 and NEMA 34 flanges providing up to 1,010 oz-in of peak torque.
The Yaskawa SGMAH-04A1A6CD-OY engineered to meet the demanding requirements of modern industrial automation, robotics, and CNC machinery applications. The SGMAH-04A1A6CD-OY boasts a power rating of 400W, making it suitable for a wide range of tasks requiring accurate and consistent performance. Its 200VAC voltage rating ensures compatibility with standard industrial power systems. The motor's rated speed of 3000 RPM allows for rapid and precise movements, enhancing overall system efficiency.
The SGMAH-04A1A6CD-OY is designed to deliver consistent performance and long-term reliability, minimizing downtime and maximizing productivity. Its compact design and versatile mounting options further simplify integration into existing systems.
Features:
High-resolution encoders for accurate positioning
Robust construction for durability in harsh environments
Compatibility with Yaskawa's advanced servo drives for seamless integration
Product Details
| Model |
SGMAH-04A1A6CD-OY is a AC Servo Motor produced by Yaskawa |
|
Servomotor Type |
SGMAH Series |
| Specifications |

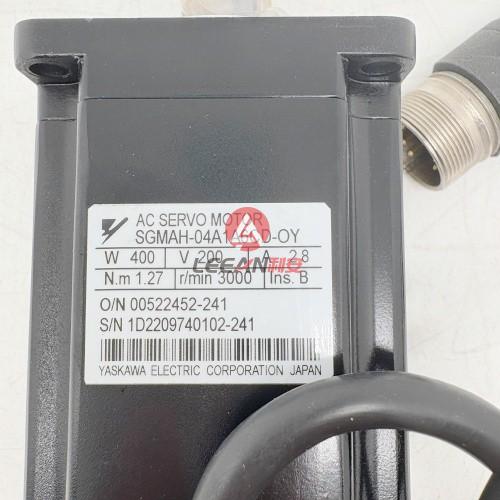

Rated Power:400W Rated Output Voltage:200V Rated Current:2.8A Torque:1.27 N.m Speed:3000r/min Encoder Specifications:16-bit (16384 x 4) Absolute Encoder; Standard Revision Level:Standard Shaft Specifications:Straight with key and tap Accessories:Standard with 24VDC Brake |
| Condition | New Original |
| Country of Origin | Japan |
| Similar Motors |
SGMAH-01A1A2C SGMAH-01AAA41 SGMAH-08A1A21 SGMAH-08AAA61 SGMAH-04AAA41-Y2 SGMAH-04AAA41 SGMGH-44ACA61 SGMGH-44ACA6C SGMAH-08AAA4C SGMAH-08AAA2C SGMAH-08AAA41 SGMGH-13DCA6F SGDM-08ADA SGMAH-02A1A61D SGMAH-02A1A61D-OY SGMAH-01AAA6CD-OY SGMAH-01AAA61D-OY SGMGH-13DCA6F-OY SGMAH-01AAA61D-OY SGMAH-02AAA61D-OY SGMAH-04AAA61D-OY SGMAH-08AAA61D-OY SGMPH-02AAA61D-OY SGMPH-04AAA61D-OY SGMPH-08AAA61D-OY SGMAH-08AAA4C SGMAH-08AAA4D SGMAH-08AAA4E SGMAH-08AAA61 SGMAH-08AAA6S SGMAH-01AAA21 SGMAH-02AAAA2C SGMAH-04AAA2C SGMAH-04AAA41 SGMAH-08AAA21 SGMAH-04AAA21-E SGMAH-01A1A6C SGMAH-02A1A6C SGMAH-08AAA41 SGMAH-08AAA4C SGMAH-01AAA61D-OY SGMAH-01AAA6CD-OY SGMAH-03DAA6CD-OY SGMAH-04AAA6CD-OY SGMAH-04AAA61D-OY SGMAH-08AAA61D-OY SGMAH-08AAA6CD-OY SGMAH-04AAA41-Y2 SGMAH-04AAA21-Y2 SGMAS-08A2A21-Y2 SGMAH-A5ABA21 SGDM-08ADA SGMAH-08AAA4C SGMAH-01ABA2CSGMAH-04A1A21 SGMAH-08AAA4C SGMAH-A3ABA-SF11 SGMAH-C2ACA2C SGMAH-02AAN21 SGMAH-A5AAA61 SGMAH-01AAA61 SGMAH-02AAA61 SGMAH-04AAA61 SGMAH-08AAA61 SGMPH-01AAA61 SGMPH-02AAA61 SGMPH-04AAA61 SGMPH-08AAA61 SGMAH-A3A1F41 SGMAH-01AAN21 SGMAH-02AAN21 SGMAH-04AAN21 SGMAH-08ABA21 SGMAH-08AAN21
SGMAH-A3AAA21 If you need other models, pls feel free to contact us. |
SGMDH Series Servo Motor
SGMDH-22ACA2B
SGMDH-22ACA21
SGMDH-22ACA2C
SGMDH-22ACA2D
SGMDH-22ACA2E
SGMDH-22ACA2S
SGMDH-22ACA6B
SGMDH-22ACA61
SGMDH-22ACA6C
SGMDH-22ACA6D
SGMDH-22ACA6E
SGMDH-22ACA6S
SGMDH-22A2A6B
SGMDH-22A2A61
SGMDH-22A2A6C
SGMDH-22A2A6D
SGMDH-22A2A6E
SGMDH-22A2A6S
SGMDH-32A2A6B
SGMDH-32A2A61
SGMDH-32A2A6C
SGMDH-32A2A6D
SGMDH-32A2A6E
SGMDH-32A2A6S
SGMDH-40A2A6B
SGMDH-40A2A61
SGMDH-40A2A6C
SGMDH-40A2A6D
SGMDH-40A2A6E
SGMDH-40A2A6S
SGMDH-12A2A-YR14
SGMDH-12A2A-YRA1
SGMDH-12A2A-YR15
SGMDH-06A2A-YR13
SGMDH-06A2A-YR14
SGMDH-06A2A-YR24
SGMDH-06A2A-YR25
SGMSV-25ADA-SB11
SGMDH-32A2A-YRA1
SGMDH-32A2B-YR13
SGMDH-22A2A-YR14
SGMDH-32A2A-YR51
SGMDH-45A2B-YR15
SGMDH-22ACA61
SGMDH-32A2A2C
SGMDH-40ACA2B
SGMDH-40ACA2C
SGMDH-40ACA2D
Servo Drive
SGDM-01ADA
SGDM-02ADA
SGDM-04ADA
SGDM-05ADA
SGDM-08ADA
SGDM-10ADA
SGDM-15ADA
SGDM-20ADA
SGDM-30ADA
SGDM-50ADA
SGDM-60ADA
SGDM-75ADA
SGDM-01ADA-V
SGDM-02ADA-V
SGDM-04ADA-V
SGDM-05ADA-V
SGDM-08ADA-V
SGDM-10ADA-V
SGDM-15ADA-V
SGDM-20ADA-V
SGDM-30ADA-V
SGDM-50ADA-V
SGDM-60ADA-V
SGDM-75ADA-V
SGDM-A5ADA
SGDM-1EADA
SGDM-A3AD
SGDM-04AE
SGDH-50AE
SGDM-A3ADA
SGDM-A5ADA
SGDM-05DN
SGDM-10DN
SGDM-15DN
SGDM-20DN
SGDM-30DN
SGDM-50DN
SGDM-A5AD-RY24
SGDM-04AC-SD2
SGDM-75AC-NX1
SGDM-04AC-SD2A
SGDM-04AC-SD2B
SGDM-08AC-SD2B

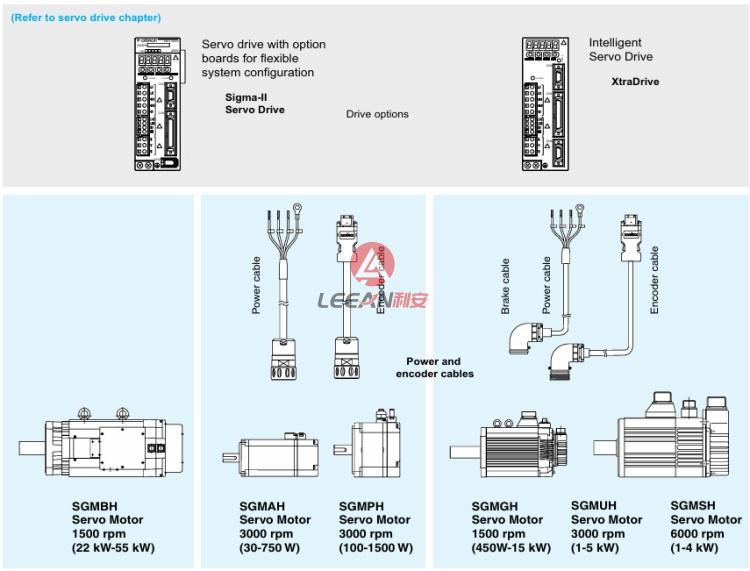

System configuration

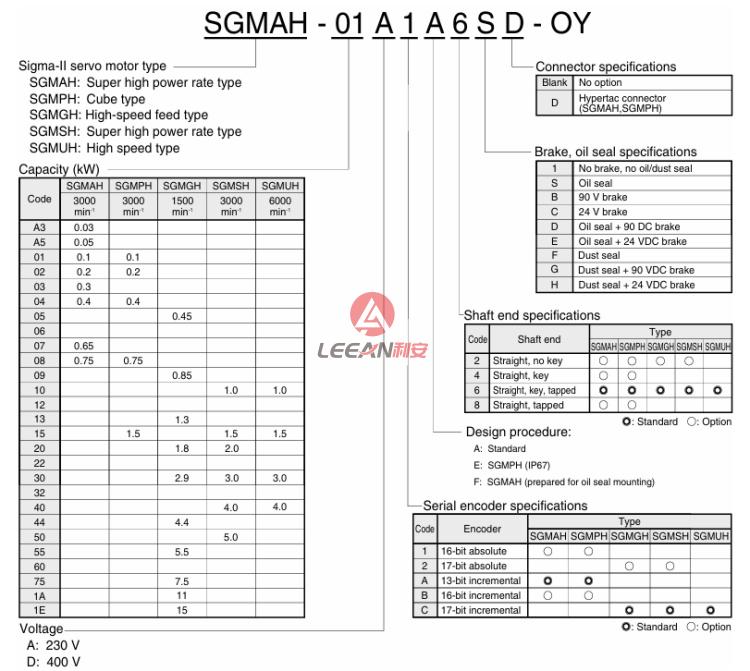

Type designation
