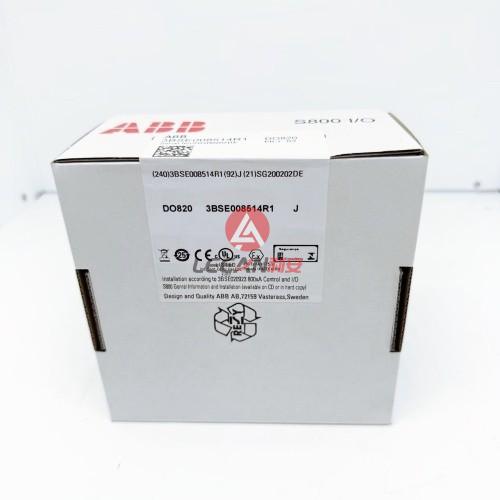

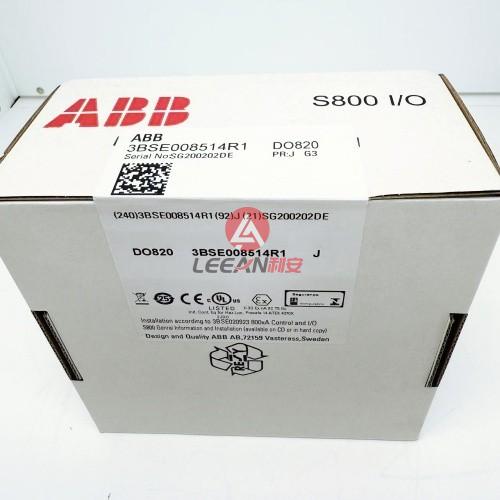

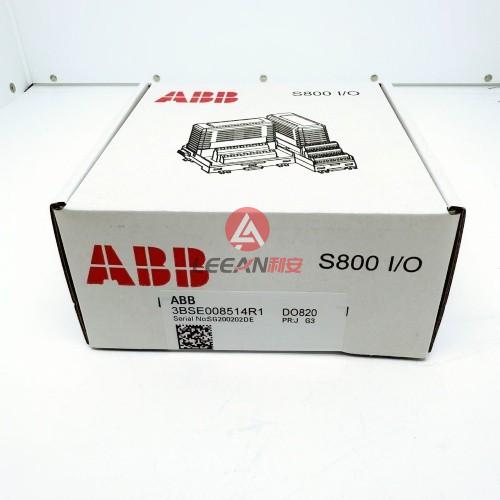

ABB 8 Channel Relay Output Module DO820 Digital Output Modules 3BSE008514R1 for S800 I/O New

Description

ABB 8 Channel Relay Output Module DO820 Digital Output Modules 3BSE008514R1 for S800 I/O New

---

Description

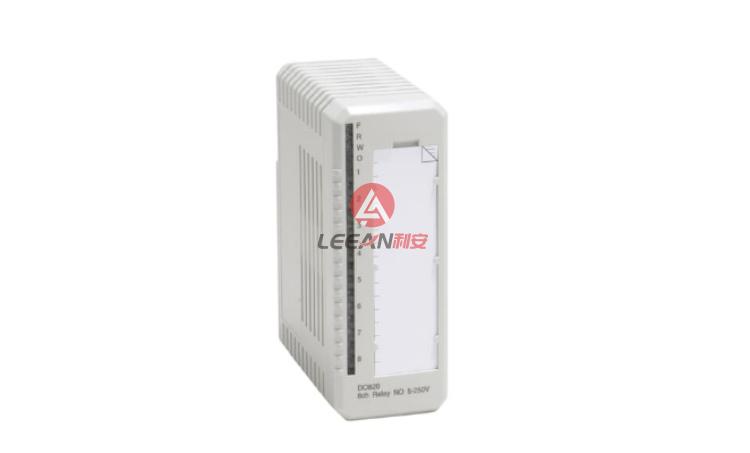

The DO820 is an 8 channel 230 V a.c./d.c. relay (NO) output module for the S800 I/O. The maximum output voltage is 250 V a.c./d.c. and the maximum continuous output current is 3 A. All outputs are individually isolated. Each output channel consists of optical isolation barrier, output state indication LED, relay driver, relay and EMC protection components. The relay supply voltage supervision, derived from the 24 V distributed on the ModuleBus, gives an error signal if the voltage disappears, and the Warning LED turns on. The error signal can be read through the ModuleBus. This supervision can be enabled/disabled with a parameter.

---

Features and benefits

8 channels for 230 V a.c./d.c. relay Normal Open (NO) outputs
8 isolated channels
Output status indicators
OSP sets outputs to predetermined state upon error detection

---

Specifications

Brand	ABB
Type	Relay Output Module
Model	DO820
Article number	3BSE008514R1
Condition	New Original
Weight	1KG
Similar Modules	CI853K01 CI854K01 CI873K01 CI873AK01 CI854BK01 CI858K01 CI867K01 CI868K01 CI854AK01 CI867Ak01 CI871K01 PM851AK01 PM856AK01 PM864AK01 PM866AK01 PM865K01 PM865K02 PM861AK01 PM802F PM803F AI830 AI835 DO801 PM632 AI810 AO810V2 DI810 DO810 FI830F FI820F TU847 TU818 TU810V1 TU831V1 TU830V1 TB820V2 AI801 AO801 SA811F EI813F FI820F SD832 SD833 SS822 CI840A CI830 CI845 CI801 CI810B AI880A DI880 DO880 DO820 AI835 AI830A DI524 DI561 DI562 DI571 DI821 DI801 DI572 DX561 DO571 PM554-RP AI561 AO561 CM574 DI561 SB822 TB807 If you need other modules, pls feel free to contact us.
I/O Modules	AI810, AI815, AI820, AI830, AI830A, AI835, AI835A, AI843, AI845, AO810, AO810V2, AO815, AO820, AO845, AO845A, DI810, DI811, DI814, DI818, DI830, DI831, DI840, DI880, DI885, DO810, DO814, DO815, DO818, DO840, DO880, DP820 and DP840
Other Terminal Blocks	TU810V1, TU812V1, TU814V1, TU830V1, TU833

---

S800 I/O Module
S800 I/O is a comprehensive, distributed and modular process I/O system that communicates with parent controllers over industry-standard fieldbus technology and therefore can be used with a wide range of process controllers from ABB and other vendors.

Model	Mechanics	Type
AI801	S800L	Analog Input
AI810	S800	Analog Input
AI815	S800	Analog Input
AI820	S800	Analog Input
AI825	S800	Analog Input
AI830A	S800	Analog Input
AI835A	S800	Analog Input
AI843	S800	Analog Input
AI845	S800	Analog Input
AI880A	S800	Analog Input
AI890	S800	Analog Input
AI893	S800	Analog Input
AI895	S800	Analog Input
AO801	S800L	Analog Input
AO810V2	S800	Analog Output
AO815	S800	Analog Output
AO820	S800	Analog Output
AO845A	S800	Analog Output
AO890	S800	Analog Output
AO895	S800	Analog Output

---


---
