Description

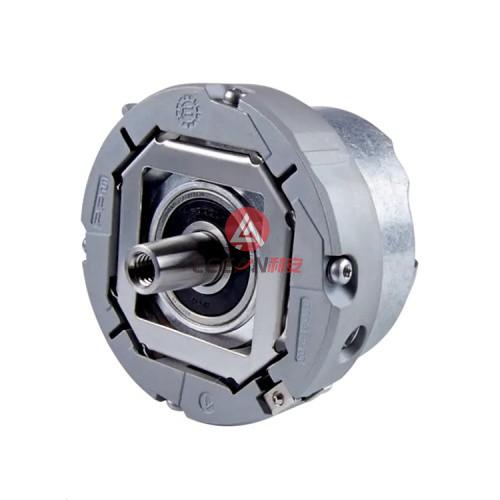

HEIDENHAIN ERN 1300 Series Incremental Rotary Shaft Encoder ERN 1381.062 New Original
Overview
ERN 1300 series
Incremental rotary encoders with integral bearing
High axial tolerance of up to ±0.5 mm
Tapered shaft
Very high positioning accuracy of down to ±16"
Max. operating temperature: 120 °C
Interface: 1 VPP and TTL
Housing diameter ≈ 56 mm
Features
Robust design
The tapered shaft allows the rotary encoder to be directly coupled to the mating shaft. No additional rotor coupling is required. The resulting high rigidity permits higher bandwidths in the control loop, reduces inaccuracy, and simplifies installation.
The stator coupling compensates for play between the motor and the rotary encoder, thereby reliably correcting inaccuracy. Even tilt and axial play can be compensated for. The stator coupling also facilitates easy mounting and is mounting-compatible with the ECN/EQN 1300 and ECI/EBI/EQI 1300.
Commutation signals
Along with incremental output signals, the rotary encoders of this series also output sinusoidal or block commutation signals for direct commutation control. No additional Hall sensors are needed for motor control.
Proven standard
The rotary encoders of this series offer high reliability and perfected technology in a highly robust design. For decades, large numbers of them have successfully proven themselves in industries and elevators around the world.
Specifications
| Brand |
HEIDENHAIN |
| Type | Rotary Encoder |
| Model |
ERN 1381.062 |
| Specifications |

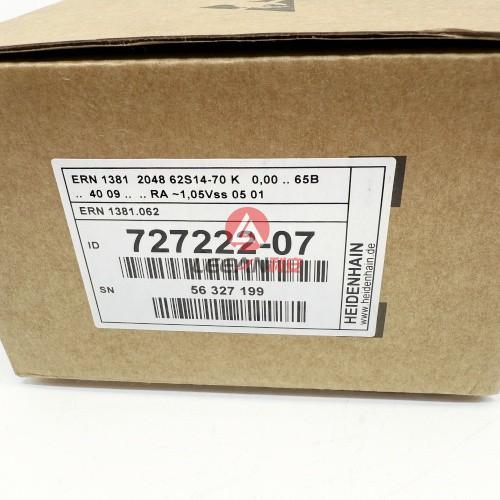

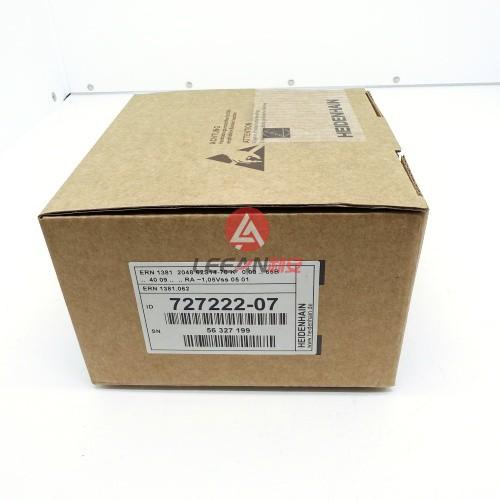

ERN 1381 2048 62S14-70K 0,00..65B ..40 09.. ..RA~1,05Vss 05 01 ERN 1381.062 ID 727222-07 |
| Condition | New |
| Net Weight | 1KG |
| Warranty | One Year |
|
Similar Encoder |
ERN 1381.020 ERN 1381.026 ERN 1381.036 ERN 1381.062 ERN 1387.020 ERN 1387.025 ERN 1387.035 ERN 1387.056 ERN 1387.063 ERN 1387.071 If you need other models, pls feel free to contact us. |

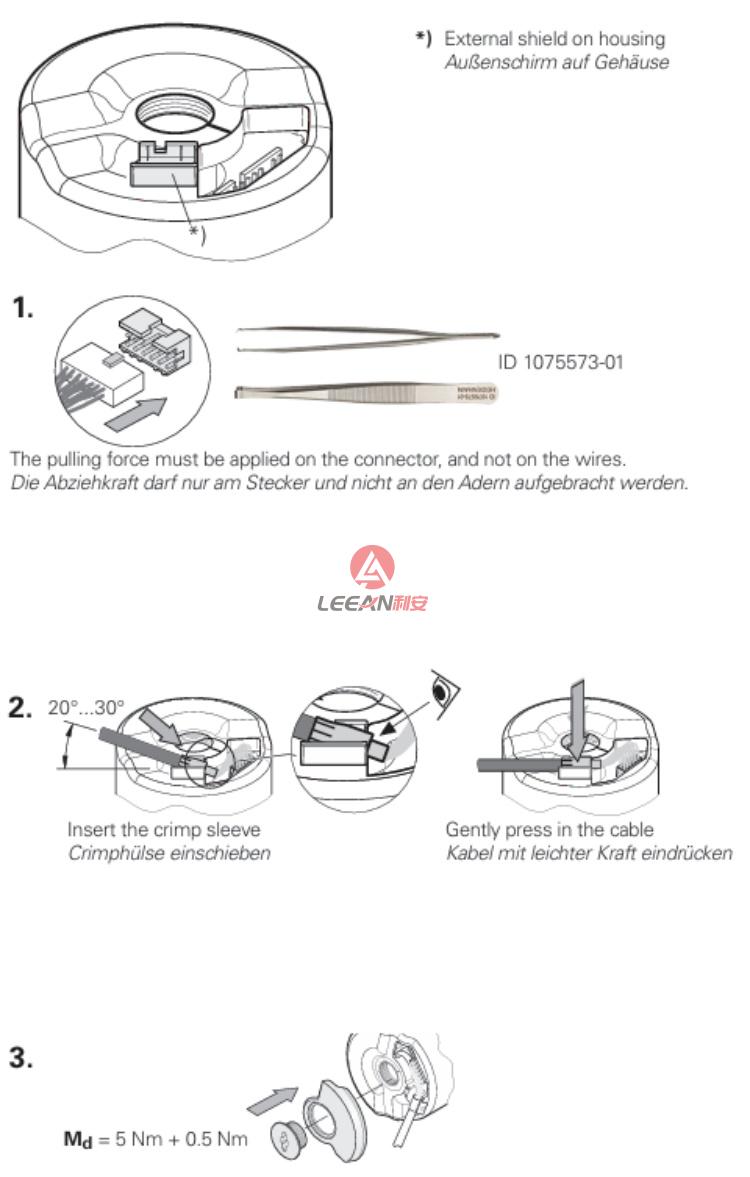

Electrical connection
Items supplied
