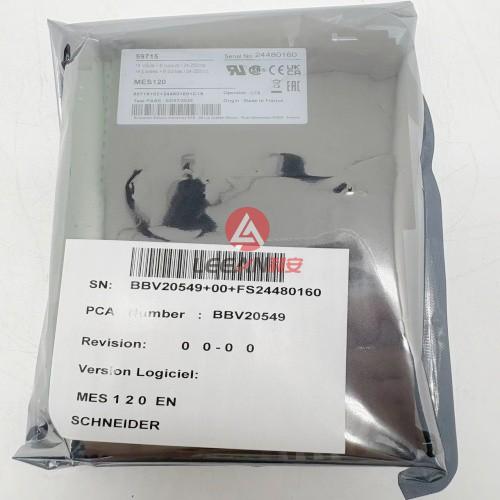

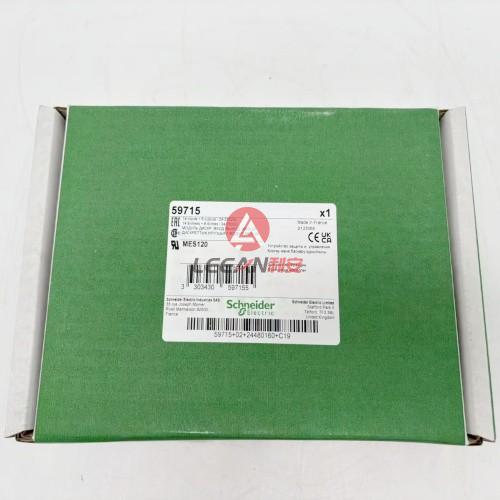

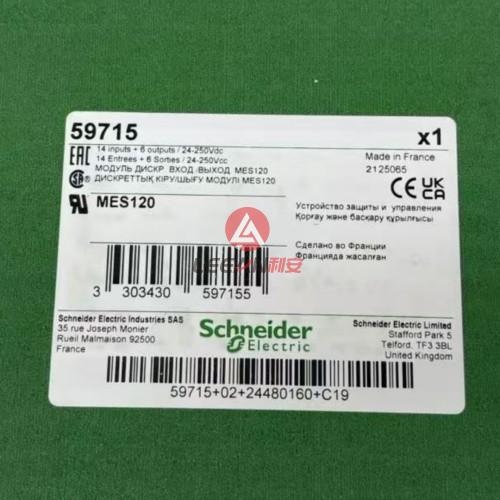

Schneider Electric I/O Module MES120 Easergy Sepam Series 80 Accessories Input Output Modules 59715 New

Description

Schneider Electric I/O Module MES120 Easergy Sepam Series 80 Accessories Input Output Modules 59715 New

Overview

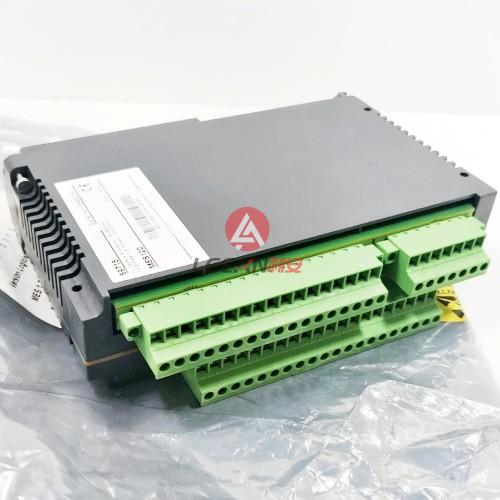

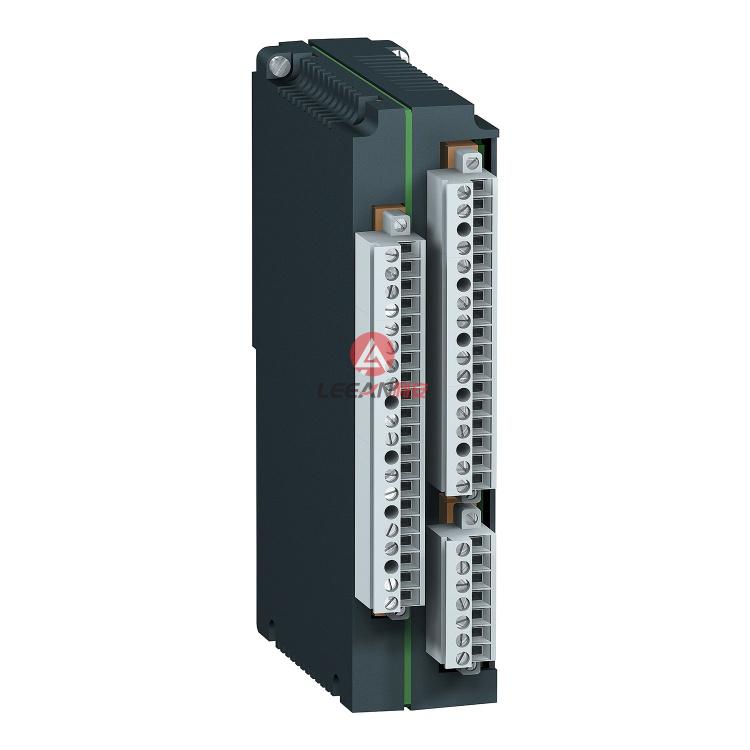

Easergy Sepam Series 80 is range of protection relays designed for substation, feeders, busbars, motors, transformers, generators and capacitor banks. It provides 16 types of digital curent or voltage protection for any distribution system, each one dedicated to a single application. The I/O module MES120 include 14 inputs, 1 control relay output, and 5 annuciation relay output. Mechanical dimensions are 170 mm in height, 40 mm in width and 120 mm in depth.

Easergy Sepam Series 80 is range of metering,protection,control and monitoring relays designed for substation, feeders, busbars, motors, transformers, generators and capacitor banks. It provides 16 types of digital curent or voltage protection for any distribution system, each one dedicated to a single application. The motor - M87 for Sepam series 80 include 42 inputs and 23 outputs. Communication enabled with Modbus port protocol. The device will measure Active and Reactive Power, Power factor, Peak demand power, Energy, harmonic distorsion (I THD & U THD), Voltage and Current.
Sepam series 80 offers 16 types of digital current or voltage protection for any distribution system, each one dedicated to a single application. Models available: Sepam S80, S81, S82, S84, T81, T82, T87, M81, M87, M88, G82, G87, G88, B80, B83, C86 Sepam series 80 includes 16 types of Sepam. One type of Sepam is dedicated to one application. Characteristics: 3 types of UMI 12 analog input: – 8 current inputs and 4 voltage inputs – 4 current inputs and 8 voltage inputs 42 logic inputs 23 relay outputs 2 Modbus communication ports 16 temperature sensor inputs removable memory cartridge with parameters and settings for quick commissioning after replacement Logipam programming software (optional), to program-specific functions.
