Description

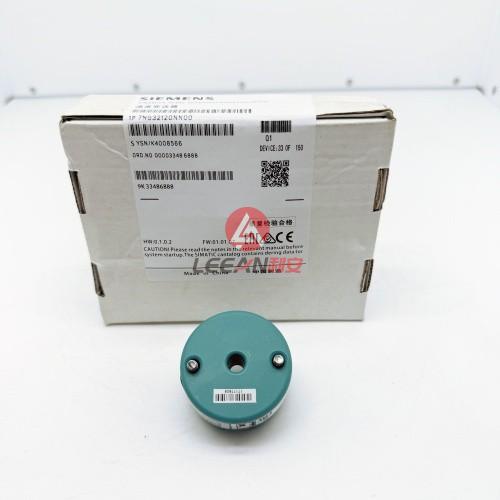

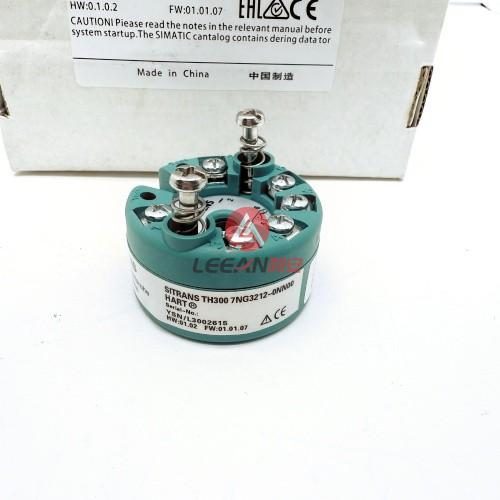

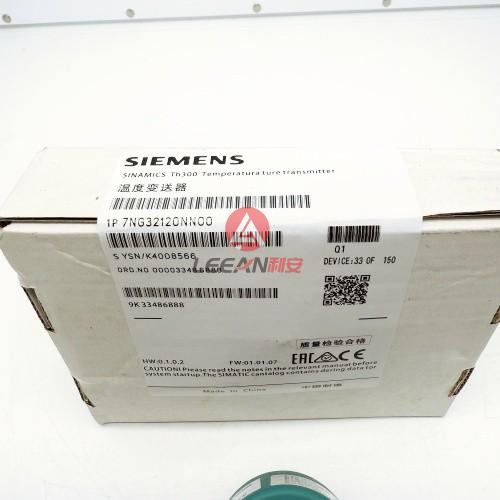

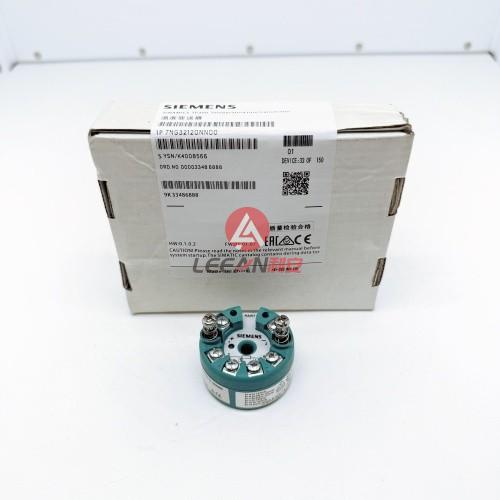

SIEMENS SITRANS TH300 Temperature Transmitter 7NG3212-0NN00 HART PT100 Input 11-35 VDC 4- 20 mA New
Overview
Temperature transmitter SITRANS TH300 For installation in the connection head, Type B (DIN 43729), Two-wire system 4 ... 20 mA, programmable, communication-capable acc. to HART, with electrical isolation Without explosion protection.
Application
SITRANS TH200 and SITRANS TH300 transmitters can be used in all industries. Their compact size means that they can be installed in connection heads of type B, in accordance with DIN43729, or larger. Their input stage means that the following sensor and signal sources can be connected:
● Resistance thermometer
● Thermocouples
● Resistance-type transmitter/potentiometer
● DC voltage sources
The output signal is an output current of 4 to 20 mA that corresponds to the sensor characteristic curve. Explosion-proof transmitters can be installed and operated within potentially explosive atmospheres in compliance with the information given in the relevant certificates and approvals and in these Operating Instructions. The transmitters SITRANS T200-TF / T300-TF and SITRANS T200-TR / T300-TR are parts of the separately certified devices SITRANS TF (7NG313.-*****) and SITRANS TR200 / TR300 (7NG303.-*****). Further information is given in the specific product manuals or product certificates.
Product features
● Transmitter with two-wire technology
● Installation in connection heads of type B, in accordance with DIN 43729 or larger, or on a DIN rail
● With communications capability via the HART protocol rev. 5.9 in SITRANS TH300 or via a proprietary protocol in SITRANS TH200. This enables, for example, the sensor activation and measuring range to be programmed.
● Galvanic isolation
● Intrinsically-safe and non-sparking version for use in hazardous areas.
● Two additional test pins for connecting a multimeter make it possible to measure the current signal without interrupting the current loop.
● Indication of operating status: LED green, flashing red, or red
● Special characteristic curve
● Diagnostic functions in SITRANS TH300: Min/max pointer, runtime meter, simulation
Description
Brand :
SIEMENS
Model :
7NG3212-0NN00
Product type : Differential
Temperature Transmitter
Output:
4-20MA
Country of Origin :
China
Shipping weight :
1 Kg
Other Temperature Transmitters
7NG3211-0AN00
7NG3211-0NN00
7NG3211-1NN00
7NG3212-0AN00
7NG3212-0NN00
7NG3032-1JN00
7NG3211-1JN00
7NG3212-1JN00
7NG3092-1JN00
7NG3032-0NN00
7NG3211-0NN00
7NG3212-0NN00
7NG3092-0NN00
7NG3032-1NN00
7NG3211-1NN00
7NG3212-1NN00
7NG3092-1NN00
7NG3032-0AN00
7NG3211-0AN00
7NG3212-0AN00
7NG3092-0AN00
7NG3032-0JN00
7NG3211-0JN00
7NG3212-0JN00
7NG3092-0JN00
7NG3214-0NN00
7NG3214-0AN00
7NG3033-0JN00-Z
7NG3215-0AN00
7NG3215-0NN00
7NG3242-0BA00
7NG3242-0BA10
7NG3242-0AA00-Z
7NG0410-0BA00-0AA0
7NG0410-1BB00-0NA0
7MH7144-1AA2
7ML5221-1AC11
If you need other models, pls feel free to contact us.

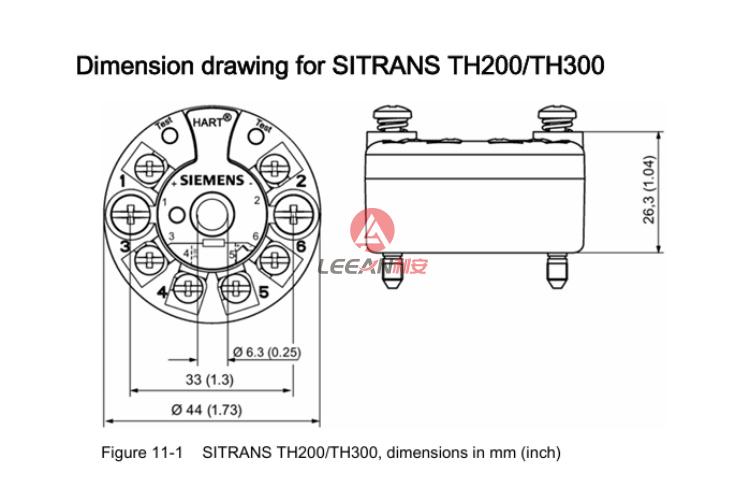

DIMENSIONS and DRAWINGS
