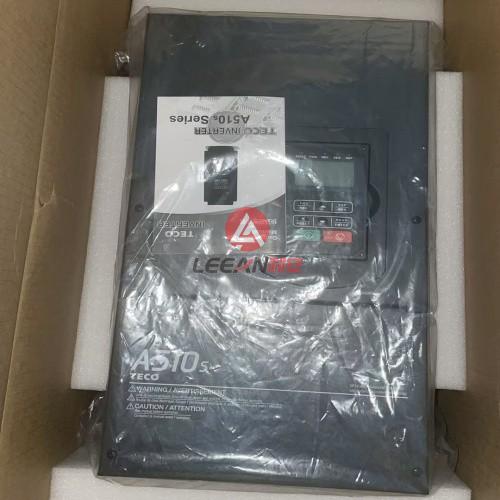

TECO A510 Heavy Duty AC Drives A510-4060-C3-S Frequency Inverter 400V 45KW-55KW New
Description
A510 Heavy Duty AC Drives
1 HP through 400 HP
Features
Control Modes for V/F, V/F with PG feedback, Sensorless Vector, and Closed Loop Vector
Simple PLC Function Built-in
Advanced Regenerative Load Handling Capability
1 to 100 HP (CT), 230V, 50/ 60Hz, 3-Phase
1 to 125 HP(VT), 230V, 50/ 60Hz,3-Phase
1 to 400 HP (CT), 460V, 50/ 60Hz,3-Phase
1 to 400 HP (VT), 460V, 50/ 60Hz,3-Phase
1 to 10 HP (CT/VT), 575V, 50/ 60Hz,3-Phase
15 to 250 HP (CT), 690V, 50/ 60Hz,3-Phase
15 to 270 HP (VT), 690V, 50/ 60Hz,3-Phase
Conformal Coating on PC Boards
LCD Keypad that is Remotely Mountable
Flexible Input/ Output Configurations that Accept Normally Open or Normally Closed Signals
0 to 599 Hz Speed Range
PID Control
Diagnostics Registers for Troubleshooting
Built-in RS485 Modbus Protocol
Enhanced Design for Quiet Motor Operation
Pulse Output and Pulse Follower
Select Between Closed-Loop Speed and Torque Control in Vector Mode
UL, cUL, and CE approved
Details
|
Product Name |
AC Drive |
|
Manufacturer |
TECO |
|
ABB Description |
A510-4060-C3-S |
| Rated Power | 45KW-55KW |
| Voltage | 400V |
|
Weight |
28 kg |
| Other AC Drives |
A510 Heavy Duty AC Drive – U A510-2001-C-U A510-4001-C3-U A510-4100-C3-U A510-6015-C3-U A510-2002-C-U A510-4002-C3-U A510-4125-C3-U A510-6020-C3-U A510-2003-C-U A510-4003-C3-U A510-4150-C3-U A510-6025-C3-U A510-2005-C3-U A510-4005-C3-U A510-4215-C3-U A510-6030-C3-U A510-2008-C3-U A510-4008-C3-U A510-4270-C3-U A510-6040-C3-U A510-2010-C3-U A510-4010-C3-U A510-4300-C3-U A510-6050-C3-U A510-2015-C3-U A510-4015-C3-U A510-4425-C3-U A510-6060-C3-U A510-2025-C3-U A510-4020-C3-U A510-4375-C3-U A510-6075-C3-U A510-2030-C3-U A510-4025-C3-U A510-5001-C3-U A510-6100-C3-U A510-2040-C3-U A510-4030-C3-U A510-5002-C3-U A510-6125-C3-U A510-2050-C3-U A510-4040-C3-U A510-5003-C3-U A510-6150-C3-U A510-2060-C3-U A510-4050-C3-U A510-5005-C3-U A510-6215-C3-U A510-2075-C3-U A510-4060-C3-U A510-5008-C3-U A510-6250-C3-U A510-2100-C3-U A510-4075-C3-U A510-5010-C3-U A510 Heavy Duty AC Drive – UE A510-2001-C-UE A510-4001-C3-UE A510-4100-C3-UE A510-6015-C3-UE A510-2002-C-UE A510-4002-C3-UE A510-4125-C3-UE A510-6020-C3-UE A510-2003-C-UE A510-4003-C3-UE A510-4150-C3-UE A510-6025-C3-UE A510-2005-C3-UE A510-4005-C3-UE A510-4215-C3-UE A510-6030-C3-UE A510-2008-C3-UE A510-4008-C3-UE A510-4270-C3-UE A510-6040-C3-UE A510-2010-C3-UE A510-4010-C3-UE A510-4300-C3-UE A510-6050-C3-UE A510-2015-C3-UE A510-4015-C3-UE A510-4425-C3-UE A510-6060-C3-UE A510-2025-C3-UE A510-4020-C3-UE A510-4375-C3-UE A510-6075-C3-UE A510-2030-C3-UE A510-4025-C3-UE A510-5001-C3-UE A510-6100-C3-UE A510-2040-C3-UE A510-4030-C3-UE A510-5002-C3-UE A510-6125-C3-UE A510-2050-C3-UE A510-4040-C3-UE A510-5003-C3-UE A510-6150-C3-UE A510-2060-C3-UE A510-4050-C3-UE A510-5005-C3-UE A510-6215-C3-UE A510-2075-C3-UE A510-4060-C3-UE A510-5008-C3-UE A510-6250-C3-UE A510-2100-C3-UE A510-4075-C3-UE A510-5010-C3-UE F510 Fan & Pump AC Drive – U F510-2001-C-U F510-2050-C3-U F510-4010-C3-U F510-4150-C3-U F510-2002-C-U F510-2060-C3-U F510-4015-C3-U F510-4215-C3-U F510-2003-C-U F510-2075-C3-U F510-4020-C3-U F510-4250-C3-U F510-2005-C3-U F510-2100-C3-U F510-4025-C3-U F510-4300-C3-U F510-2008-C3-U F510-2125-C3-U F510-4030-C3-U F510-4375-C3-U F510-2010-C3-U F510-2150-C3-U F510-4040-C3-U F510-4425-C3-U F510-2015-C3-U F510-4001-C3-U F510-4050-C3-U F510-4535-C3-U F510-2020-C3-U F510-4002-C3-U F510-4060-C3-U F510-4670-C3-U F510-2025-C3-U F510-4003-C3-U F510-4075-C3-U F510-4800-C3-U F510-2030-C3-U F510-4005-C3-U F510-4100-C3-U F510-2040-C3-U F510-4008-C3-U F510-4125-C3-U F510 Fan & Pump AC Drive – UE F510-2001-C-UE F510-2050-C3-UE F510-4010-C3-UE F510-4150-C3-UE F510-2002-C-UE F510-2060-C3-UE F510-4015-C3-UE F510-4215-C3-UE F510-2003-C-UE F510-2075-C3-UE F510-4020-C3-UE F510-4250-C3-UE F510-2005-C3-UE F510-2100-C3-UE F510-4025-C3-UE F510-4300-C3-UE F510-2008-C3-UE F510-2125-C3-UE F510-4030-C3-UE F510-4375-C3-UE F510-2010-C3-UE F510-2150-C3-UE F510-4040-C3-UE F510-4425-C3-UE F510-2015-C3-UE F510-4001-C3-UE F510-4050-C3-UE F510-4535-C3-UE F510-2020-C3-UE F510-4002-C3-UE F510-4060-C3-UE F510-4670-C3-UE F510-2025-C3-UE F510-4003-C3-UE F510-4075-C3-UE F510-4800-C3-UE F510-2030-C3-UE F510-4005-C3-UE F510-4100-C3-UE F510-2040-C3-UE F510-4008-C3-UE F510-4125-C3-UE L510 Micro AC Drive L510-1P2-H1-U L510-2P5-H3-U L510-202-H1-U L510-401-H3-U L510-1P5-H1-U L510-101-H1-U L510-202-H3-U L510-402-H3-U L510-2P2-H1-U L510-201-H1-U L510-203-H1-U L510-403-H3-U L510-2P5-H1-U L510-201-H3-U L510-203-H3-U E510 NEMA 4 AC Drive E510-2P5-H1FN4S-U E510-205-H3N4-U E510-402-H3N4-U E510-410-H3N4-U E510-2P5-HN4R-U E510-208-H3N4-U E510-403-H3FN4S-U E510-415-H3FN4S-U E510-201-H1FN4S-U E510-210-H3N4-U E510-403-H3N4-U E510-415-H3N4-U E510-201-HN4R-U E510-215-H3N4-U E510-405-H3FN4S-U E510-420-H3N4-U E510-202-H1FN4S-U E510-220-H3N4-U E510-405-H3N4-U E510-425-H3N4-U E510-202-HN4R-U E510-401-H3FN4S-U E510-408-H3FN4S-U E510-203-H1FN4S-U E510-401-H3N4-U E510-408-H3N4-U E510-203-HN4R-U E510-402-H3FN4S-U E510-410-H3FN4S-U E510 Compact AC Drive E510-2P5-H-U E510-215-H3-U E510-403-H3-U E510-430-H3-U E510-201-H-U E510-220-H3-U E510-405-H3-U E510-440-H3-U E510-202-H-U E510-225-H3-U E510-408-H3-U E510-450-H3-U E510-203-H-U E510-230-H3-U E510-410-H3-U E510-460-H3-U E510-205-H3-U E510-240-H3-U E510-415-H3-U E510-475-H3-U E510-208-H3-U E510-401-H3-U E510-420-H3-U E510-210-H3-U E510-402-H3-U E510-425-H3-U If you need other models, pls feel free to contact us. |

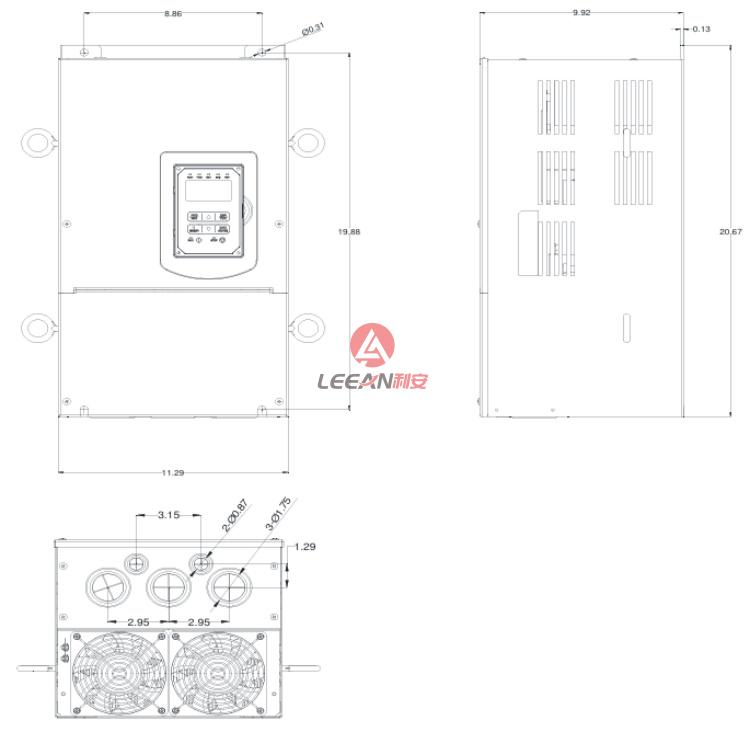

Drawing
