Description

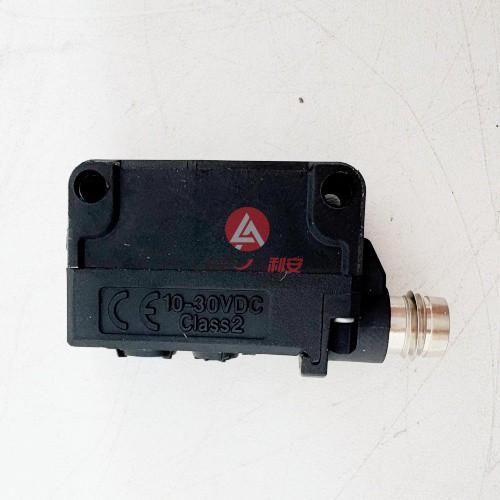

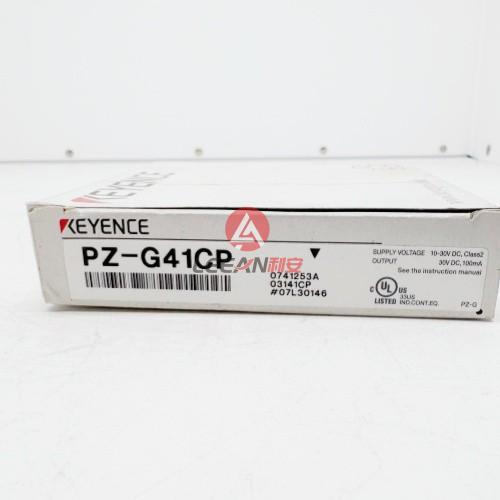

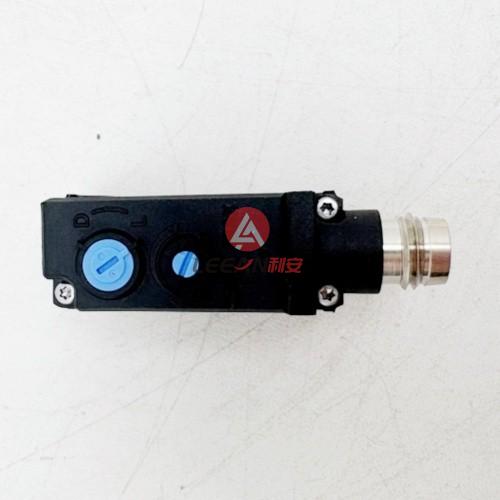

KEYENCE PZ-G Series PNP Built-in Amplifier Photoelectric Sensor PZ-G41CP Square Reflective M8 Connector Type New
Overview
KEYENCE Photoelectric Sensors: PZ-G Series
KEYENCE'S PZ-G Series is ideal for presence / absence detection in countless situations. This series contains a range of sensors including thrubeam, diffuse reflective, and retro-reflective models. All models feature high power LEDs, IP67 / IP69K enclosure ratings, rectangular and threaded barrel types, and quick disconnect options. This wide variety of options allows the PZ-G Series to meet any application needs.
The PZ-G41CP photoelectric sensor stands out as a reliable and powerful component in automated systems. This sensor is designed to detect objects using light beams, making it an essential tool in various applications such as material handling, quality control, and safety monitoring.
The PZ-G41CP photoelectric sensor operates based on the principle of light reflection and absorption. It consists of a light source and a photodetector, which work together to detect the presence or absence of an object. When an object interrupts the light beam, the sensor detects the change and triggers an output signal. This makes it ideal for applications where accurate and real-time detection is crucial.
Features
•MEGA Power for harsh environments and long detection distances
•Easy alignment using the built-in alignment indicators
•Easy installation with innovative one-touch mounting brackets
Product Details
| Brand | KEYENCE |
| Type |
Photoelectric Sensors |
| Model |
PZ-G41CP |
|
Technical Information |
Type:Diffuse Reflective, Long-range Shape:Rectangular Output:PNP Supply Voltage: 10-30V DC,Class 2 Output:30VDC,100mA Cable connection:M8 connector *1 Detecting distance:1 m 3.3'(When detecting 30 x 30 cm 11.81"x11.81"white paper) Light source:Red LED Sensitivity adjustment:1-turn trimmer (230°) Response time:500 µs Operation mode:LIGHT-ON/DARK-ON (switch-selectable) Indicators (LED):Output: Orange LED,Stable operation: Green LED Control output:Open collector output, 30 V max., 100 mA max., Residual voltage: 1 V max. Protection circuit:Reversed polarity, overcurrent protection, surge absorber |
| Net Weight | 0.5KG |
| Warranty | One Year |
| Keyence Products |
PZ-G41CP PZ-G41CN PZ-G41N PZ-G41P PZ-G42N PZ-G42P PZ-G42CP PZ-G42CN PZ-G51CP PZ-G51N PZ-G51P PZ-G51T PZ-G51NR PZ-G51PR PZ-G52N PZ-G52NR PZ-G52P PZ-G52T PZ-G51PR PZ-G102P PZ-G101N PZ-G101P PZ-G61P PZ-G61N PZ-G62N PZ-G62P PZ-G102N PZ-G51N PZ-G52N PZ-G101P PR-FB30N3 PZ2-41 PZ2-41P PZ2-42 PZ2-42P PZ2-42D PZ2-51 PZ2-51P PZ2-52 PZ2-52P PZ2-61 PZ2-61D PZ2-61P PZ2-62 PZ2-62P PZ-101 PZ-V11 PZ-V11P PZ-V31 PZ-V31P PZ-V32 PZ-V32P PZ-V33 PZ-V33P PZ-V35 PZ-V35P PZ-V71 PZ-V71P PZ-V73 PZ-V73P PZ-V75 PZ-V75P IX-1000 IX-080 LR-TB2000C GL-R64H GC-1000 GC-S16 GS-71PC SZ-01S GC-R48 GC-RE10 GC-RS10 GC-S84 If you have any need on SICK products,pls feel free to contact us. |

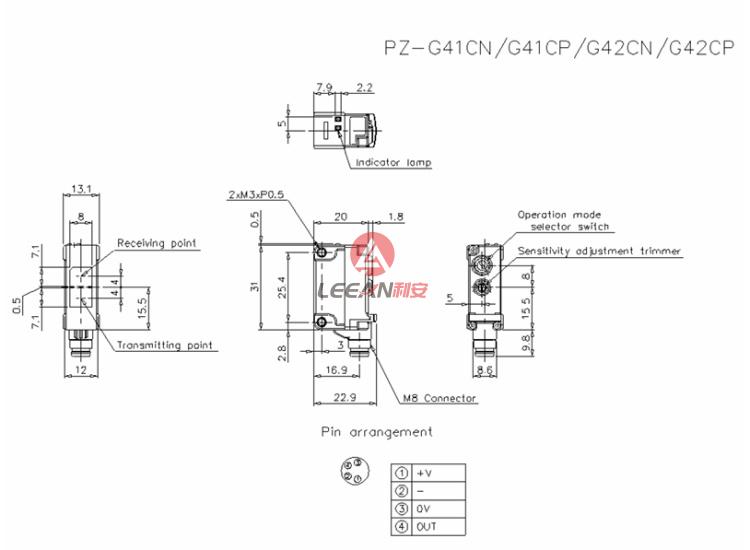

Dimension
