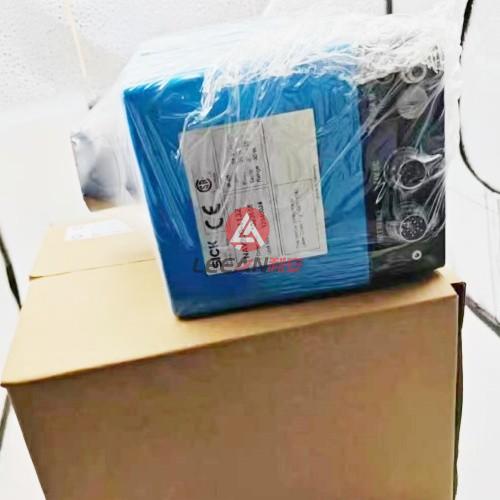

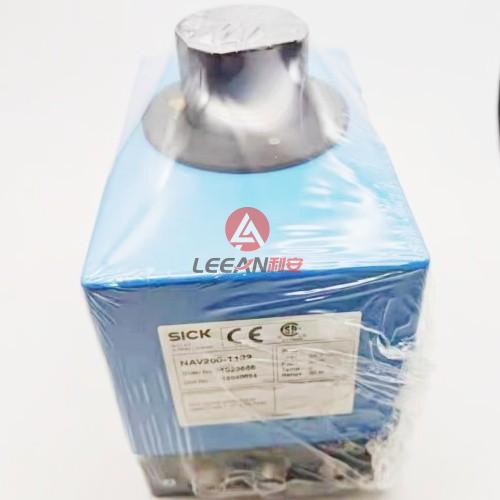

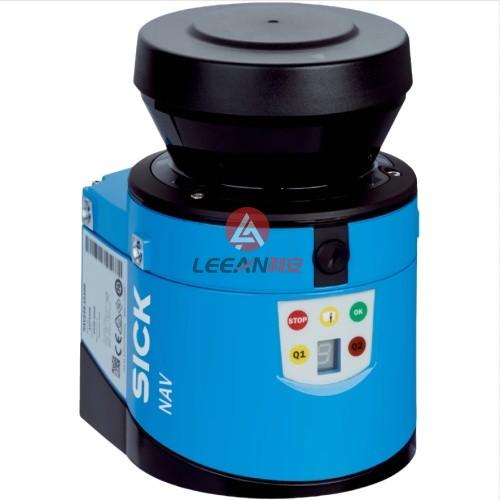

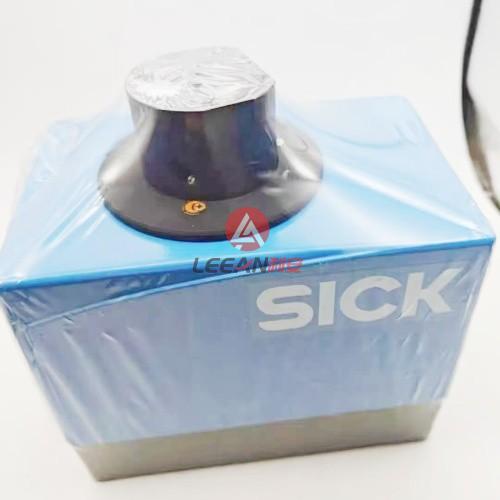

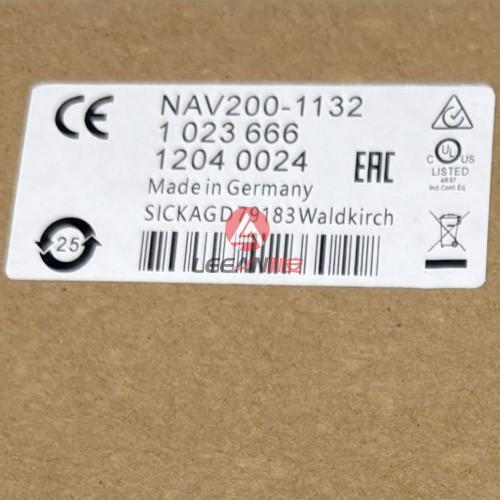

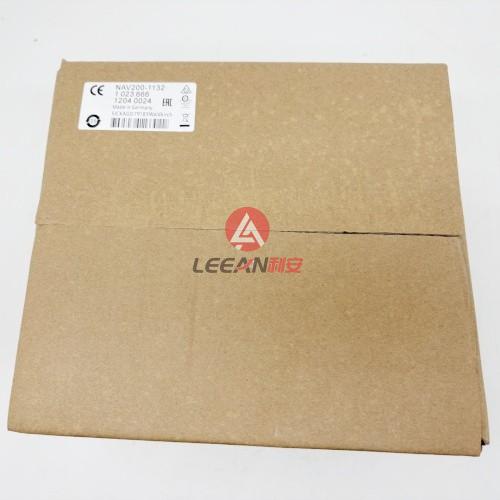

SICK NAV200 2D LIDAR Sensors NAV200-1132 Laser Positioning System Bar Code Reader 1023666 New
Overview
LiDAR sensors
NAV2xx
Sophisticated 2D LiDAR sensor for navigation of automated guided vehicle systems
The NAV2xx 2D LiDAR sensors also work with precision and reliability in small and medium-sized vehicles. Thanks to its integrated heating, excellent vibration resistance, and enclosure rating up to IP 67, the NAV2xx even satisfies requirements for use outdoors or in cold storage. Priced to ensure outstanding value for money, the 2D LiDAR sensors support scanning ranges of up to 30 m on reflectors and up to 50 m on spatial contours. When combined with raw data collection, the technology even allows guided track-controlled vehicles to travel in areas where it is not possible to apply reflector marks (automated truck loading or block storage areas, for example). Integrated evaluation of measurement data reduces computing load in the vehicle computer – ensuring reliable position determination in real time.
The compact and rugged NAV210 and NAV245 sensors are the first choice for medium and smaller automated guided vehicle (AGV) systems. The precise acquisition of ambient data and concurrent output of reflector positions provide the basis for precise and highly dynamic navigation in warehouses (and refrigerated areas as well). If required, the contour or reflector positions or also both data packages can be output together.
Benefits
Reliable position determination and navigation even in highly demanding ambient condition, thanks to the enclosure rating up to IP 67, integrated heating, and vibration resistance
Compact size – suitable even for use in small vehicles
Precise, fast collection of spatial contour data and/or simultaneous determination of reflector data in real time
Integrated evaluation of measured data reduces computing load in the vehicle computer
Excellent flexibility, as guided-track control is possible even in areas without reflector marks
Features
Integrated data evaluation for determining reflector positions
Large working range on reflector (30 m), 10% remission (18 m), spatial contours (50 m)
Large detection angle
High scanning frequency with low angular resolution on reflectors
High resistance to temperature thanks to integrated heating and IP 65 / IP 67
Details
| Brand | SICK |
| Type |
2D LIDAR Sensors |
| Model |
NAV200-1132 |
| Order Code |
1023666 |
|
Technical Information |
Application: Outdoor, Indoor Light source: Infrared (855 nm) Laser clas:s 1, eye-safe Aperture angle:Horizontal 360° Scanning frequency: 8 Hz Working range: 1.2 m ... 28.5 m (28.5 m on reflectors) Scanning range:At 10% remission factor 28.5 m Supply voltage: ≥ 24 V DC, ± 25 % Power consumption: 24 W |
| Net Weight | 1KG |
| Warranty | One Year |
| Country of Origin | Germany |
| Sick 2D LIDAR Sensors |
1052928 NAV350-3232 1103318 NAV210-10100 1023666 NAV200-1132 1074308 NAV245-10100 1090559 NAV245-10100S01 1026515 DT500-A111 1044369 DT50-P1113 1057652 DT35-B15251 1047581 DT50-P1114 1047582 DT50-N1114 1047617 DT50-N1124 1047581 DT50-P1114 1047396 DT50-N1113 1047118 DT50-P1123 1044369 DT50-P1113 7012050 DT50-P1113-CH01 1047397 DT50-N1123 1047616 DT50-P1124 1047314 DT50-P2113 1047398 DT50-N2113 1047361 DL50-P1123 1047400 DT50-N2123 |
| Sick Laser Scanner |
1056430 S32B-3011BA 1051884 S32B-2011EA 1050932 S32B-2011BA 1058000 S32B-0011BA 1028934 S30A-4011BA 1028935 S30A-4011CA 1045650 S30A-4111CP 1045652 S30A-6111CP 1052593 S30A-6111CL 1023546 S30A-6011BA 1023548 S30A-6011EA 1023891 S30A-7011CA 1023891 S30A-7011BA 2026802 S30A-XXXXCA 1026820 S30B-2011BA 1056428 S30B-3011CA S30BS100 RLY3-S300 1099973 If you have any need on SICK products,pls feel free to contact us. |
|
Sick Encoder |
ATM60-A4M12X12 1030004 ATM60-D4H13X13 1030017 ATM60-A4A12X12 1030001 ATM90-AXA0-S01 1033057 ATM60-PAH13X13 1030015 ATM60 P4H13X13 1030013 ATM60-D1H13X13 1030018 ATM60-C1H13X13 1030025 ATM60-A4K12X12 1030002 AD-ATM60-KA3PR 2029225 ATM60-AAK12X12 1030010 ATM60-A4A12X12 1030001 ATM60-A1A0-K20 1034295 ATM60-AAK12X12 ATM60-P1H13X13 ATM60-D4H13X13 ATM60-D1H13X13 ATM90-AXA0-S01 BTF08-A1AM0340 AD-ATM60-SR2DN AD-ATM60-KR1DN AD-ATM60-KR2DN AD-ATM60-KA3PR AD-ATM60-KR3CO
If you have any inquiries of SICK products, pls feel free to contact us.
|

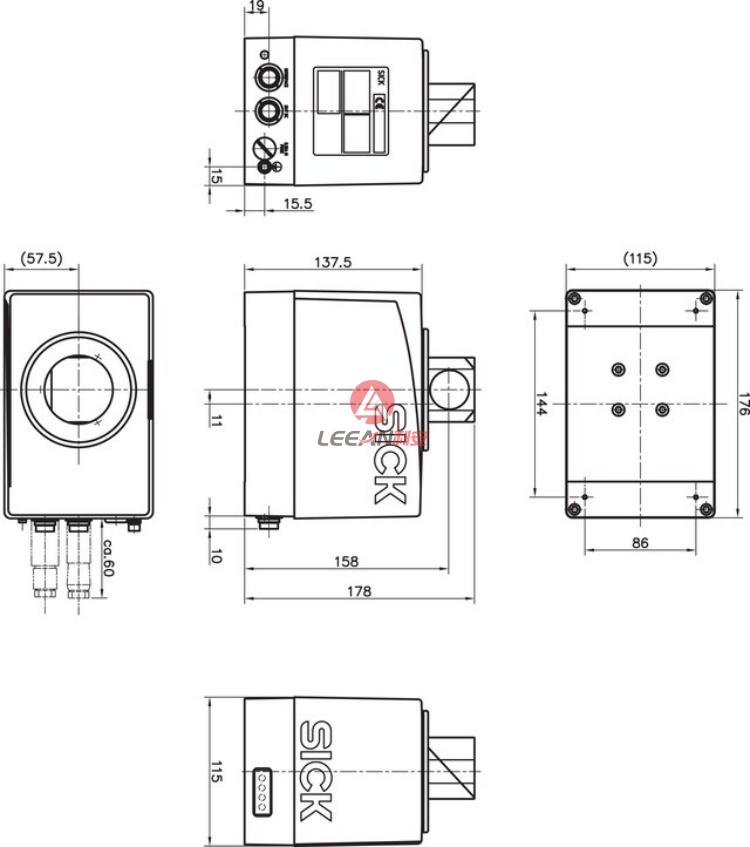

Dimensional drawing
