Description
SIEMENS Auxiliary Switch Block 3RH2911-2XA40-0MA0 Spring-loaded Terminal for 3RT2 Contactors 3RH2 Relays New
Overview
Auxiliary switch, on the front, 4 NO, 53/54, 63/64, 73/74, 83/84, current path: 1 NO, 1 NO, 1 NO, 1 NO, spring-loaded terminal, for contactors 3RT2 and contactor relays 3RH2
Product Details
| Brand | SIEMENS |
|
Article Number (Market Facing Number) |
3RH2911-2XA40-0MA0 |
| Product Description |
Product brandname: SIRIUS Suitability for use: Contactor relay and power contactor Protection class IP on the front: IP20 Ambient temperature ● during storage:-55 ... +80 °C ● during operation:-25 ... +60 °C Mechanical service life (switching cycles) typical: 10 000 000 Electrical endurance (switching cycles) at AC-15 at 230 V typical: 200 000 Contact reliability: one incorrect switching operation of 100 million switching operations (17 V, 1 mA) Contact reliability of auxiliary contacts: 1 faulty switching per 100 million (17 V, 1 mA) Insulation voltage with degree of pollution 3 rated value: 690 V Surge voltage resistance rated value:6 kV |
| Net Weight (kg) | 0,405 Kg |
|
Packaging Dimension |
122,00 x 123,00 x 63,00 MM |
|
SIEMENS Auxiliary Switch Block |
3RH2911-1AA10 3RH2911-1DA11 3RH2911-1HA22 3RH2911-1HA31 3RH2911-1HA12 3RH2911-1HA11 3RH2911-1HA20 3RH2911-1HA13 3RH2911-1HA12 3RH2911-1HA21 3RH2911-1FA22 3RH2911-1FA40 3RH2911-1FC22 3RH2911-1FA04 3RH2911-1MA11 3RH2911-1NF11 3RH2911-1HA22 3RH2911-1GA22 3RH2911-1GA04 3RH2911-1FA40 3RH2911-1GA40 3RH2911-1GA31 3RH2911-2HA01 3RH2911-2HA02 3RH2911-2HA03 3RH2911-2HA10 3RH2911-2HA11 3RH2911-2HA12 3RH2911-2HA13 3RH2911-2HA20 3RH2911-2HA21 3RH2911-2HA22 3RH2911-2HA30 3RH2911-2HA31 3RH2911-1XA40-0MA0 3RH2911-1XA31-0MA0 3RH2911-1XA22-0MA0 3RH2911-1XA04-0MA0 3RH2911-2XA31-0MA0 3RH2911-2XA40-0MA0 3RH2911-2XA22-0MA0 3RH2911-2XA04-0MA0 |
|
SIEMENS Varistor Surge Suppressor |
3RT1916-1DG00 3RT1916-1CB00 3RT1916-1CC00 3RT1916-1EH00 3RT1916-1BC00 3RT1916-1CD00 3RT1916-1BD00 3RT1916-1BB00 3RT1916-1LM00 3RT2916-1BB00 3RT2916-1BC00 3RT2916-1BD00 3RT2916-1BE00 3RT2916-1BF00 3RT2916-1DG00 3RT2916-1EH00 3RT2926-1ER00 3RT2916-1CB00 3RT2916-1CC00 3RT2916-1CD00 3RT2916-1CF00 3RT2916-1LM00 3RT2916-1GA00 3RT2916-1JJ00 3RT2916-1JK00 3RT2926-1CB00 3RT2926-1CC00 3RT2926-1CD00 3RT2926-1CE00 3RT2926-1CF00 3RT2926-1ER00 3RT2926-1ES00 3RT2926-1JJ00 3RT2926-1JK00 3RT2926-1JL00 3RT2926-3AB31 3RT2926-3AP31 3RT2926-3AP31 3RT2926-1MR00 3RT6916-1BB00 3RT6916-1BC00 3RT6916-1BD00 3RT6916-1CB00 3RT6916-1CC00 3RT6916-1CD00 3RT6916-1EH00 3RT6916-1DG00 3RT6926-1CD00 3RT6926-1CC00 3RT6926-1CB00 3RT6926-1CF00 3RT6926-1BD00 3RT6926-1BC00 3RT6926-1BB00 3RT6926-2PA01 3TX7462-3D 24-250Vdc 3TX7462-3G 24-48Vac/24-70Vdc 3TX7462-3H 48-127Vac/70-150Vdc 3TX7462-3J1 27-240Vac/150-250Vdc 3TX7462-3K 240-400Vac 3TX7462-3L 400-600Vac 3TX7462-3R 24-48Vac 3TX7462-3S 48-127Vac 3TX7462-3T 127-240Vac 3TX7462-3U 240-400Vac 3TX7462-3V 400-600Vac |
|
3RT5 Serires Contactors |
3RT5034-1AN20[AC 220V] 3RT5035-1AN20[AC 220V] 3RT5036-1AN20[AC 220V] 3RT5044-1AN20[AC 220V] 3RT5045-1AN20[AC 220V] 3RT5046-1AN20[AC 220V] 3RT5034-1AC20[AC 24V] 3RT5035-1AC20[AC 24V] 3RT5036-1AC20[AC 24V] 3RT5044-1AC20[AC 24V] 3RT5045-1AC20[AC 24V] 3RT5046-1AC20[AC 24V] 3RT5034-1AG20[AC 110V] 3RT5035-1AG20[AC 110V] 3RT5036-1AG20[AC 110V] 3RT5044-1AG20[AC 110V] 3RT5045-1AG20[AC 110V] 3RT5046-1AG20[AC 110V] 3RT5034-1AQ00[AC 380V] 3RT5035-1AQ00[AC 380V] 3RT5036-1AQ00[AC 380V] 3RT5044-1AQ00[AC 380V] 3RT5045-1AQ00[AC 380V] 3RT5046-1AQ00[AC 380V] 3RT5034-1BB40[DC 24V] 3RT5035-1BB40[DC 24V] 3RT5036-1BB40[DC 24V] 3RT5044-1BB40[DC 24V] 3RT5045-1BB40[DC 24V] 3RT5046-1BB40[DC 24V] |
| 3RT6 Serires Contactors |
3RT6023-1AN20【AC220V】 3RT6023-1AG20【AC110V】 3RT6023-1AC20【AC24V】 3RT6023-1AQ00【AC380V】 3RT6023-1BB40【DC24V】 3RT6023-1AG00【AC36V】 3RT6023-1BF40【DC110V】 3RT6024-1AN20【AC220V】 3RT6024-1AG20【AC110V】 3RT6024-1AC20【AC24V】 3RT6024-1AQ00【AC380V】 3RT6024-1BB40【DC24V】 3RT6024-1AG00【AC36V】 3RT6024-1BF40【DC110V】 3RT6025-1AN20【AC220V】 3RT6025-1AG20【AC110V】 3RT6025-1AC20【AC24V】 3RT6025-1AQ00【AC380V】 3RT6025-1BB40【DC24V】 3RT6025-1AG00【AC36V】 3RT6025-1BF40【DC110V】 3RT6026-1AN20【AC220V】 3RT6026-1AG20【AC110V】 3RT6026-1AC20【AC24V】 3RT6026-1AQ00【AC380V】 3RT6026-1BB40【DC24V】 3RT6026-1AG00【AC36V】 3RT6026-1BF40【DC110V】 3RT6027-1AN20【AC220V】 3RT6027-1AG20【AC110V】 3RT6027-1AC20【AC24V】 3RT6027-1AQ00【AC380V】 3RT6027-1BB40【DC24V】 3RT6027-1AG00【AC36V】 3RT6027-1BF40【DC110V】 3RT6028-1AN20【AC220V】 3RT6028-1AG20【AC110V】 3RT6028-1AC20【AC24V】 3RT6028-1AQ00【AC380V】 3RT6028-1BB40【DC24V】 3RT6028-1AG00【AC36V】 3RT6028-1BF40【DC110V】 |
| 3RT Series Contactors |
3RT2023-1BB40 3RT2023-2BB40 3RT2024-1BB40 3RT2024-2BB40 3RT2025-1BB40 3RT2025-2BB40 3RT2026-1BB40 3RT2026-2BB40 3RT2027-1BB40 3RT2027-2BB40 3RT2028-1BB40 3RT2028-2BB40 3RT2526-1BM40 3RT2015-1AP01 3RT2016-1AP01 3RT2017-1AP01 3RT2018-1AP01 3RT2016-1AP02 3RT2017-1AP02 3RT2016-1AN22 3RT2017-1AB01 3RT2016-1AN21 3RT2018-1AN21 3RT5036-1AC20 3RT5036-1AG00 3RT5036-1AG20 3RT5036-1AN20 3RT5036-1AQ00 3RT1026-1BB40 3RT1916-1BB00 3RT1926-1BB00 3RT1926-1DG00 3RT1926-1CD00 3RT1926-1CB00 3RT1926-1BD00 3RT1926-1ER00 |
| 3RB Series Overload Relays |
3RB3016-1RB0 3RB3016-2RB0 3RB3016-1NB0 3RB3016-2NB0 3RB3016-1PB0 3RB3016-2PB0 3RB3016-1SB0 3RB3016-2SB0 3RB3016-1TB0 3RB3016-2TB0 3RB3026-1RB0 3RB3026-2RB0 3RB3026-1NB0 3RB3026-2NB0 3RB3026-1PB0 3RB3026-2PB0 3RB3026-1SB0 3RB3026-2SB0 3RB3026-1QB0 3RB3026-2QB0 3RB3026-1VB0 3RB3026-2VB0 3RB3036-1UB0 3RB3036-2UB0 3RB3036-1WB0 3RB3036-2WB0 3RB3036-1UW1 3RB3036-2UW1 3RB3036-1WW1 3RB3036-2WW1 3RB3046-1UB0 3RB3046-2UB0 3RB3046-1XB0 3RB3046-2XB0 3RB3046-1UW1 3RB3046-2UW1 3RB3046-1XW1 3RB3046-2XW1 3RB3016-1RE0 3RB3016-2RE0 3RB3016-1NE0 3RB3016-2NE0 3RB3016-1PE0 3RB3016-2PE0 3RB3016-1SE0 3RB3016-2SE0 3RB3016-1TE0 3RB3016-2TE0 3RB3026-1RE0 3RB3026-2RE0 3RB3026-1NE0 3RB3026-2NE0 3RB3026-1PE0 3RB3026-2PE0 3RB3026-1SE0 3RB3026-2SE0 3RB3026-1QE0 3RB3026-2QE0 3RB3026-1VE0 3RB3026-2VE0 3RB3036-1UD0 3RB3036-2UD0 3RB3036-1WD0 3RB3036-2WD0 3RB3036-1UX1 3RB3036-2UX1 3RB3036-1WX1 3RB3036-2WX1 3RB3046-1UD0 3RB3046-2UD0 3RB3046-1XD0 3RB3046-2XD0 3RB3046-1UX1 3RB3046-2UX1 3RB3046-1XX1 3RB3046-2XX1 |
| More Relays |
3RU2116-1AB0 3RU2116-1CB0 3RU2116-1GB0 3RU1146-4JB0 3RU1146-4JB1 3RU1146-4HB0 3RU1136-4FB1 3RU1136-4DB0 3RU6116-0BB0 (0.14-0.2A) 3RU6116-0GB0 (0.45-0.63A) 3RU116-0HB0 (0.55-0.8A) 3RU6116-0JB0 (0.7-1A) 3RU6116-0KB0 (09-1.25A) 3RU6116-1BB0 (1.4-2A) 3RU6116-1CB0 (1.8-2.5A) 3RU6116-1DB0 (2.2-3.2A) 3RU6116-1EB0 (2.8-4A) 3RU6116-1FB0 (3.5-5A) 3RU6116-1GB0 (4.5-6.3A) 3RU6116-1HB0 (5.5-8A) 3RU6116-1JB0 (7-10A) 3RU6116-1KB0 (9-12.5A) 3RU6116-4AB0 (11-16A) 3RU6916-3AA01 3RU6116-1AB0 (1.1-1.6A) 3RU5146-4HB0 3RU5146-4JB0 3RU5146-4JB1 3RU5146-4KB0 3RU5146-4LB0 3RU5146-4LB1 3RU5146-4MB0 3RU5156-3HB2 3RU5156-3JB2 3RU5156-3KB2 3RU5156-3LB2 3RU5156-3MB2 3RU5156-3NB2 3RU2126-4AB0 3RU2126-4BB0 3RU2126-4CB0 3RU2126-4DB0 3RU2126-4EB0
3RH2911-1HA22 |
| NOTES |
If you other SIEMENS products, pls feel free to contact us. |

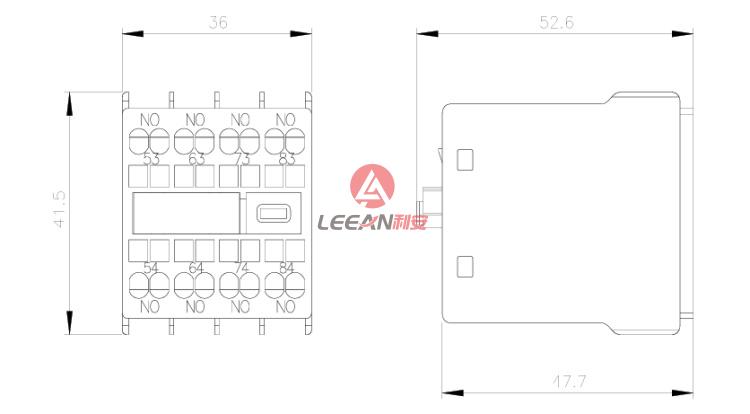

DIMENSIONS
