ABB 3AXD50000010763 Control Panel Keypad Door Mounting Kit DPMP-EXT for ACS580 Drives New
Description
3AXD50000010763 | SmartLinks | ABB

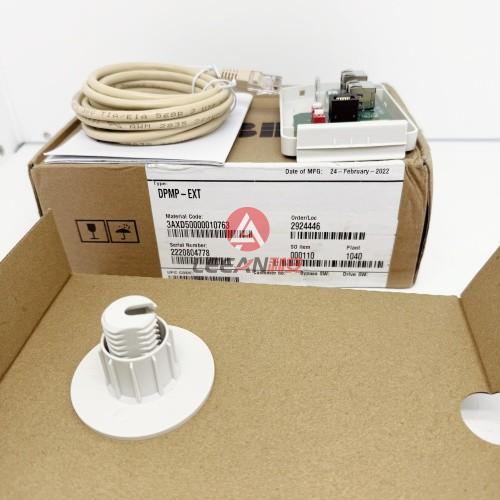

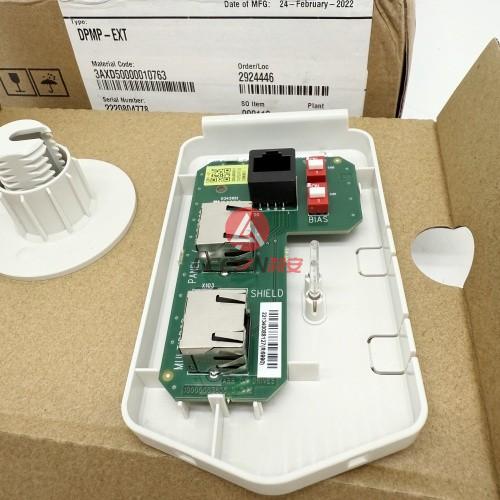

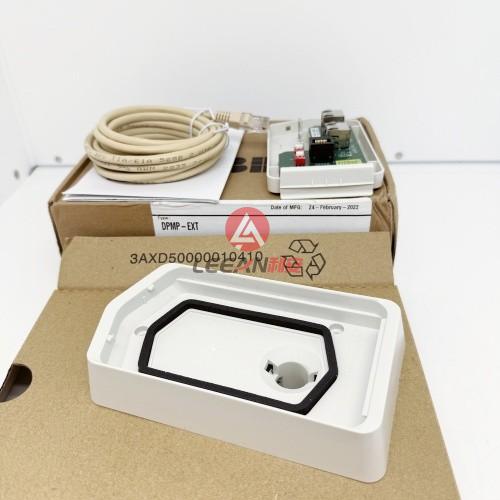

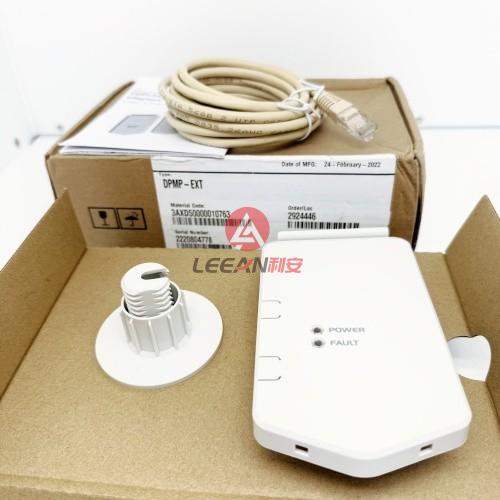

DPMP-EXT is a ready-made kit of the DPMP-02 and CDPI-01, which allows you to mount the DPMP-02 on a door.
Door mounting kit for the panel (for one drive, contains both DPMP-02 and CDPI-01) DPMP-EXT.
The door mounting kit DPMP-EXT is a ready-made kit of the DPMP-02 and CDPI-01.
Specifications
|
Product Name |
AC Drive |
|
Manufacturer |
ABB |
| Model |
DPMP-EXT |
| Order Code |
3AXD50000010763 |

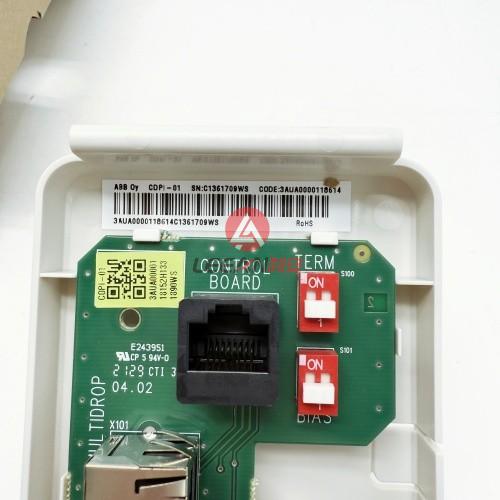

| Keypad | CDPI-01 |
| Order Code | 3AUA0000118614 |
|
Shipping Weight |
2 kg |
ABB AC Drive
ACS580-01-04A6-2 4.6 4.6 0.75 1.0 OFAF000H25 170M1563 JJS-15 3×1.5 + 1.5 14 R1
ACS580-01-06A6-2 6.6 6.6 1.1 1.5 OFAF000H25 170M1563 JJS-15 3×1.5 + 1.5 14 R1
ACS580-01-07A5-2 7.5 7.5 1.5 2.0 OFAF000H25 170M1563 JJS-15 3×1.5 + 1.5 14 R1
ACS580-01-10A6-2 10.6 10.6 3.0 3.0 OFAF000H25 170M1563 JJS-15 3×1.5 + 1.5 14 R1
ACS580-01-017A-2 16.7 16.7 4.0 5.0 OFAF000H25 170M1563 JJS-30 3×2.5 + 2.5 10 R1
ACS580-01-024A-2 24.2 24.2 5.5 7.5 OFAF000H40 170M1565 JJS-40 3×4.0 + 4.0 8 R2
ACS580-01-031A-2 30.8 30.8 7.5 10.0 OFAF000H40 170M1565 JJS-40 3×6.0 + 6.0 8 R2
ACS580-01-046A-2 46.2 46.2 11.0 15.0 OFAF000H63 170M1566 JJS-80 3×10 + 10 6 R3
ACS580-01-059A-2 59.4 59.4 15 20 OFAF000H63 170M1566 JJS-80 3×10 + 10 4 R3
ACS580-01-02A1-4 2.1 2.1 0.75 1.0 OFAF000H4 170M1561 JJS-15 3×1.5 + 1.5 14 R1
ACS580-01-03A0-4 3.0 3.0 1.1 1.5 OFAF000H6 170M1561 JJS-15 3×1.5 + 1.5 14 R1
ACS580-01-03A5-4 3.5 3.5 1.5 2.0 OFAF000H6 170M1561 JJS-15 3×1.5 + 1.5 14 R1
ACS580-01-04A8-4 4.8 4.8 2.2 3.0 OFAF000H10 170M1561 JJS-15 3×1.5 + 1.5 14 R1
ACS580-01-06A0-4 6.0 6.0 3.0 3.0 OFAF000H10 170M1561 JJS-15 3×1.5 + 1.5 14 R1
ACS580-01-07A6-4 7.6 7.6 4.0 5.0 OFAF000H16 170M1561 JJS-15 3×2.5 + 2.5 14 R1
ACS580-01-012A-4 12.0 12.0 5.5 7.5 OFAF000H16 170M1561 JJS-15 3×2.5 + 2.5 14 R1
ACS580-01-014A-4 14.0 14.0 7.5 10.0 OFAF000H25 170M1563 JJS-30 3×2.5 + 2.5 12 R2
ACS580-01-023A-4 23.0 23.0 11.0 15.0 OFAF000H32 170M1563 JJS-30 3×6 + 6 10 R2
ACS580-01-027A-4 27.0 27.0 15.0 20.0 OFAF000H40 170M1565 JJS-40 3×10 + 10 8 R3
ACS580-01-034A-4 34.0 34.0 18.5 25.0 OFAF000H50 170M1565 JJS-60 3×10 + 10 8 R3
ACS580-01-044A-4 44.0 44.0 22.0 30.0 OFAF000H63 170M1566 JJS-60 3×10 + 10 6 R3
ACS580-01-02A7-6
ACS580-01-03A9-6
ACS580-01-06A1-6
ACS580-01-09A0-6
ACS580-01-011A-6
ACS580-01-017A-6
ACS580-01-022A-6
ACS580-01-027A-6
ACS580-01-032A-6
